Walk into any woodworking or panel-processing unit running a sanding and calibrating machine, and you'll notice something almost immediately: a fine haze hanging in the air near the outfeed, a dusting of powder settling on every flat surface, and — if the extraction system isn't doing its job — a machine operator who's had to wipe down their control panel three times before lunch.

That last detail isn't a minor inconvenience. It's a warning sign.

Dust extraction on a sanding and calibrating machine isn't a "nice-to-have" accessory that gets bolted on to satisfy an inspector or tick a compliance box. It's a core part of how the machine is supposed to run. Skip it, or run it half-heartedly, and you're not just making a mess — you're shortening the life of your equipment, putting your people at risk, and quietly burning money you didn't know you were losing.

Let's talk about why.

The Two Big Problems: Environment and Electronics

1. Dust is genuinely harmful to the environment

Wood dust — especially the fine, sub-5-micron particulate that calibrating heads and wide-belt sanders throw off in huge quantities — doesn't just settle on the floor and stay there. It becomes airborne particulate matter that travels well beyond the factory walls if it isn't captured at the source.

A few things make this worse than it sounds:

• It's a respiratory hazard. Fine wood dust is classified by health authorities in multiple countries as a carcinogen with prolonged exposure, and it's a well-documented trigger for asthma, bronchitis, and chronic respiratory irritation in workers who breathe it in day after day.
• It's combustible. Wood dust suspended in air, in the right concentration, is an explosion risk. This isn't theoretical — dust explosions in wood processing and furniture units are a recurring cause of serious industrial accidents worldwide.
• It doesn't stay put. Uncontrolled dust drifts into surrounding communities, settles on nearby vegetation and water sources, and contributes to particulate air pollution — which is exactly why environmental regulations in most manufacturing hubs now mandate extraction systems as a condition of operating a license.

2. Dust is quietly destroying your electrical and electronic systems

This is the part that catches a lot of plant managers off guard, because the damage isn't dramatic — it's slow, cumulative, and invisible until something fails.

Sanding Machine, Calibrating Machine, DD Saw, and other wood working machinery - They are not simple mechanical boxes anymore. They're loaded with:

• Variable Frequency Drives (VFDs) controlling motor speed

• PLC-based control panels

• Sensors tracking thickness, feed rate, and belt tension

• Servo motors and encoders

• Cooling fans on motors and control cabinets




Fine wood dust is an enemy to every single one of these. Here's how it does its damage

• It clogs cooling paths. Motors, VFDs, and control panels rely on airflow to dissipate heat. Dust builds up on heat sinks and fan blades, insulating components that need to stay cool, causing overheating and premature failure.
• It's conductive when combined with moisture. Dust that settles inside a control cabinet, especially in humid environments, can create conductive bridges across PCB tracks and terminal blocks — leading to short circuits, erratic signals, or complete board failure.
• It causes mechanical wear. Dust infiltrating bearings, ball screws, linear guides, and encoder assemblies acts like a very fine grinding compound, accelerating wear on precision components that are expensive to replace.
• It triggers false sensor readings. Optical and proximity sensors coated in dust give inconsistent readings, which on a calibrating machine translates directly into inconsistent thickness tolerances — the exact thing the machine exists to prevent.

What Happens to All That Collected Dust? Can It Be Reused?

Here's the encouraging part. Once dust extraction is doing its job properly, you're left with large volumes of collected wood dust and shavings — and this material is far from waste. In fact, it's a genuinely valuable by-product if it's handled right.

Some of the most common and practical reuse routes:

• Particleboard and MDF manufacturing. Fine wood dust and shavings are a key raw material input for particleboard, MDF, and other engineered wood panels. Many larger operations sell their collected dust directly to panel manufacturers, or even feed it back into their own panel line if they run one.
• Briquette and pellet fuel production. Compressed wood dust briquettes and pellets are widely used as a biomass fuel — in boilers, furnaces, and even for domestic heating. This is one of the most popular reuse paths because it converts a disposal cost into a revenue stream.
• Biomass energy generation. Beyond briquettes, collected dust can be used directly as boiler fuel to generate steam or process heat within the same facility, cutting down on other fuel costs.
• Composting and soil amendment. Untreated wood dust (from raw timber, not painted or chemically treated stock) can be composted and used as a soil conditioner or mulch, particularly in agricultural or horticultural applications.
• Animal bedding. Coarser wood shavings collected from the process are commonly reused as bedding material for livestock and poultry farms.
• Particle-based products. Some units use finer sawdust in the manufacture of wood-plastic composites, adhesive fillers, or even as an ingredient in certain packaging materials.

A word of caution here: reuse depends heavily on what's being sanded. Dust from raw, untreated timber has far more reuse potential than dust from painted, laminated, or chemically treated boards — the latter often needs to be handled as industrial waste due to the coatings and resins involved. A good extraction system, paired with proper segregation practices, makes it much easier to keep "clean" dust separate from contaminated dust — which directly affects how much of it you can actually monetize or reuse.

Types of Dust Collectors: What's Actually Used in Industry

Dust collectors aren't a one-size-fits-all category — they're grouped by how they separate dust from air, and most serious operations run more than one type together, in stages. Here's the full picture, from the simplest setups to what a large sanding and calibrating line actually uses.

1. Single-Stage Dust Collectors

The simplest design, common in small shops. Dust-laden air is pulled through an impeller/fan straight into a filter bag or canister, where dust and chips collect together in the same bag. Cheap and effective for basic chip pickup, but fine dust passes through the fan first, which can wear down impeller blades over time. Not suited to the volume a sanding and calibrating line produces.

2. Two-Stage (Cyclone-Assisted) Collectors

A step up from single-stage. Air passes through a cyclone separator before reaching the fan, so heavier chips and dust drop out early, and only lighter, finer particles reach the fan and final filter. This protects the motor and reduces how often filters need cleaning — a common upgrade for small-to-mid commercial shops.

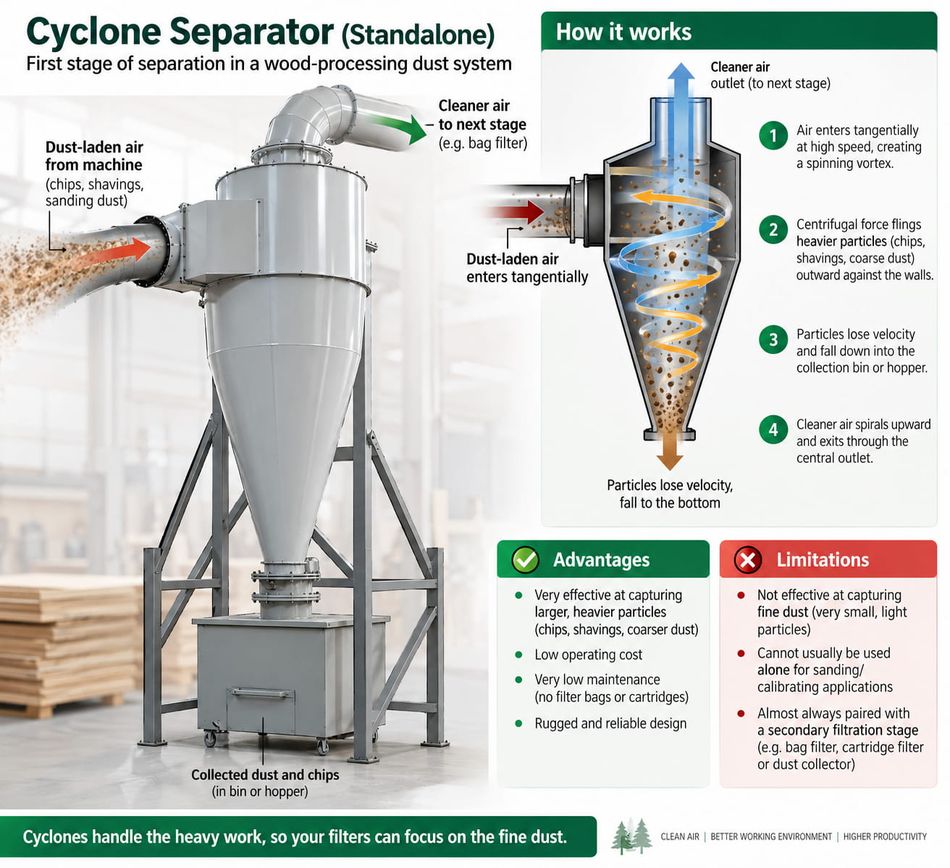

3. Cyclone Separators (Standalone)

This is usually the first stage of separation in a proper wood-processing dust system.

How it works: Dust-laden air enters the cyclone tangentially, creating a spinning vortex. Centrifugal force flings the heavier dust and chip particles outward against the cyclone's walls, where they lose velocity and fall down into a collection bin or hopper below. The cleaner air spirals upward and out through a central outlet.

Where it fits: Cyclones are excellent at capturing larger, heavier particles — chips, shavings, coarser sanding dust — cheaply and with very low maintenance, since there are no filter bags or cartridges to clean or replace. Their weakness is fine dust: very small, light particles don't have enough mass for centrifugal force to separate effectively, so cyclones are rarely used alone in a sanding/calibrating application. They're almost always paired with a secondary filtration stage.

4. Baghouse (Fabric Filter) Collectors

The standard for medium-to-large woodworking facilities before pulse-jet cleaning became common. Air passes through banks of long fabric filter bags that trap fine dust on the surface while clean air exits. Cleaning happens either by mechanically shaking the bags at intervals, or via a reverse-air pulse that pushes air backward through the bags to dislodge the dust cake. Reliable, but generally requires brief pauses in airflow to clean effectively.

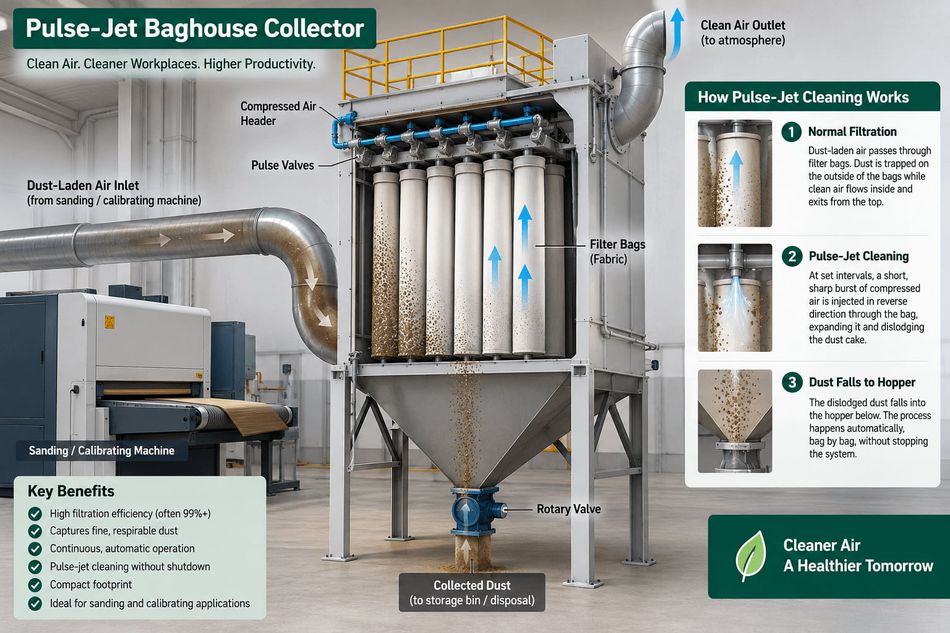

5. Pulse-Jet Baghouse Collectors

This is the workhorse for fine dust capture in most modern sanding and calibrating setups.

How it works: Dust-laden air passes through a bank of fabric filter bags (or cartridges) inside a housing. The bags trap fine particulate on their surface while clean air passes through and exits. Over time, dust builds up on the bags and restricts airflow — so at set intervals, a short, sharp burst of compressed air ("pulse jet") is fired down through each bag in reverse, dislodging the accumulated dust cake so it falls into the hopper below. This happens automatically, bag by bag, without needing to shut the system down.

Where it fits: Pulse jet collectors are extremely effective at capturing fine, respirable dust — exactly the kind a calibrating machine's abrasive belt generates in bulk. They offer high filtration efficiency (often 99%+), continuous operation, and relatively compact footprints, which is why they're the standard choice for most sanding line extraction systems today.

6. Cartridge Collectors

A close cousin of the baghouse, using pleated cartridge filters instead of fabric bags. The pleating packs far more filtering surface area into a smaller footprint, which makes cartridge collectors attractive where floor space is tight. They're cleaned the same way pulse-jet baghouses are — short blasts of compressed air knocking dust loose into a hopper.

7. Wet Dust Collectors / Scrubbers

Less common in general woodworking, but used where combustible dust risk is a serious concern — heavy MDF or particleboard processing, for instance. Water or a liquid spray captures dust particles as air passes through, which eliminates the fire/explosion risk of dry collection entirely. The trade-off is dealing with wet sludge disposal instead of dry, reusable dust.

8. Ambient (Portable) Air Cleaners

Not a point-source extractor at all — these units hang from the ceiling or sit on the floor and continuously filter the general shop air, catching the fine dust that inevitably escapes machine-side capture. They're a supplementary layer, not a primary system, but a valuable one in any shop where operators spend hours near the machines.

What "Baloon" Type Usually Means

Worth clarifying, since it's a common point of confusion: there's no standard industrial category officially called a "balloon" collector. It's almost always shorthand for one of two things — a basic, non-pulse-jet bag filter whose fabric visibly inflates like a balloon as it fills with air and dust, or a simple inflatable collection bag on a portable, point-of-source extractor. Both fall under the single-stage or baghouse categories above.

What a Real Sanding and Calibrating Line Actually Uses

In practice, industrial setups layer these systems rather than picking just one: point-source hoods on the machine → ducted into a cyclone for coarse separation → feeding a pulse-jet baghouse or cartridge collector for fine dust capture → clean air exhausted, with an ambient air cleaner running in the background for anything that escapes. This combination balances low maintenance on the coarse side with high-efficiency fine dust capture on the other — and as a bonus, keeping the coarse and fine dust streams separate makes both easier to reuse downstream.

The Bottom Line

Dust extraction on a sanding and calibrating machine sits at the intersection of three things that matter to any serious manufacturing operation: worker health, equipment longevity, and environmental compliance. Treating it as optional is a false economy — the cost of a control panel replacement, a delayed calibration job due to sensor drift, or a regulatory penalty will always outweigh the cost of running proper extraction from day one.

And the upside doesn't stop at "problem avoided." A well-designed system turns what used to be a disposal headache into a genuine by-product stream — fuel, panel-board raw material, animal bedding — that can offset operating costs rather than add to them.

Get the extraction right, and the machine runs cleaner, lasts longer, and the air around it — inside the factory and outside it — stays a little easier to breathe.
