Dust Collector, Air Compressor & Air Dryer: Essential Accessories for Plywood Calibrating & Sanding Machines | KEIPL

A plywood calibrating machine or a wide belt sanding machine is often bought and evaluated on its own specifications — motor power, roller configuration, panel width, automation level. But the machine's real-world performance, safety, and service life depend just as much on three supporting accessories that rarely get the same attention at the buying stage: the dust collector, the air compressor, and the air dryer.

These three work together as a single support system. Miss one, or undersize it, and the effects show up later — as electrical faults, inconsistent sanding pressure, or a machine that simply doesn't last as long as it should. This blog looks at each one in detail: what it does, why it matters specifically for calibrating and sanding operations, and what to watch for when specifying one.

---

Why These Three Accessories Matter More Than They Seem

Calibrating and sanding machines have two things going on simultaneously that most other plywood-line machines don't: they generate large volumes of fine wood dust as a direct by-product of their core operation, and many of their moving parts — pressure rollers, belt tensioners, clamps, oscillation systems — are driven pneumatically rather than mechanically.

This combination creates two dependencies. First, the dust has to go somewhere, continuously, without settling on or inside the machine. Second, the pneumatic systems need a constant, clean, moisture-free supply of compressed air to function accurately and consistently. The dust collector addresses the first dependency. The air compressor and air dryer, working together, address the second. None of the three is optional if the machine is expected to run at rated capacity, day after day, without unplanned downtime.

---

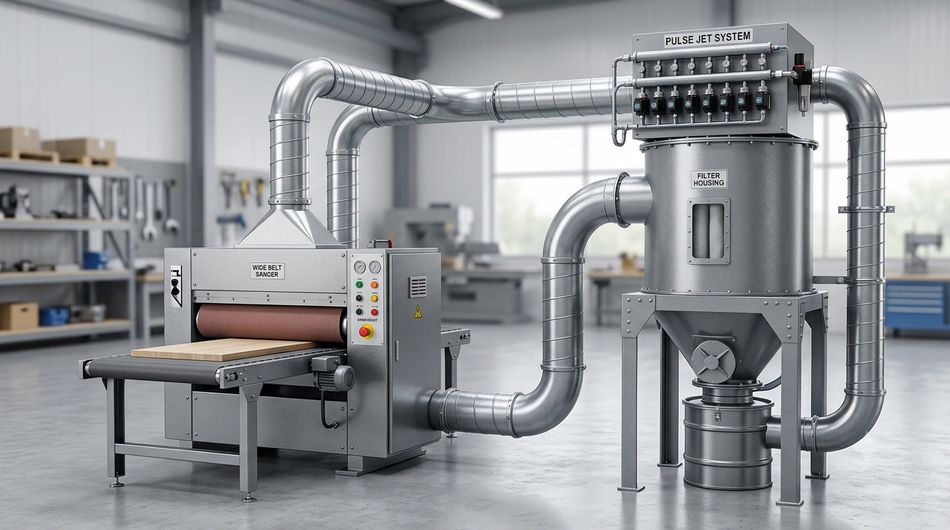

1. Dust Collector

What It Does

A dust collector is a suction-based extraction system connected to the calibrating or sanding machine via ducting, typically positioned close to the sanding head or calibrating rollers where dust generation is highest. It draws dust-laden air away from the machine through a fan or blower, passes it through a filtration stage — commonly a cyclone separator followed by a bag filter or cartridge filter — and either recirculates the cleaned air or vents it outside the shop floor, depending on the system design.

Why It Matters for Calibrating and Sanding Specifically

Calibrating and sanding are, by nature, material-removal processes. Every pass across the panel removes a layer of wood, and that removed material becomes fine, airborne dust — far finer and more voluminous than the dust generated at earlier stages like sawing or trimming. Left unmanaged, this dust:

• Settles inside the machine's electrical enclosure, coating control panels, PLC boards, sensors, and motor windings. Fine wood dust is conductive enough in humid conditions to cause short circuits, and abrasive enough to accelerate wear on moving contacts and bearings.
• Contaminates the panel surface as it re-settles, working its way back onto freshly calibrated or sanded panels and interfering with the next finishing step — lamination, painting, or veneer bonding.
• Creates a fire and health hazard. Fine wood dust suspended in air is combustible and, in enclosed spaces without adequate extraction, can pose a dust explosion risk. It is also a respiratory hazard for machine operators exposed to it continuously.
• Reduces visibility and workspace comfort, making it harder for operators to monitor the panel and the machine closely.

What to Look For

The dust collector's extraction capacity (measured in CFM — cubic feet per minute) needs to be matched to the machine's dust generation rate, which depends on panel width, feed speed, and the number of sanding/calibrating heads. Undersizing the dust collector is a common mistake — it may handle light loads adequately but fall behind during continuous, high-throughput operation, allowing dust to accumulate inside the machine over time even though the system appears to be "working."

---

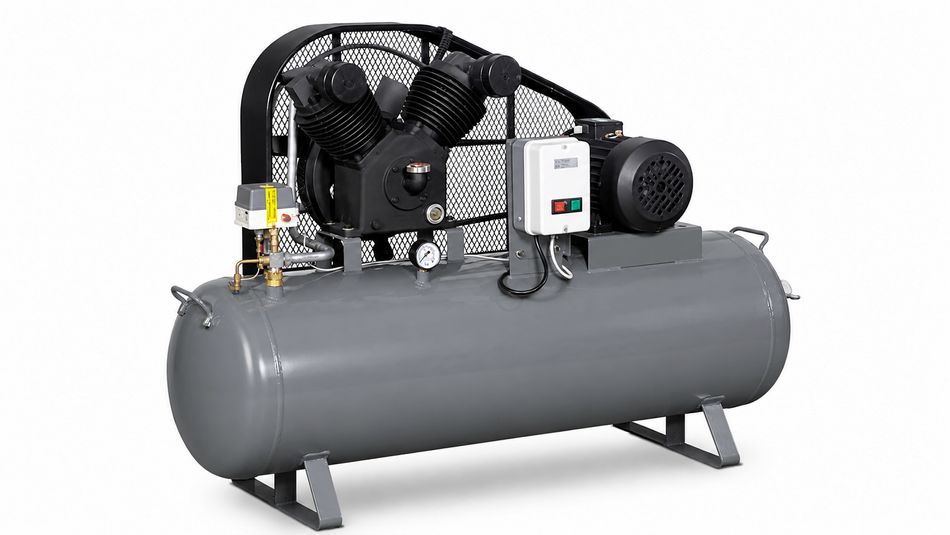

2. Air Compressor

What It Does

The air compressor generates the compressed air that powers the machine's pneumatic systems. In a typical calibrating or sanding machine, this includes pressure rollers that press the abrasive belt or calibrating drum against the panel, belt tensioning and tracking mechanisms, pneumatic clamps, and various automated positioning functions.

Why It Matters for Calibrating and Sanding Specifically

The accuracy of both calibration and sanding depends heavily on consistent, controlled pressure being applied across the full width of the panel. This pressure is what determines how much material is removed and how evenly. If the compressed air supply fluctuates — because the compressor is undersized, poorly maintained, or shared across too many machines on the shop floor without adequate reserve capacity — the result is inconsistent pressure at the roller, which shows up directly as uneven thickness after calibration or an uneven finish after sanding.

An undersized compressor also struggles to keep pace when multiple pneumatic functions activate at once, leading to pressure drops mid-cycle, slower response times, and — over time — additional wear on the compressor itself as it runs harder and more frequently to keep up with demand.

What to Look For

Compressor capacity should be sized with the machine manufacturer's specified air consumption (in CFM at a given pressure, usually measured in PSI or bar) as the baseline, with additional headroom if the compressor will also serve other pneumatic equipment on the floor. Reliability and duty cycle matter as much as raw capacity — a compressor that is undersized for continuous industrial use will show increased maintenance needs and shorter service life even if its rated output looks adequate on paper.

---

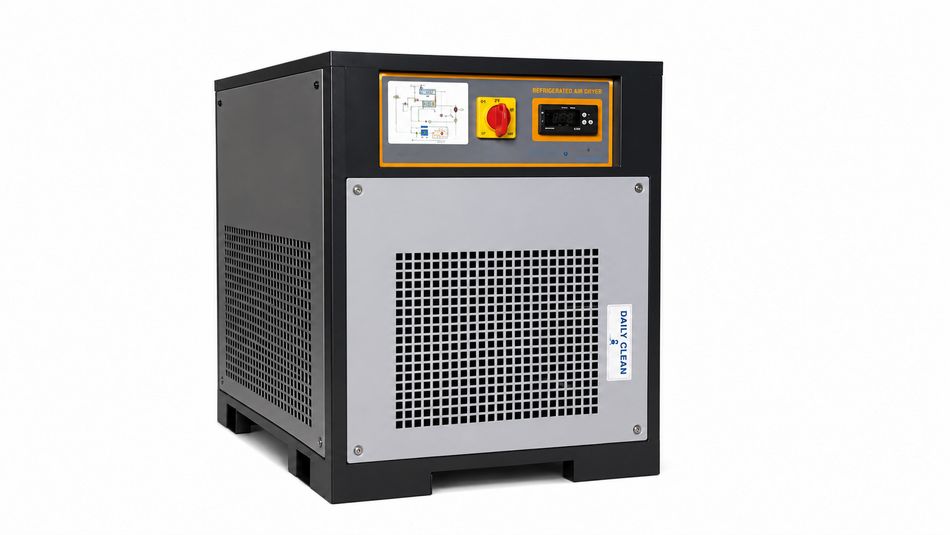

3. Air Dryer

What It Does

Compressed air, as it comes off an air compressor, always carries moisture — water vapour drawn in from the ambient air and concentrated during compression. An air dryer removes this moisture before the compressed air reaches the machine's pneumatic components, typically using refrigerant-based cooling, desiccant absorption, or membrane separation, depending on the dryer type.

Why It Matters for Calibrating and Sanding Specifically

Without an air dryer, moisture travels downstream with the compressed air into the machine's pneumatic valves, cylinders, and — critically — anywhere this air-line runs close to or interacts with the machine's electrical control system. Over time, this moisture:

• Condenses inside pneumatic valves and cylinders, causing corrosion, sticking, and inconsistent actuation — which again shows up as inconsistent pressure at the roller or belt.
• Damages sensitive electrical components in machines where the pneumatic and electrical systems are integrated closely, particularly in humid climates or during monsoon months across much of India, when ambient moisture levels are already high.
• Shortens the service life of seals, valves, and fittings throughout the pneumatic circuit, increasing maintenance frequency and unplanned downtime.

What to Look For

The right air dryer depends on how dry the air needs to be for the specific pneumatic components in use, and on the ambient humidity conditions of the plant. A refrigerant dryer is adequate for many general industrial applications, while desiccant dryers provide a lower dew point for more moisture-sensitive systems. What matters most is that the dryer's capacity is matched to the compressor's output — an undersized dryer paired with an adequately sized compressor still allows moisture to pass through unchecked during peak demand.

---

How the Three Work Together

It's worth restating the core relationship here, because it's easy to treat these as three separate purchase decisions rather than one system:

Sizing all three correctly, together, and specifying them against the actual duty cycle of the machine — not just its nameplate capacity — is what determines whether a calibrating or sanding machine runs at its rated performance year after year, or starts showing problems within the first eighteen months.

---

In Summary

The dust collector, air compressor, and air dryer are not peripheral add-ons to a plywood calibrating or sanding machine — they are the support system that keeps the machine's core function, precision material removal, working the way it was designed to. A well-specified machine paired with an undersized or missing accessory in any one of these three areas will underperform, regardless of how advanced the main machine is.

At Kumar Engineering India Pvt. Ltd., we help plywood manufacturers across India specify this complete system — not just the calibrating or sanding machine itself, but the dust collection, compressed air, and air drying capacity needed to run it reliably under real production conditions.
