If you have read our series on how plywood is made, you already know that a plywood sheet goes through two distinct finishing stages before it leaves the factory floor. First, calibration — where the raw bonded panel (Mat Ply) is levelled to a consistent thickness before the face veneer is applied. And second, sanding — where the face-veneered panel is refined to achieve a smooth, clean, market-ready surface.

These are two separate processes. They use different machines. They serve different purposes. And confusing one for the other — or using the wrong machine at the wrong stage — results in poor panel quality, wasted material, and unnecessary cost.

This blog focuses on the second of those two stages: sanding. We will explain what a sanding machine is, how it works, and then go deep into the key difference between the two most common industrial sanding machines used in plywood manufacturing — the Wide Belt Sanding Machine and the Drum Sanding Machine.

---

First — A Quick Recap: Why Two Separate Stages?

Before we talk about sanding machines, it helps to be clear about why calibration and sanding are treated as separate operations.

After hot pressing, the Mat Ply — the raw bonded panel — comes out of the press with surface irregularities, thickness variations, and a rough texture. At this stage, the goal is purely mechanical: level the panel to a precise, uniform thickness so that the face veneer can be applied evenly across its entire surface. This is calibration. The machine used for this is a Calibrating Machine, which uses hard steel rollers wrapped with a coarse abrasive — typically 40 to 60 grit — to aggressively remove material and flatten the surface. Precision and material removal are the priorities. Surface finish is not.

Once the face veneer is applied and hot-pressed onto the calibrated Mat Ply, the panel enters a completely different stage. Now the face veneer — thin, decorative, and delicate — is exposed. The goal shifts from material removal to surface refinement. The job now is to remove minor imperfections from the face veneer, create a smooth and uniform surface, and prepare the panel for lamination, painting, or direct market use. This is sanding. A different machine, a different abrasive, a different pressure setting, and a completely different touch.

The calibrating machine levels. The sanding machine finishes.

---

What Is a Sanding Machine?

A sanding machine is an industrial machine that uses abrasive material — typically in the form of a belt, drum, or pad — to remove a controlled amount of material from a wood surface. In the context of plywood manufacturing, a sanding machine is the final mechanical operation before quality inspection and dispatch.

Its job is not to remove large amounts of material. It is not to correct thickness variations — that has already been done at calibration. The sanding machine's job is precision refinement: removing the minor grain roughness left by the face veneer, eliminating any glue squeeze-out or surface contamination, creating a consistent texture across the entire panel surface, and producing the smoothness and sheen that make the panel ready for further processing or sale.

The abrasive used in sanding is significantly finer than that used in calibration — typically ranging from 150 grit for initial finishing passes to 180 or 220 grit for final surface refinement. Where a calibrating machine uses hard steel rollers for aggressive material removal, a sanding machine uses soft rubber rollers and platens that allow controlled, even abrasion without damaging the delicate face veneer.

---

How Does a Sanding Machine Work?

All industrial sanding machines for flat panel processing share a common basic principle: the workpiece (the plywood panel) is fed through the machine on a conveyor, and an abrasive surface moving at high speed contacts the panel's face from above, removing a thin, controlled layer of material.

The key variables that determine the quality of the sanding result are:

Abrasive grit size — coarser grits remove more material but leave deeper scratches. Finer grits remove less material but produce a smoother surface. A proper sanding sequence progresses through multiple grit stages — for example, 120 grit, then 150 grit, then 180 or 220 grit — each stage removing the scratches left by the previous one.

Contact pressure — how hard the abrasive presses against the panel surface. Too much pressure tears the face veneer. Too little pressure produces inconsistent results. The right pressure varies by panel type, face veneer species, and desired finish.

Feed speed — how fast the panel passes through the machine. Slower feed speeds allow more contact time between abrasive and surface. Faster speeds increase throughput but require precise pressure and grit settings to maintain quality.

Oscillation — many industrial sanding machines oscillate the abrasive belt slightly from side to side during operation. This prevents a single line of abrasive contact from creating visible tracks on the surface, producing a more even, consistent finish.

Now — within the category of flat panel sanding machines, there are two fundamentally different machine types that dominate industrial plywood finishing: the Wide Belt Sanding Machine and the Drum Sanding Machine. They use different mechanics, produce different results, and suit different production environments.

---

The Wide Belt Sanding Machine

The Wide Belt Sanding Machine is the industry standard for plywood panel finishing in professional manufacturing environments. At Kumar Engineering India Pvt. Ltd., our wide belt sanding machines are the machines we are most associated with — and for good reason.

How It Works

In a Wide Belt Sanding Machine, a continuous abrasive belt — wide enough to cover the full width of the panel in a single pass — is driven in a loop between two or more rollers. The panel is fed through the machine on a conveyor belt, passing under the abrasive belt as it moves at high speed. The abrasive belt contacts the entire width of the panel simultaneously.

Most industrial wide belt sanders have two primary contact elements:

The contact roller — a rubber-covered roller that the abrasive belt wraps around at the point of contact with the panel. The contact drum provides firm, consistent pressure across the width of the panel and is primarily responsible for material removal. It creates a repeatable, uniform cut.

The platen — a flat pad (typically graphite-coated felt or foam) positioned downstream of the contact drum. As the panel passes under the platen, the abrasive belt presses against it in a gentle, full-surface contact. The platen is what gives wide belt sanding its final, exceptionally smooth finish — it eliminates the minor marks from the contact rollers and produces the silky surface quality that makes the panel ready for coating.

The combination of contact roller for material removal and platen for final finishing is what sets the wide belt sander apart from all other sanding machine types.

The Key Advantages of a Wide Belt Sanding Machine

Full-width contact in a single pass. The abrasive belt is as wide as the panel. The entire surface is sanded simultaneously. There are no overlapping passes, no uneven zones, no lines where one pass ended and the next began. The result is perfectly uniform surface quality from edge to edge.

Exceptional surface finish. The platen contact produces a finish that is smooth, consistent, and often ready for direct lamination or coating without any additional hand sanding. A wide belt sander with a platen can take a panel straight to a finishing-grade surface in one machine pass.

High production throughput. Wide belt sanders process panels continuously and at high speed. In a production environment, they dramatically outperform drum sanders in terms of panels processed per hour.

Precise thickness control. The machine can be set to remove an exact, repeatable amount of material from the surface — critical when working with thin face veneers where over-sanding means sanding through the face entirely.

Consistent grit change. Changing abrasive belts on a wide belt sander is fast and straightforward. Because the belt is a single continuous loop rather than sandpaper wrapped around a drum, it is quick to install and replace.

Minimal heat generation. The wide belt's large contact area distributes cutting heat across a greater surface, reducing localised burning — particularly important when sanding resinous species or panels that have been recently pressed with heat-sensitive adhesives.

Oscillation for mark-free finishing. The lateral oscillation of the belt during operation prevents any single abrasive track from repeating in the same position, producing a surface that is essentially free of visible sanding lines.

Limitations

Wide belt sanding machines are more expensive to purchase than drum sanders — both in initial capital cost and in terms of power requirements. They require a proper electrical supply (typically three-phase) and often a compressed air supply for pneumatic belt tensioning and tracking control. For small workshops or operations with very low throughput, the investment may not be justified.

---

The Drum Sanding Machine

The Drum Sanding Machine is an older technology that preceded the wide belt sander. It is still used in many workshops and smaller operations, and for specific applications it remains a relevant tool.

How It Works

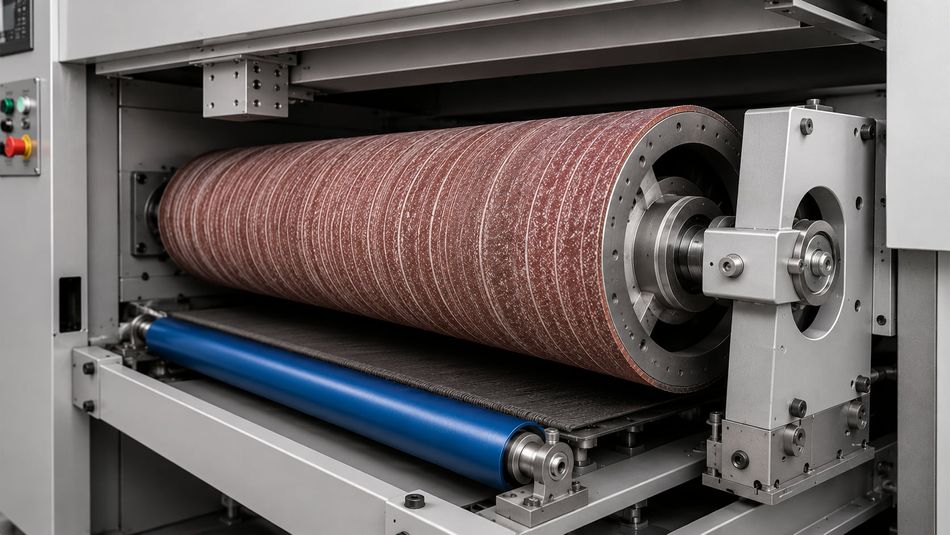

In a Drum Sanding Machine, sandpaper is wrapped around one or more rotating cylindrical drums. The panel is fed through the machine on a conveyor, passing under the rotating drums which abrade the surface from above. Unlike the wide belt sander — where one wide belt covers the full panel width simultaneously — the drum sander contacts the panel through the drum's cylindrical surface.

Many industrial drum sanders have two or more drums in sequence, each loaded with a different grit — the first drum performing coarse sanding, the second performing finer finishing. This multi-drum arrangement allows grit progression within a single machine pass.

The Key Advantages of a Drum Sanding Machine

Lower initial cost. Drum sanders are generally less expensive to purchase than wide belt sanders of equivalent working width, making them accessible for smaller operations and budget-constrained manufacturers.

Compact footprint. Drum sanders are typically more compact machines, making them suitable for workshops where floor space is a constraint.

Good for smaller panels and irregular shapes. Drum sanders can be effective for smaller workpieces, narrower panels, and operations where the variety of panel sizes is high.

Versatility for specialised operations. With a denibbing head attachment, drum sanders can perform additional operations such as brush sanding for profiled workpieces or denibbing paint coatings — applications where the wide belt's design is less flexible.

Limitations

Surface marking. The cylindrical contact surface of the drum can leave visible periodic marks — sometimes called drum marks or chatter marks — on the panel surface if the machine is not perfectly set up or if the sandpaper wrap is not perfectly uniform. These marks may require additional hand sanding to remove, meaning the panel is handled twice — once through the machine and once by hand.

Sandpaper management. Changing sandpaper on a drum sander requires cutting the paper to the correct length, tapering the ends, and wrapping it tightly around the drum — a more involved process than simply loading a new belt on a wide belt sander. In a high-volume production line, this adds downtime.

Width limitation for single pass. Depending on the drum diameter and machine design, some drum sanders may not achieve full panel-width contact in a single pass, requiring multiple passes or overlapping runs — which can create uneven surface texture at the overlap zone.

Lower throughput. In a high-volume production environment, drum sanders process panels more slowly than wide belt sanders and require more operator attention to achieve consistent results.

Heat concentration. The smaller contact area of the drum concentrates cutting heat, increasing the risk of burning the surface — particularly problematic with resinous species, MDF, and thin face veneers.

---

Wide Belt vs. Drum Sander — Side by Side

Which Machine Is Right for Plywood Manufacturing?

For a plywood manufacturing plant operating at any meaningful production volume, the answer is clear: the Wide Belt Sanding Machine is the correct machine for face veneer sanding.

Here is why this matters specifically in the plywood context.

After hot pressing, the face veneer on a plywood panel is thin — often as thin as 0.5mm to 1mm for decorative grades. Sanding this surface requires precision, consistent pressure, and a machine that will not generate localised heat, create drum marks, or apply inconsistent contact pressure across the width of the panel. Any of these problems — on a face veneer this thin — means sanding through the veneer entirely, exposing the core beneath, and creating a rejection.

The wide belt sander's soft rubber contact roller, full-width belt coverage, platen finishing, and precise pressure control make it exactly the right tool for this application. It removes just enough material to refine the surface without compromising the veneer's integrity. It does this consistently, panel after panel, at production speed.

The drum sander, by contrast, carries risk at this stage: localised heat from the drum contact, potential for drum marks, and the possibility of uneven pressure across the width — all of which are acceptable risks in a small woodworking shop but not in a plywood factory where face veneer quality directly determines the panel's grade and market price.

---

Summary

Sanding is the final mechanical quality gate in plywood manufacturing. It transforms a rough, post-press panel into a smooth, market-ready product. Done right, it adds value. Done wrong, it destroys thin, expensive face veneer and generates rejection cost.

The Wide Belt Sanding Machine is the industry standard for plywood face veneer sanding for very good reasons: full-width coverage, consistent pressure, low heat generation, platen finishing, and high throughput. For any plywood plant serious about surface quality and production efficiency, it is not a luxury — it is a necessity.

The Drum Sanding Machine has its place in smaller operations, specialty tasks, and budget-constrained environments. But for the specific demands of thin face veneer sanding on production-scale plywood panels, the wide belt sander is the correct tool.

At Kumar Engineering India Pvt. Ltd., we design and manufacture wide belt sanding machines specifically for the Indian plywood industry — built to handle the variety of veneer species, panel sizes, and production conditions that Indian manufacturers work with every day.

Visit kumarengineeringco.in to learn more about our range of sanding and calibrating machines, or contact us to discuss the right solution for your production line.
