What Are Grains in Wood? Types, Patterns & Why It Matters in Plywood Manufacturing

Have you ever run your hand along a wooden table and felt those subtle ridges? Or stared at a plank of teak and wondered why it looks like a river frozen in time? That's the grain talking. And once you understand what it's saying, you'll never look at wood the same way again.

Let's start at the very beginning.

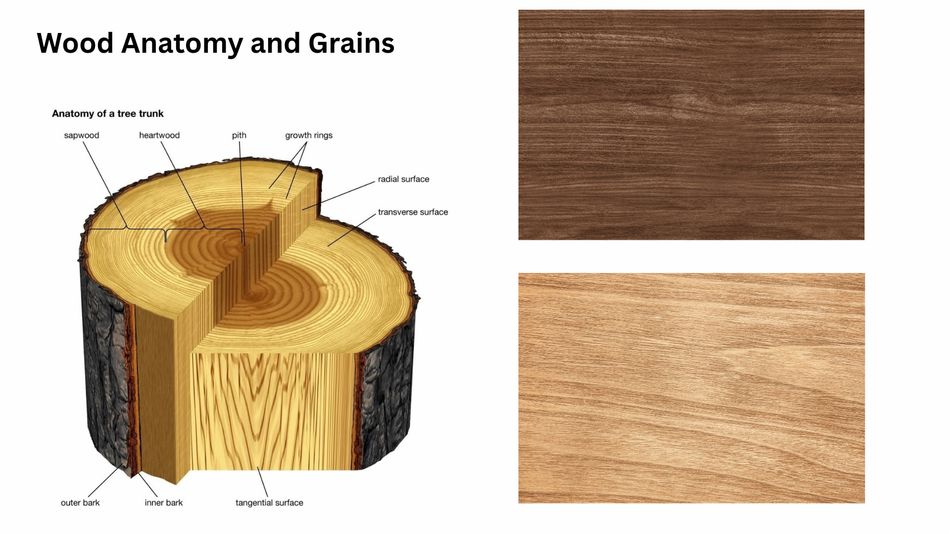

A tree is basically a bundle of drinking straws

Here's the most useful way to think about wood. A living tree is made of millions of long, hollow cells — called cellulose fibers — all stacked and aligned roughly vertically, running from roots to crown. Every year, the tree adds a new sleeve of these cells around the outside, just under the bark. Spring growth is fast and the cells are large and pale. Summer growth is slower, denser, darker. That cycle — pale, dark, pale, dark — is what we see as annual rings.

When you cut a log into planks, you're slicing through those rings and fibers. Depending on the angle of the cut, those fibers show up differently on the face of the board. That pattern you see — the lines, swirls, and figures — that's grain.

Simple as that. But here's where it gets interesting.

---

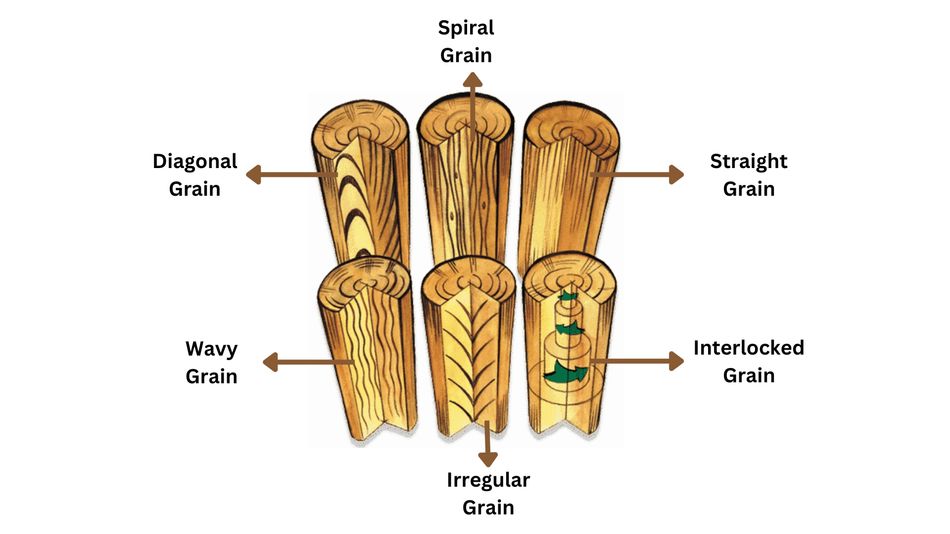

Grain direction — the thing that actually matters on a machine

Of all the aspects of grain, direction is the one that matters most in a manufacturing setting. It tells you how the fibers are running relative to the length of the board — and that determines everything about how the wood machines, sands, and finishes.

• Straight Grain : Fibers run perfectly parallel to the length of the board. The most predictable and workable grain type. Machines cleanly, sands evenly, accepts finishes uniformly. Preferred for structural plywood veneers and high-volume manufacturing. Species like teak and silver oak often yield straight-grained timber when properly harvested and cut.

• Diagonal Grain : Fibers run at an angle across the board's length — usually caused by poor log alignment during sawing. The steeper the angle, the weaker the board. Diagonal grain reduces strength, causes uneven sanding results, and can lead to warping. It is generally considered a milling defect rather than a natural wood characteristic.

• Irregular Grain : Fibers change direction abruptly and unpredictably — often caused by knots, crotches, burls, or growth disturbances. The grain around a knot swirls outward in all directions. Irregular grain is difficult to machine without tear-out and requires slower feed rates. However, it can produce highly decorative visual effects prized in premium furniture.

• Interlocked Grain : Successive growth layers lean alternately left and right, like a plaited braid. When quarter-cut, this produces the famous ribbon-stripe shimmer seen in teak, sapele, and African mahogany. Extremely strong and resistant to splitting.

• Wavy Grain : Fibers undulate in regular, even waves along the length of the board — like a gentle sine curve. When quarter-cut, this produces the coveted fiddleback figure, named after violin backs where it is traditionally used. Visually spectacular under light.

• Spiral Grain : Fibers twist helically around the trunk as the tree grows — like a barber's pole. Moderate spiral is found naturally in many species. A severe spiral significantly weakens lumber and makes it prone to twisting after drying.

---

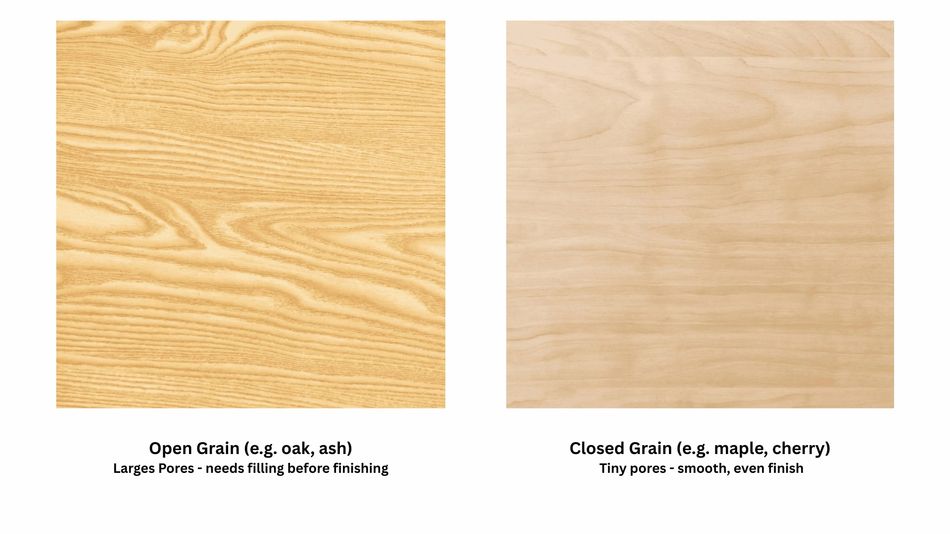

Grain texture — open or closed?

Texture isn't about direction. It's about the size of the wood's pores — the cross-sections of those hollow fiber cells. And it matters enormously for finishing.

Think of open-grained wood like a freshly tilled field — lots of large holes that absorb everything unevenly. Oak, ash, and walnut are open-grained. Beautiful? Absolutely. But if you sand and apply a stain directly, it pools in the pores, creating blotchy patches and darker spots at the channels.

Closed-grained wood — maple, cherry, birch — has tiny, microscopic pores. Run your hand across a well-sanded maple board and it feels like glass. The finish absorbs uniformly. No surprises.

For plywood manufacturers, this affects face veneer selection. A fine-grained face veneer gives a more consistent, predictable surface after sanding — which directly impacts the quality of the finished panel.

---

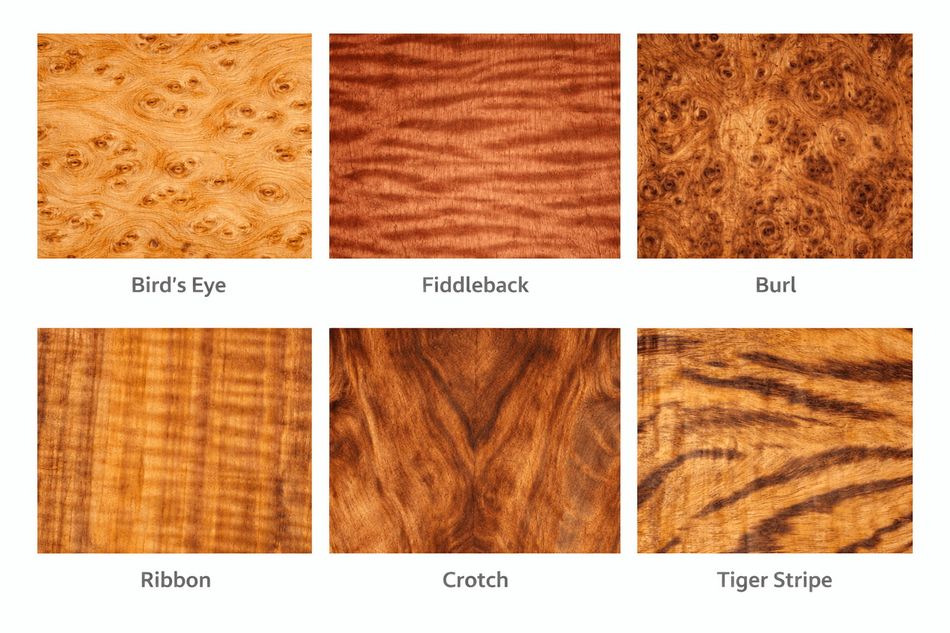

Grain figure — where wood becomes art

Now we get to the part that makes woodworkers go quiet and reach for their wallets.

Figure is the visual pattern on the face of a board — what you actually see when you look at it. It's produced by the intersection of grain direction, growth rings, and the angle of the cut. Some figures are common. Some are extraordinarily rare.

• Bird's Eye : Tiny, round swirling eye-like formations scattered across the wood surface, most famously seen in maple. Caused by repeated stress interrupting the tree's normal growth, producing small depressions in the annual rings. Once dismissed as a defect, bird's eye veneer today commands premium pricing in fine furniture and decorative cabinetry.

• Fiddleback : Regular, closely-spaced rippling bands running perfectly perpendicular to the grain direction. Produced by wavy grain when the log is quarter-sawn. Named for its traditional use on the backs of classical violins. The figure shimmers and shifts dramatically under changing light — the defining characteristic of high-end tonewoods and luxury furniture veneers.

• Burl : Formed when a tree responds to injury, disease, or insect attack with uncontrolled, chaotic growth. The result is dense, swirling, interlocked grain radiating around clusters of dormant buds. No two burls look alike. The rarest and most expensive figure in woodworking — prized for bowls, veneers, and luxury interiors.

• Ribbon Stripe : A striking alternating pattern of light and dark vertical bands, produced by quarter-sawing tropical species with interlocked grain — teak, sapele, and African mahogany being the most common. Each band reflects light differently as you move around it. A hallmark of boardroom furniture, luxury panelling, and high-end architectural interiors worldwide.

• Crotch : Cut from the fork where a trunk divides into major branches. The grain from both directions collides and fans outward symmetrically, creating a dramatic feather, flame, or plume figure. Highly sought after for matched-pair decorative veneers in furniture faces and cabinet doors. Each crotch piece is inherently unique and unrepeatable.

• Tiger Stripe : Bold, irregular dark bands streaking across a warm golden ground — resembling a tiger's coat. Produced by prominent medullary rays in species like lacewood, sycamore, and quartered oak. Also called "pommele" in some African species. Visually dramatic and instantly recognisable, tiger stripe is popular in statement furniture and feature wall panelling.

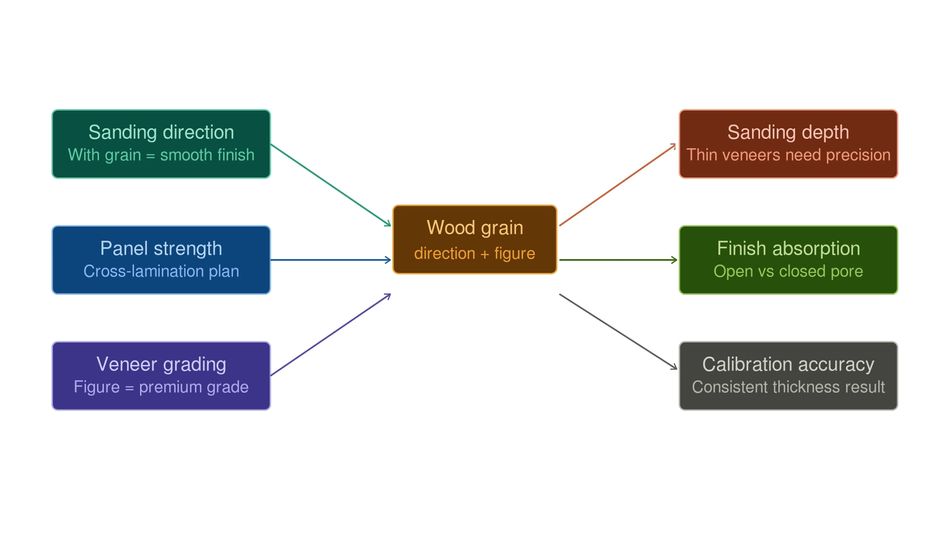

So why does all this matter for plywood manufacturing?

Here's where it gets practical

Everything in a plywood plant that touches wood is responding to grain. The cross-lamination layout — where each veneer layer is rotated 90° from the one below it — only works because fibers resist movement along their length. Without understanding grain, you can't plan that correctly.

Sanding is grain-dependent. If your wide-belt sander runs against the face veneer's grain direction, you're not just making scratches — you're tearing fibers, creating channels that drink in stain unevenly, and potentially ruining the panel's surface grade. The machine doesn't know what the wood wants. The operator does. Or should.

Calibration is grain-sensitive. A panel's response to thickness sanding varies across the face depending on how the fibers are oriented. Precision machines compensate for this with consistent pressure and grit progression — but only when the operator understands what they're working with.

And veneer grading? That's almost entirely a story about grain. A straight-grained face veneer with no figure is structural grade. A piece with pronounced ribbon stripe or bird's eye is decorative premium. The grade — and the price — is determined by what the grain looks like and how consistent it is.

Conclusion

Think of wood grain as the wood's personality. It tells you how the tree lived, how it was cut, how strong it is, how it will react to moisture, and how it wants to be finished. Ignore it and you'll fight the wood at every step. Work with it and everything flows — the sanding, the calibrating, the finishing, the final product. Every plank has a story written in its grain. The job of good manufacturing — and good machinery — is to read that story and respond to it.
