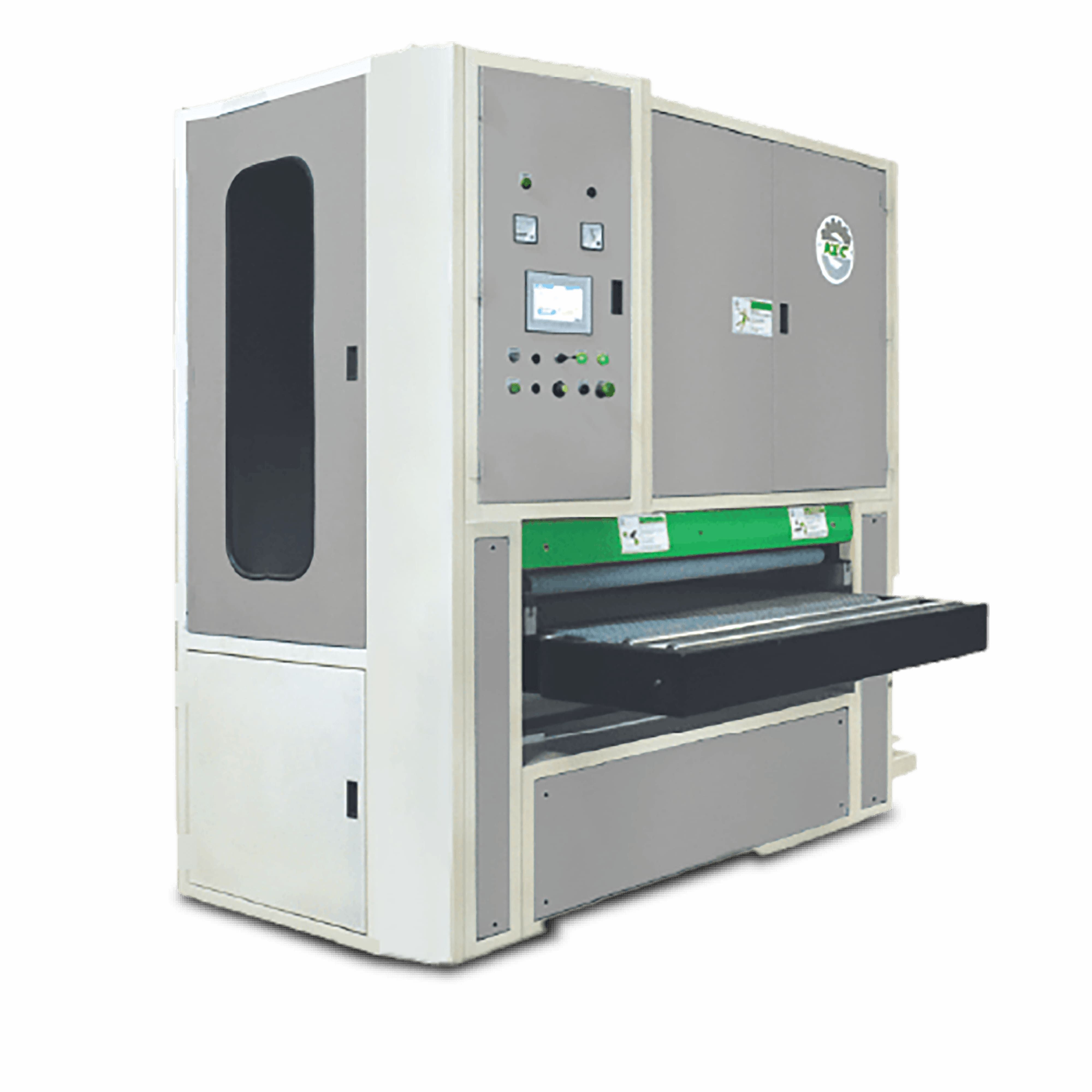

ATLANTIC 2950 A
Single Head Calibrating Machine

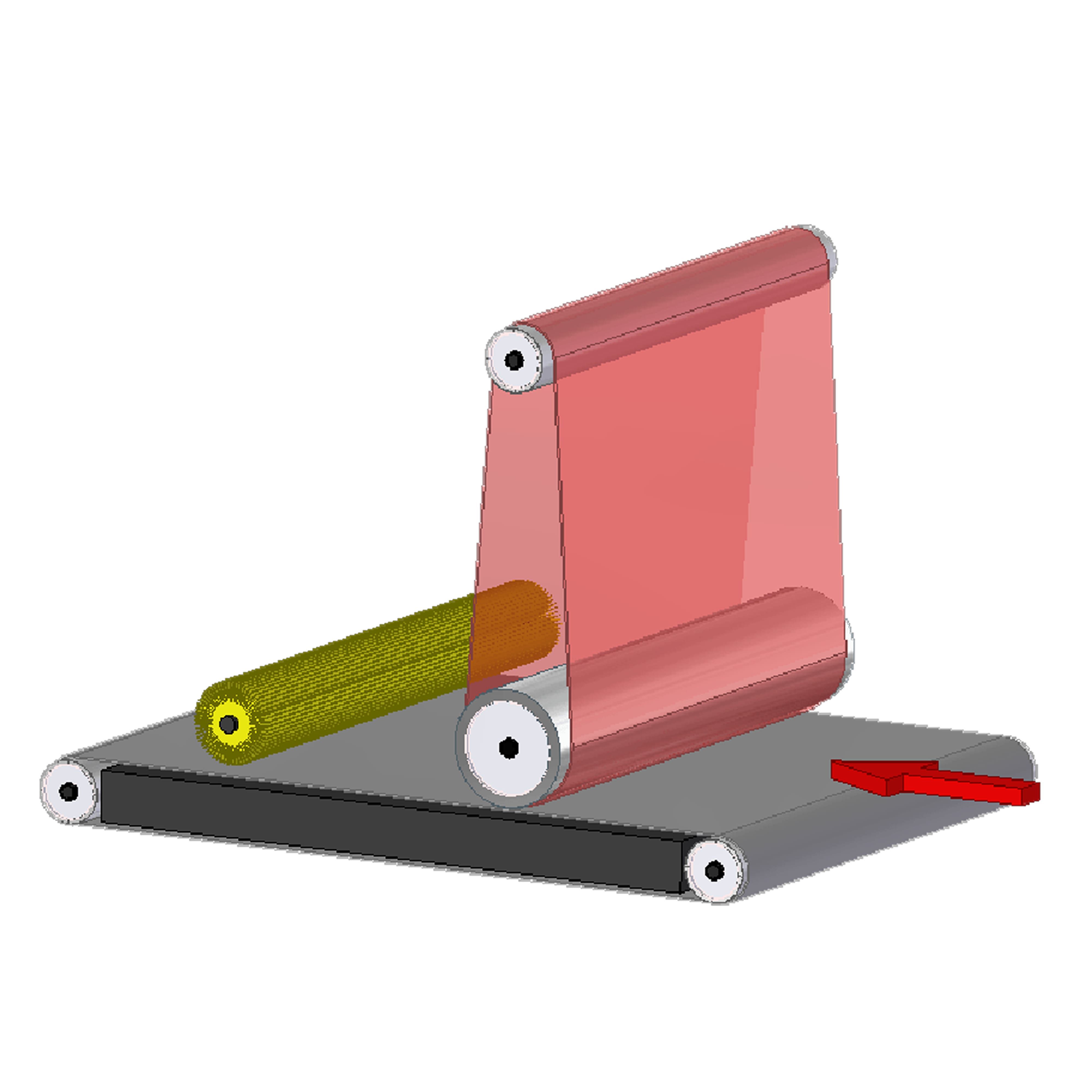

Single Head Calibrating Machine removes undulances from Mat Ply using a Hard Chrome Roller balanced through static and dynamic methods. Ply is fed via Pressure Rollers over a hard-surfaced Conveyor Belt with pneumatic centering. Its externally mounted Main Motor allows easy maintenance and features a Pneumatic Disc Braking System.

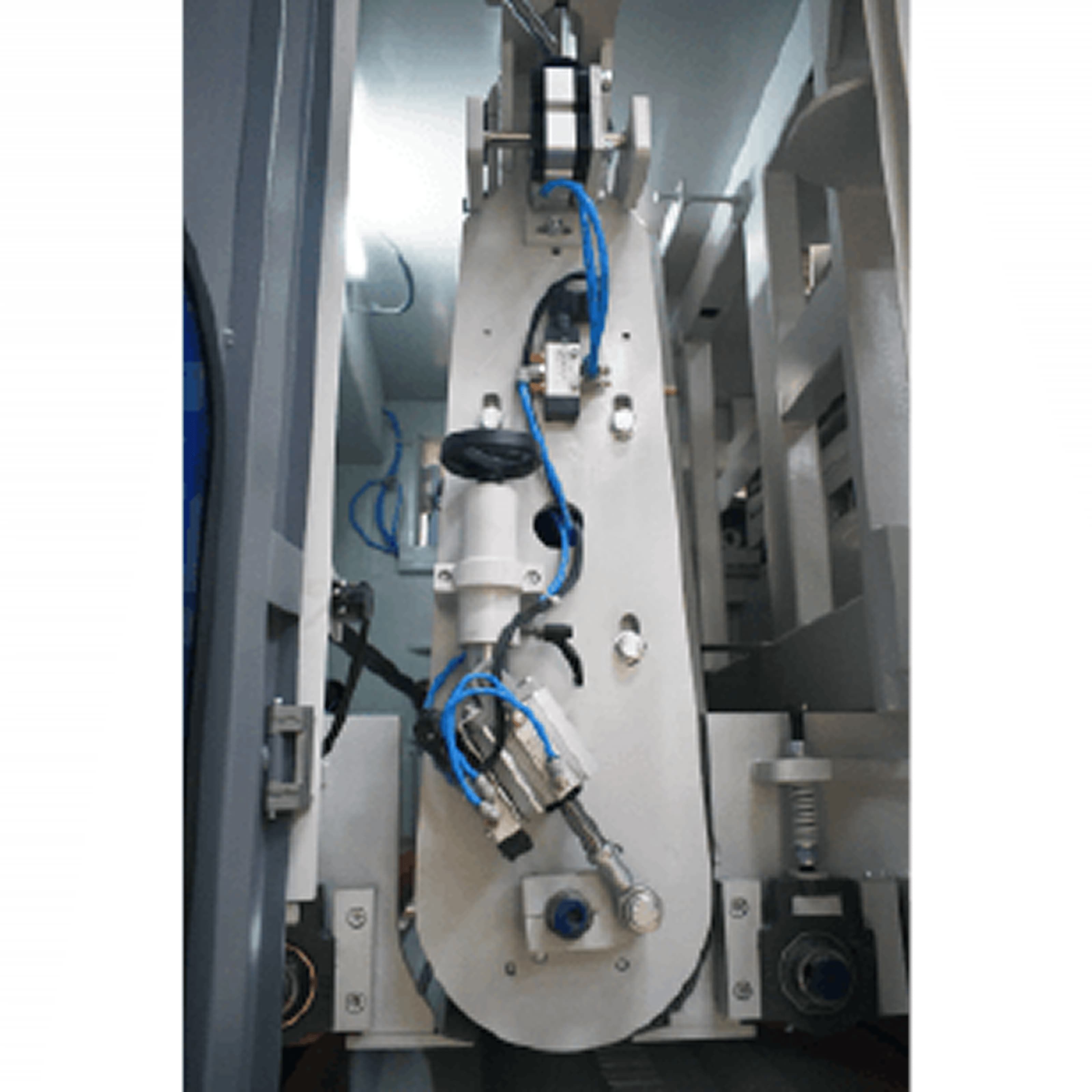

Sanding Belt centering is controlled by a Pneumatic Oscillation system with Photo Sensors and overshoot protection. A Scotch Brush Roller clears fine wood dust at the exit, while a Dust Arresting Header ensures efficient dust extraction.
Specific Features
- Precision calibration with robust construction and balanced chrome roller
- Pneumatic mechanisms for centering and belt oscillation
- External motor mount improves service access and space usage
- Fine dust cleared with Scotch Brush and dust header
- Built-in safety for human and machine protection
- Vibration-free calibration
Application
- Ideal for small and medium industries entering calibrated product markets
- Calibrates decorative ply from 2.5 mm and above
- Useful for repairing ply via face veneer removal
Market Expectation
- Rising demand for calibrated ply in modular furniture and home products
- Machine supports low-cost calibration to stay competitive
Our Solution
- Accurate calibration with valriation of ±0.1 mm
- Efficient design ensures smooth production with minimal consumables
- High working efficiency for energy savings
Technical Specifications
| Working Thickness | 2-100 mm |
| Working Width | 200-1250 mm |
| Number of Heads | One |
| Heads Configuration | R |
| Top Head | Calibration with Steel Roller; 37 KW (50 HP) |
| Conveyor Speed | 5-25 mpm |
| Conveyor Motor | 3.7 KW (5 HP) |
| Vertical Traverse Motor | 0.37 KW (0.5 HP) |
| Cleaning Brush Motor | 0.75 KW (1 HP) |
| Overall Electrical Power | 42 KW (56.5 HP) |
| Overall Weight | 3500 Kg |
| Dimensions (L x W x H) | 2050 X 2850 X 2400 mm |
General Specifications
| Abrasive Belt Size | 2620 X 1350 mm |
| Required Air Compressor Capacity | 20 CFM |
| Required Dust Collector Capacity | 6000 CMH |
| Required Dust Collector Power | 7.5 KW (10 HP) |
