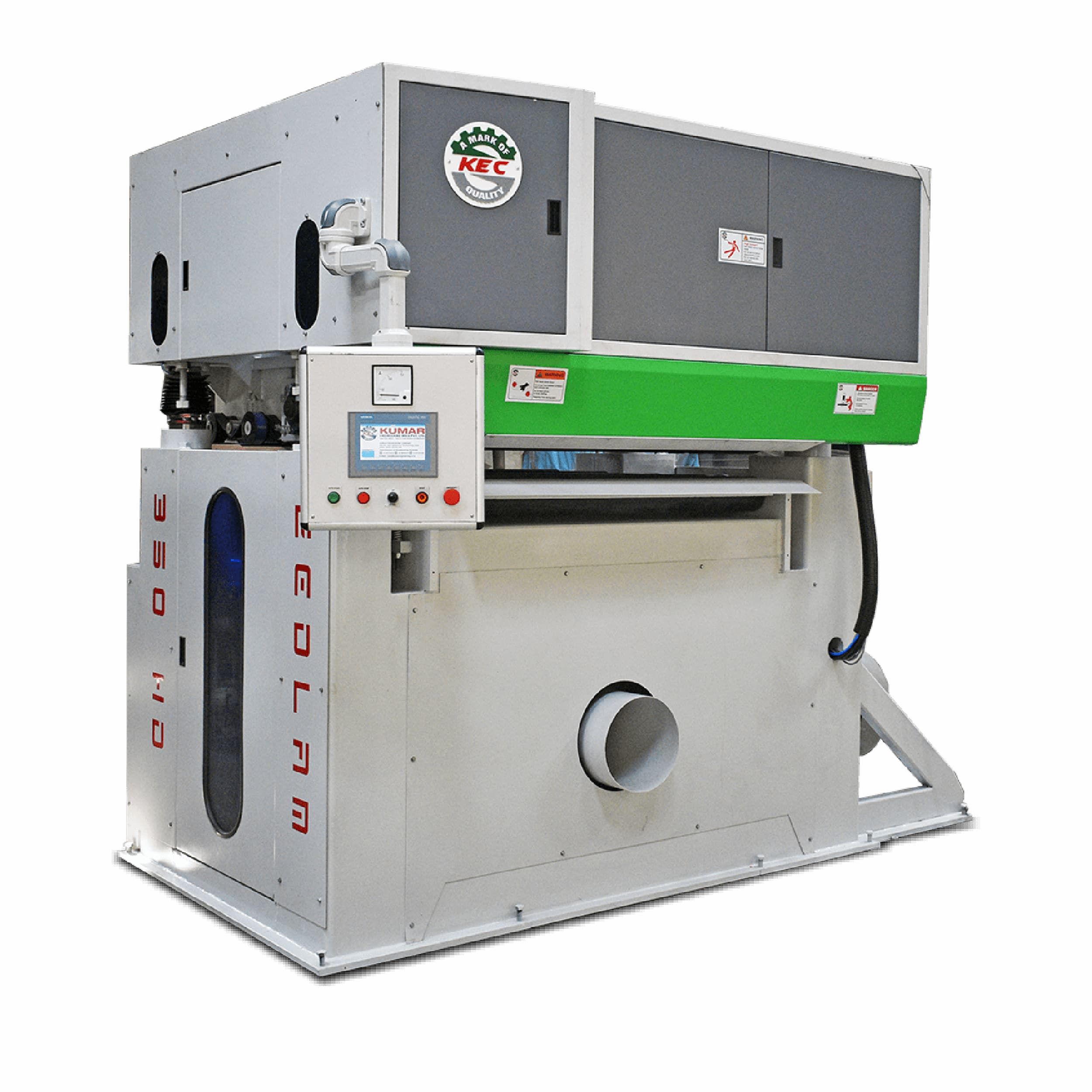

LABYRINTH-3575 A
Heavy Duty Laminate Sanding Machine
Heavy-Duty Laminate Sanding Machine is specifically designed for large-scale units producing 10,000 to 12,000 sheets per day. It is built for high-capacity operations, delivering precise sanding with minimal stock removal, ideal for removing glue impressions and creating the right surface roughness for strong glue adhesion.
This machine is engineered for extreme accuracy, essential when dealing with thin laminate sheets, ensuring consistent results and exceptional performance.
Specific Features
- Sands laminate sheets from 0.4mm with precision
- Eliminates glossy sheet slippage for consistent output
- High-speed sanding up to 22 sheets per minute
- Robust structural build for heavy-duty, continuous operation
- Low stock removal with precise, chatter-free surface finishing
- Built-in safety for human and machine protection
Application
Ideal for manufacturers producing high-quality laminates, this machine supports a wide range of laminate types, ensuring excellent surface preparation for strong adhesive bonding. It’s particularly suited for industries requiring precise, thin sheet processing with flawless finishes.
Market Expectation
The market demands high precision and consistency in laminate sheets, including uniform thickness, a clean, defect-free surface, and optimal roughness for strong adhesive bonding. These requirements must be met with minimal material loss and efficient use of consumables to reduce production costs and maximize output.
Our Solution
- Our machine is designed for maximum efficiency, reducing consumables usage and energy
- Eliminates glossy sheet slippage for consistent output
- High-speed sanding up to 22 sheets per minute
Technical Specifications
| Working Thickness | ≤ 0.5 mm |
| Working Width | 200-1250 mm |
| Number of Heads | One |

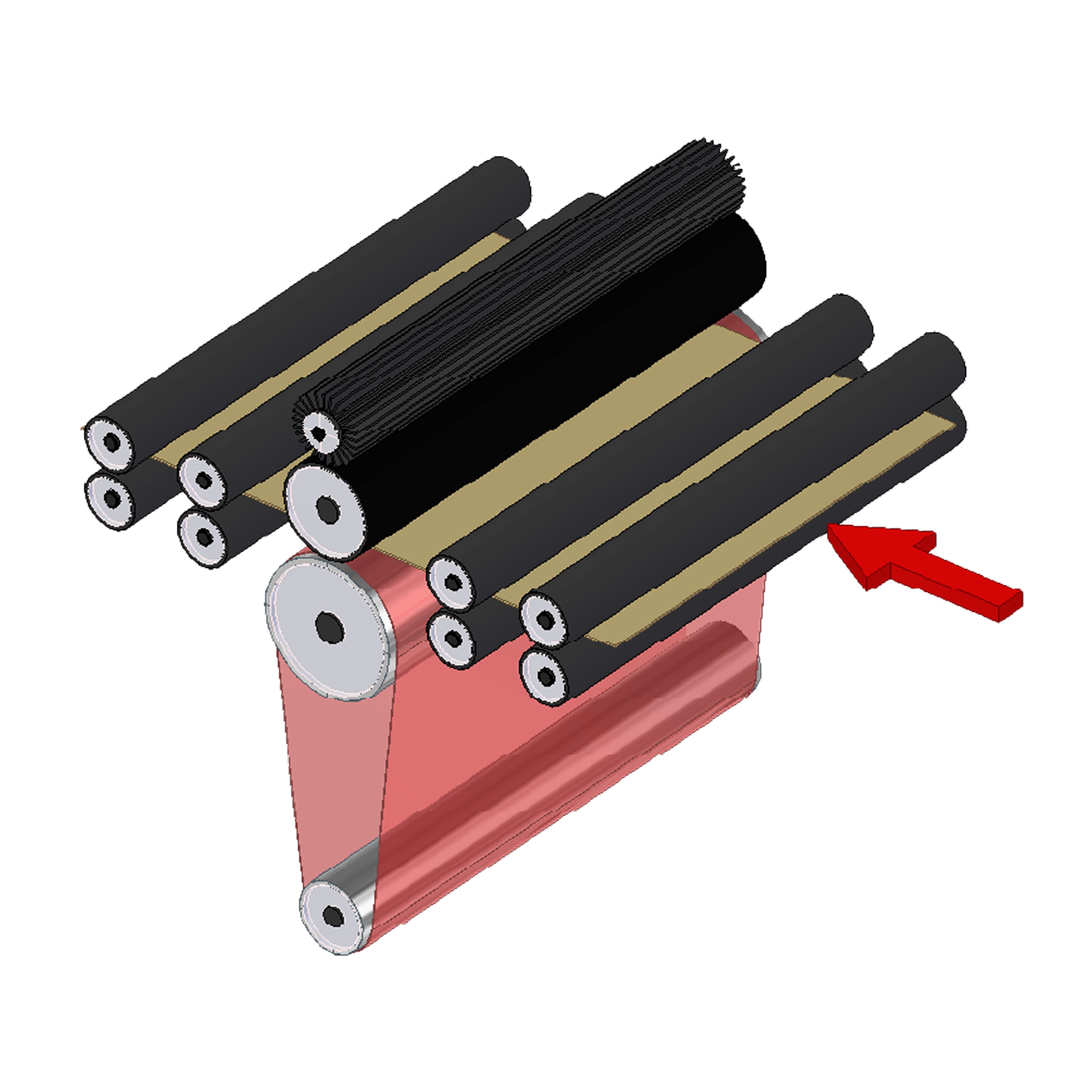

| Heads Configuration | R |

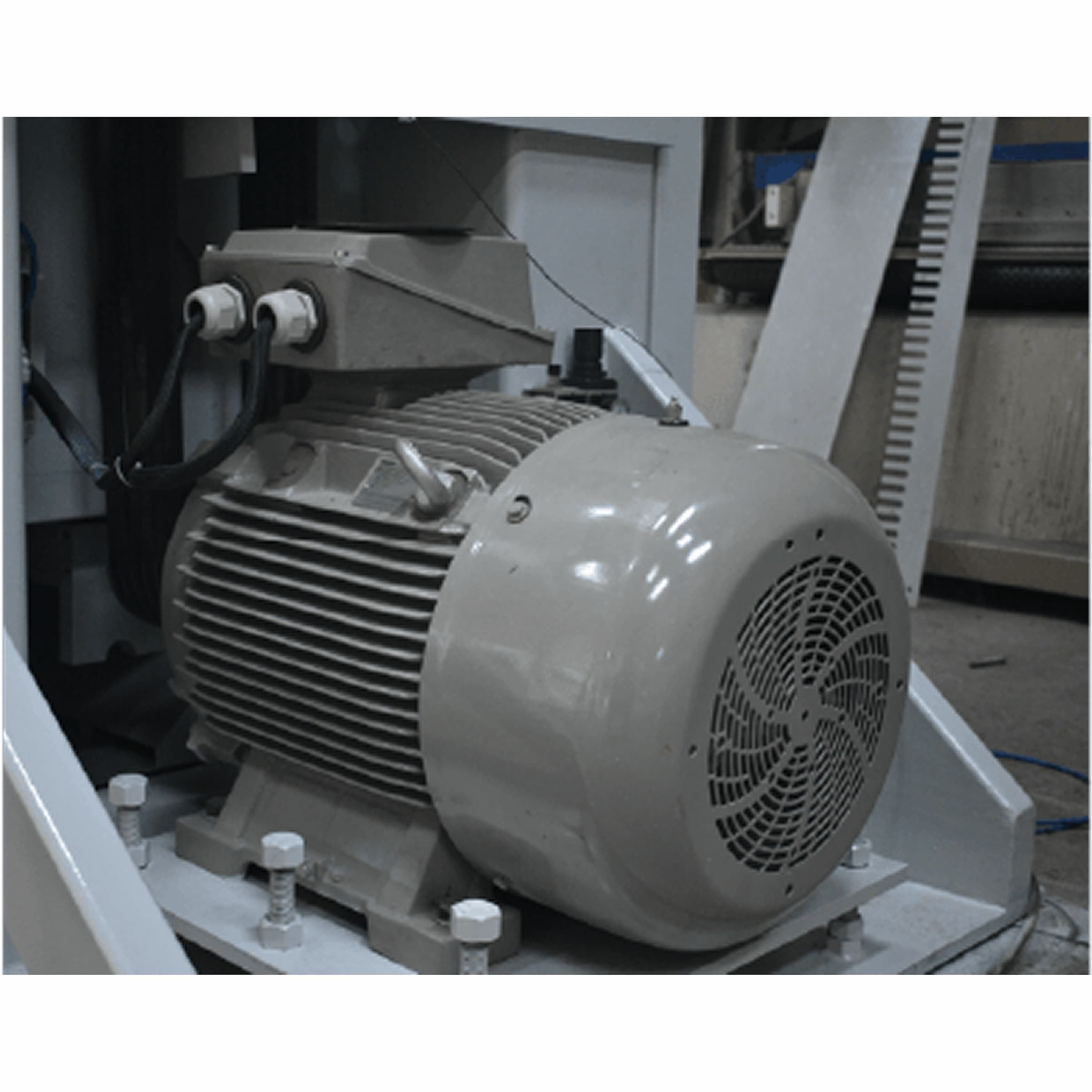

| Sanding Head | Sanding with Steel Roller; 56 KW (75 HP) |
| Billy Roller | Counter Pressure Hard Rubber Roller; 3.7 KW (5 HP) |
| Conveyor Speed | 80 mpm |
| Conveyor Motor | 1.5 KW (2 HP) X 2 Nos. |
| Vertical Traverse Motor | 1.5 KW (2 HP) |
| Cleaning Brush Motor | 0.75 KW (1 HP) X 2 Nos. |
| Overall Electrical Power | 66 KW (88 HP) |
| Overall Weight | 7000 Kg |
| Dimensions (L x W x H) | 2050 X 3200 X 2500 mm |
General Specifications
| Abrasive Belt Size | 2620 X 1350 mm |
| Required Air Compressor Capacity | 20 CFM |
| Required Dust Collector Capacity | 12000 CMH |
| Required Dust Collector Power | 15 KW (20 HP) |
