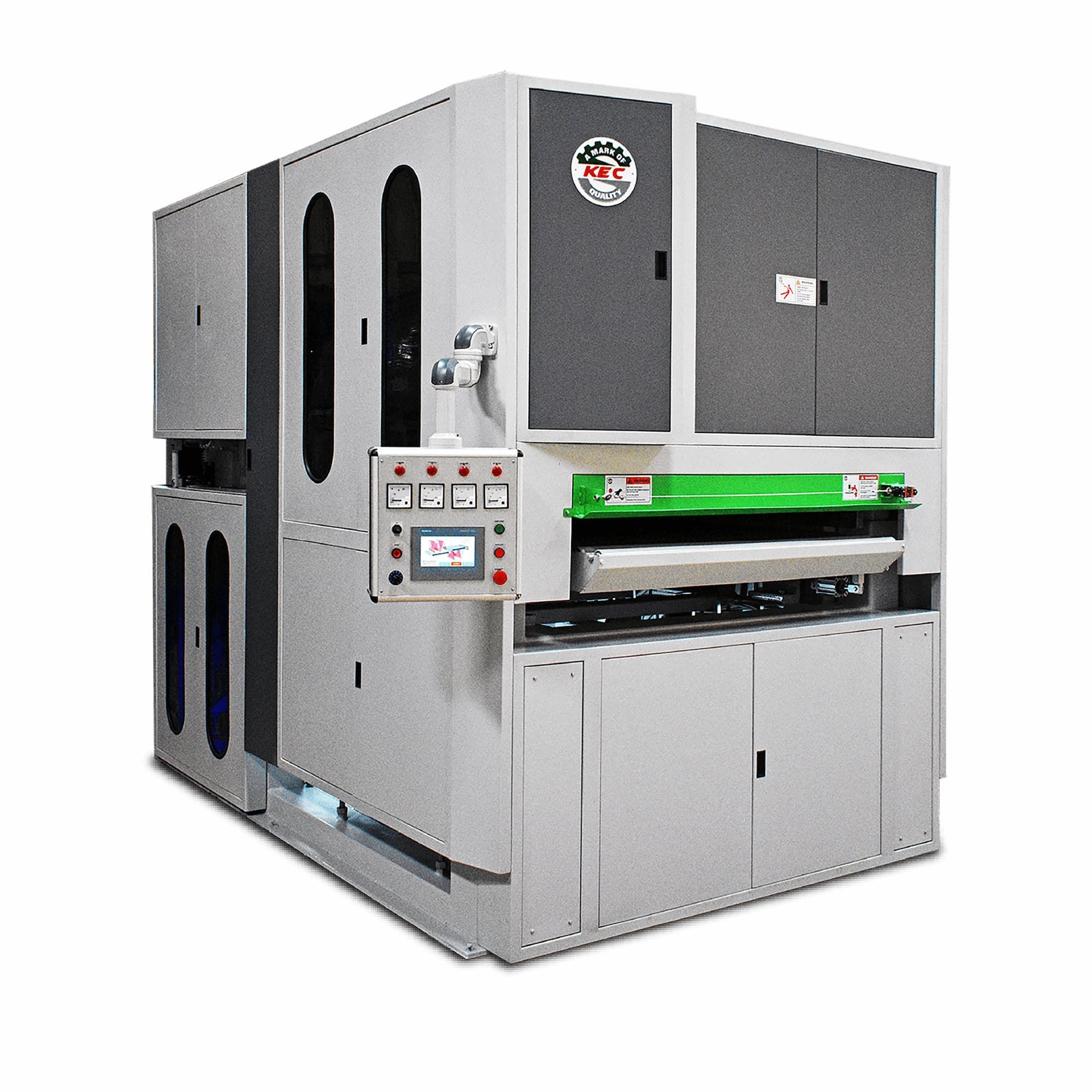

GRACIOUS 2725 D
Heavy Duty Both Side Sanding Machine

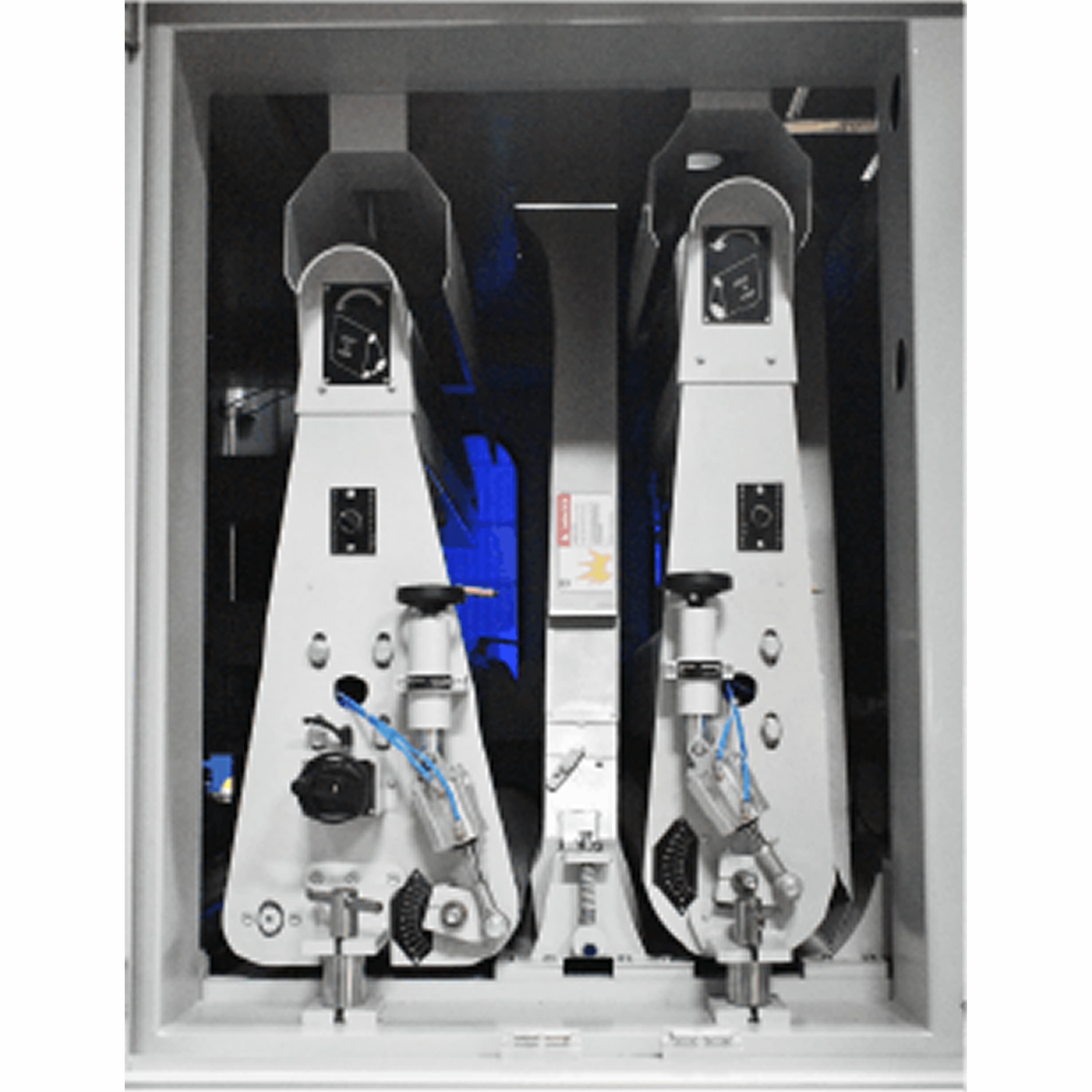

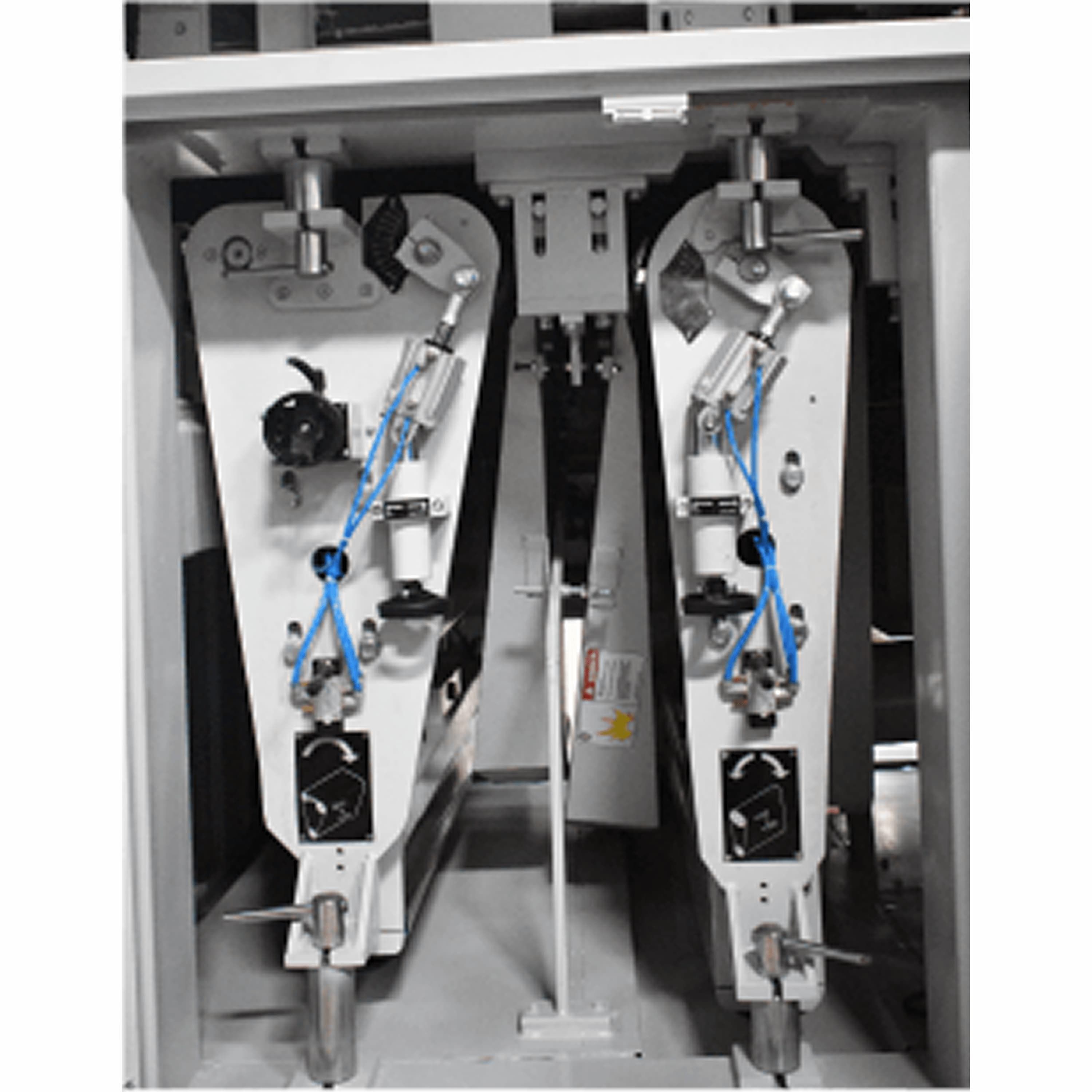

Our Both Side Sanding Machine combines top and bottom sanding units into a single structure for simultaneous, space-saving and high-efficiency operation. Each side features a roller sanding system and a pneumatically operated pad, powered by separate high-capacity motors.

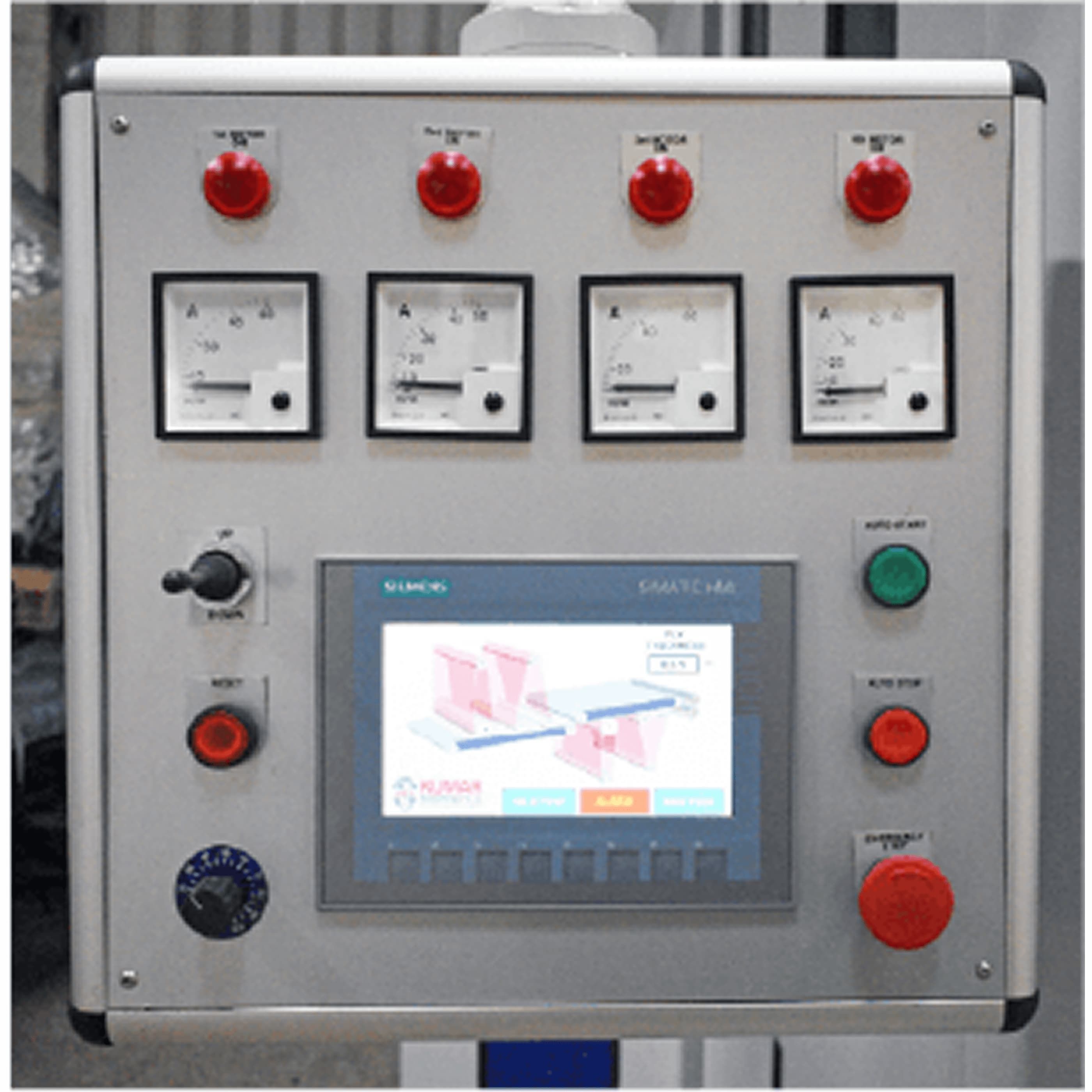

A centralized control panel ensures precision, while a heavy-duty suction blower prevents belt contact, maintaining smooth, uninterrupted performance.
Specific Features
- High-quality finish without prior calibration
- Roller for initial sanding, pad for final touch
- Adjustable speed and user-friendly controls
- Brush rollers for a clean, glossy finish
- Minimal manpower with auto-loading and stacking
- Built-in safety feature for both operator and machine
Application
- Handles high production volumes, up to 10,000 sheets per day
- Delivers premium quality and quantity, meeting all market demands
Market Expectation
The market consistently demands smooth, glossy and flawless surface finishes, without patch marks or inconsistencies. Market requires a compact solution for both side sanding in a single go which reduces labour cost and saves production time.
Our Solution
- Continuous upgrades for peak performance
- Cutting-edge technology for top-quality results

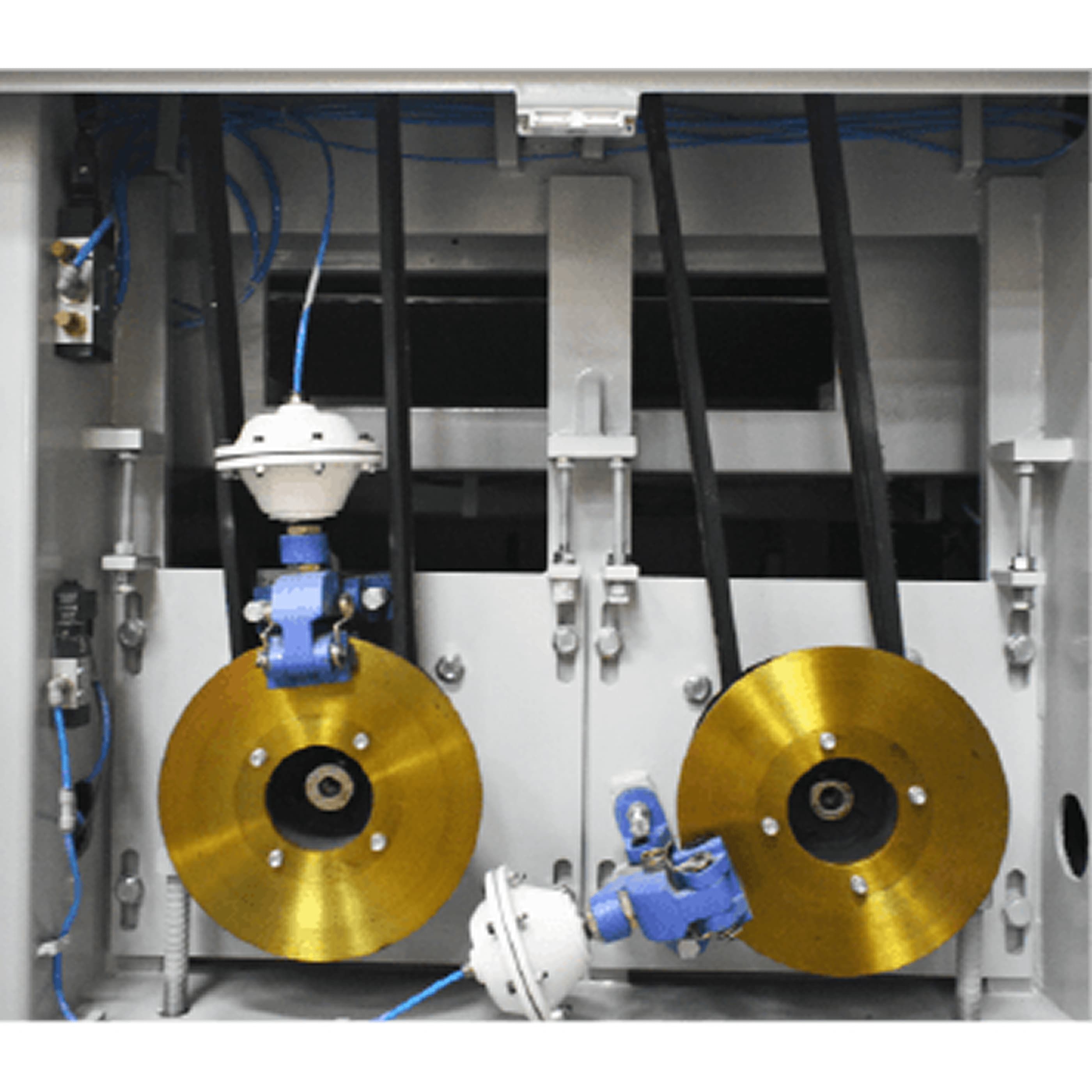

- Servo-Controlled Floating Roller Technology smartly protecting face veneer even with thickness variations
- Sanding unit with a combi head unit works in a way which gives a glazing effect on the surface of plywood
- Saves huge time and labour
Technical Specifications
| Working Thickness | 2-200 mm |
| Working Width | 200-1250 mm |
| Number of Heads | Four |

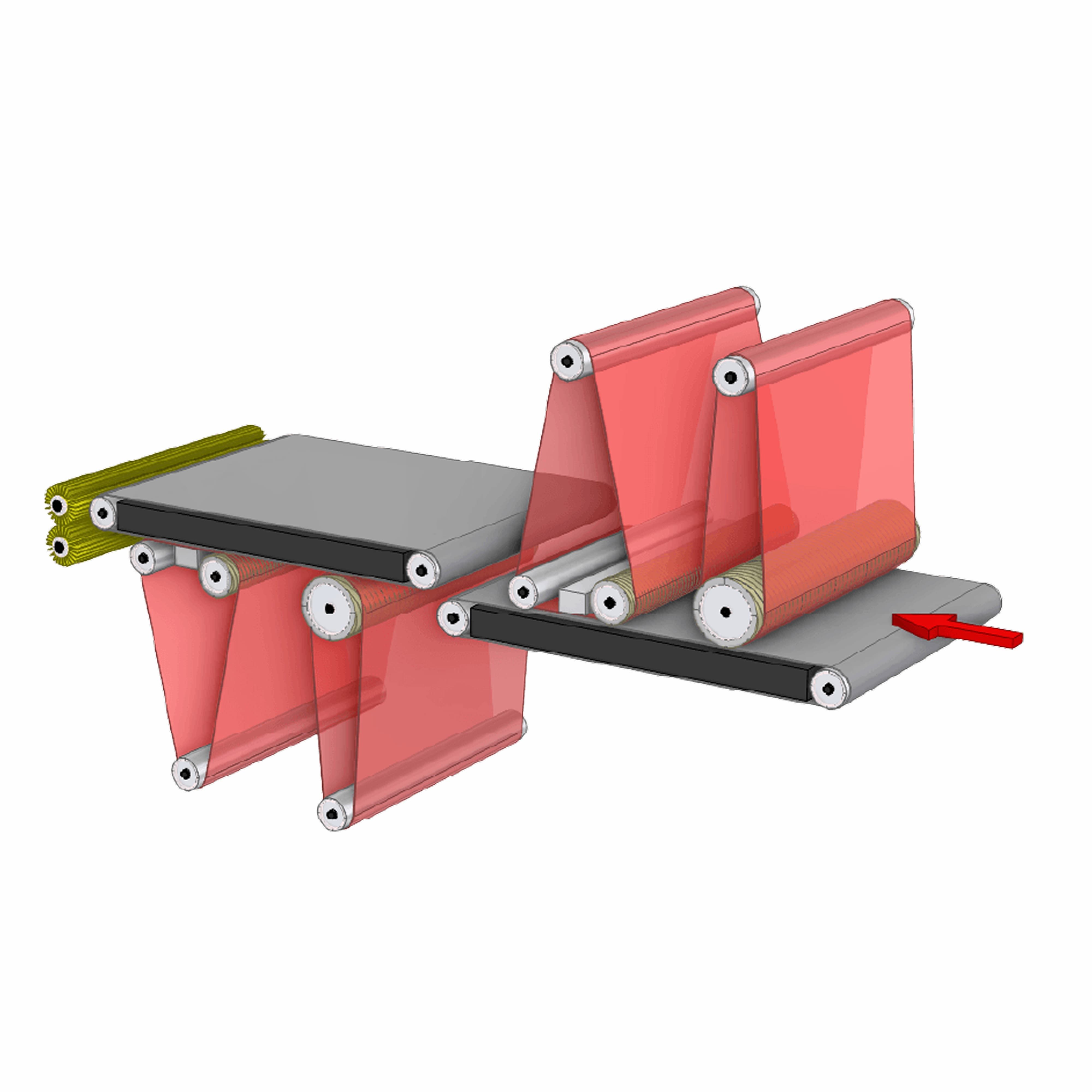

| Heads Configuration | R-R/P : R-R/P |
| Top/Bottom Head 1/3 | Sanding with Rubber Roller; 18.64 KW (25 HP) x 2 Nos. |
| Top/Bottom Head 2/4 | Polishing with Sanding Pad; 15 KW (20 HP) x 2 Nos. |
| Conveyor Speed | 5-35 mpm |
| Conveyor Motor | 3.7 KW (5 HP) X 2 Nos. |
| Vertical Traverse Motor | 3.7 KW (5 HP) |
| Vacuum Blower Motor | 3.7 KW (5 HP) |
| Cleaning Brush Motor | 1.5 KW (2 HP) X 2 Nos. |
| Overall Electrical Power | 85 KW (114 HP) |
| Overall Weight | 12000 Kg |
| Dimensions (L x W x H) | 4300 X 2240 X 2800 mm |
General Specifications
| Abrasive Belt Size | 2620 X 1350 mm |
| Required Air Compressor Capacity | 20 CFM |
| Required Dust Collector Capacity | 12000 CMH |
| Required Dust Collector Power | 15 KW (20 HP) |
