ATLANTIC 3560 2A

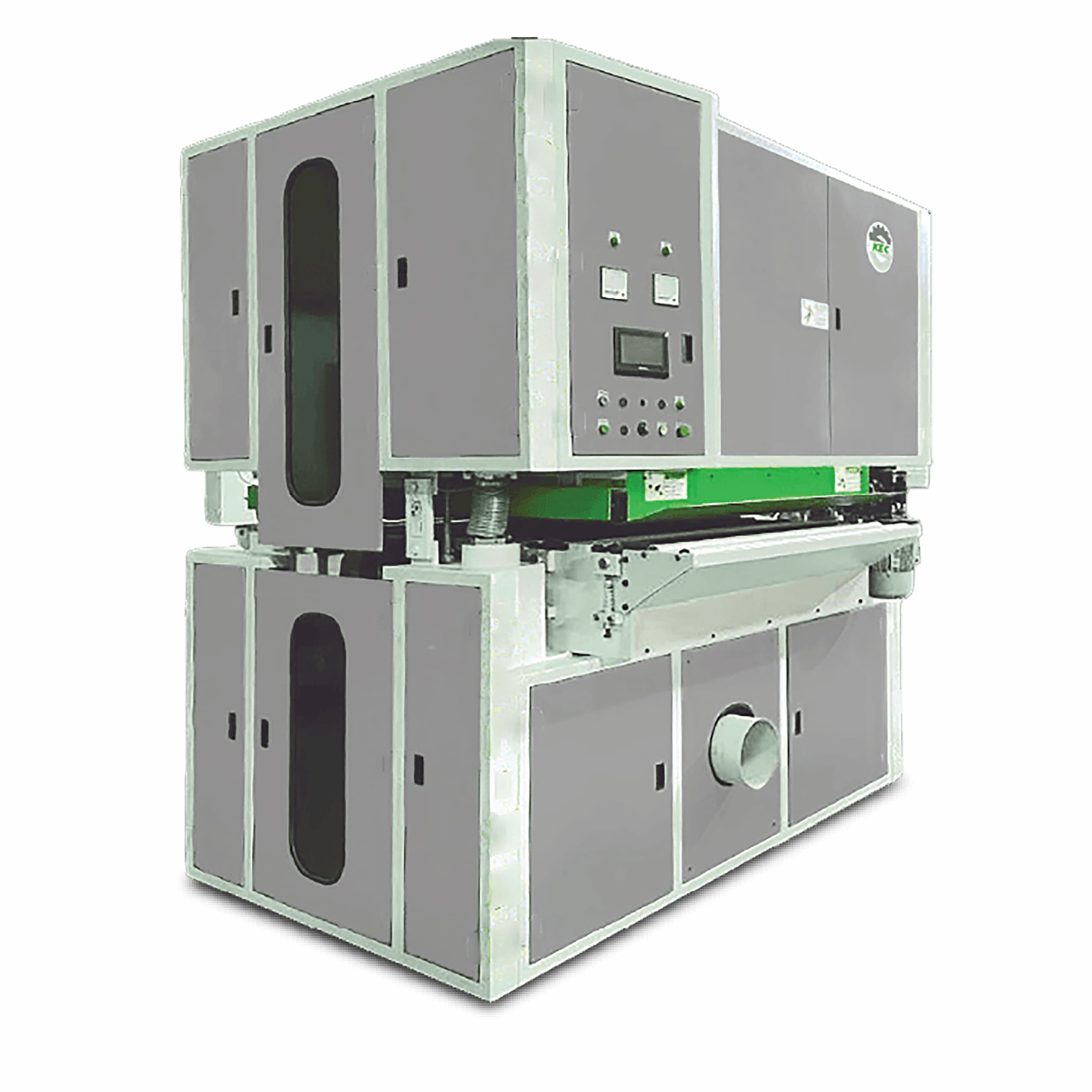

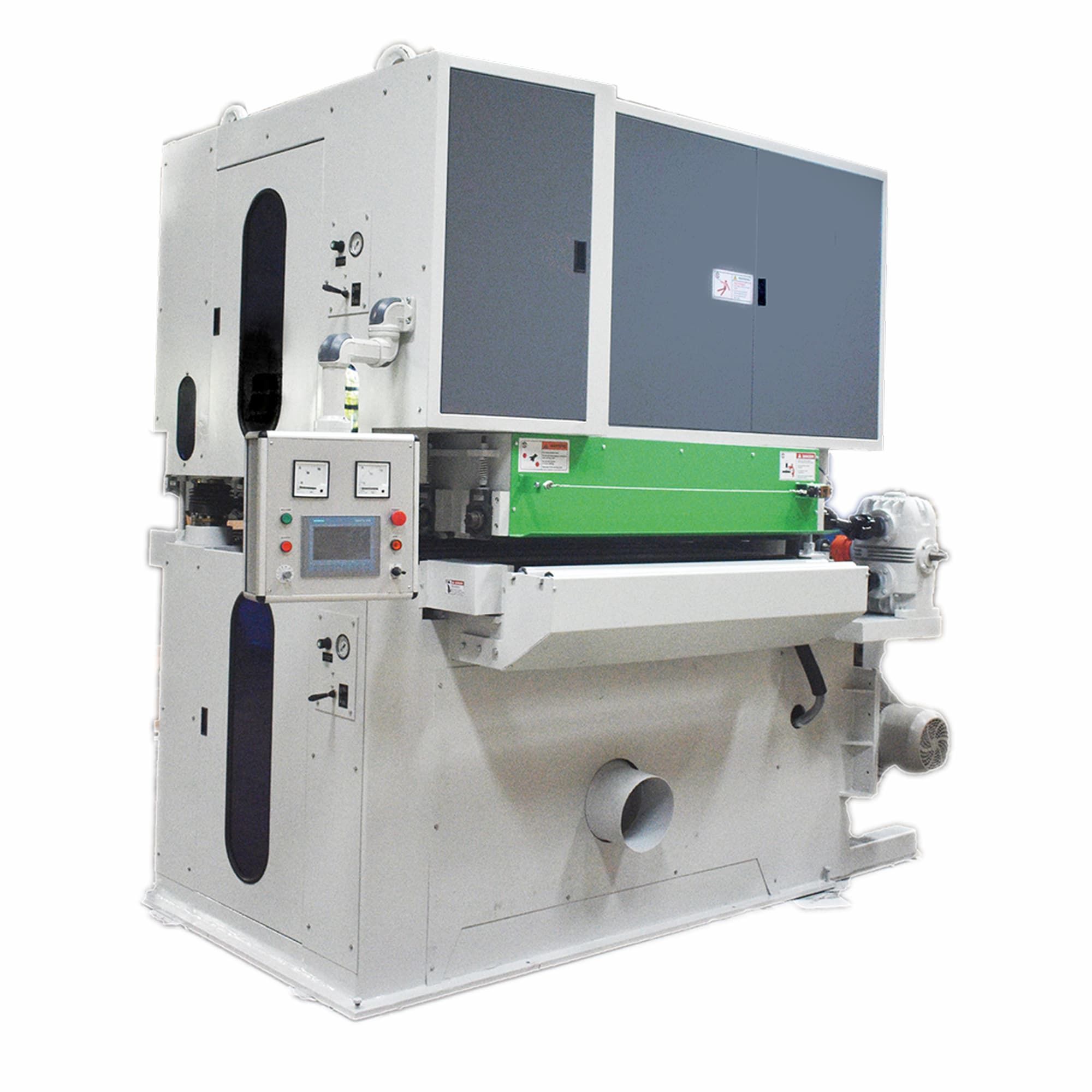

Heavy Duty Both Side Calibrating Machine

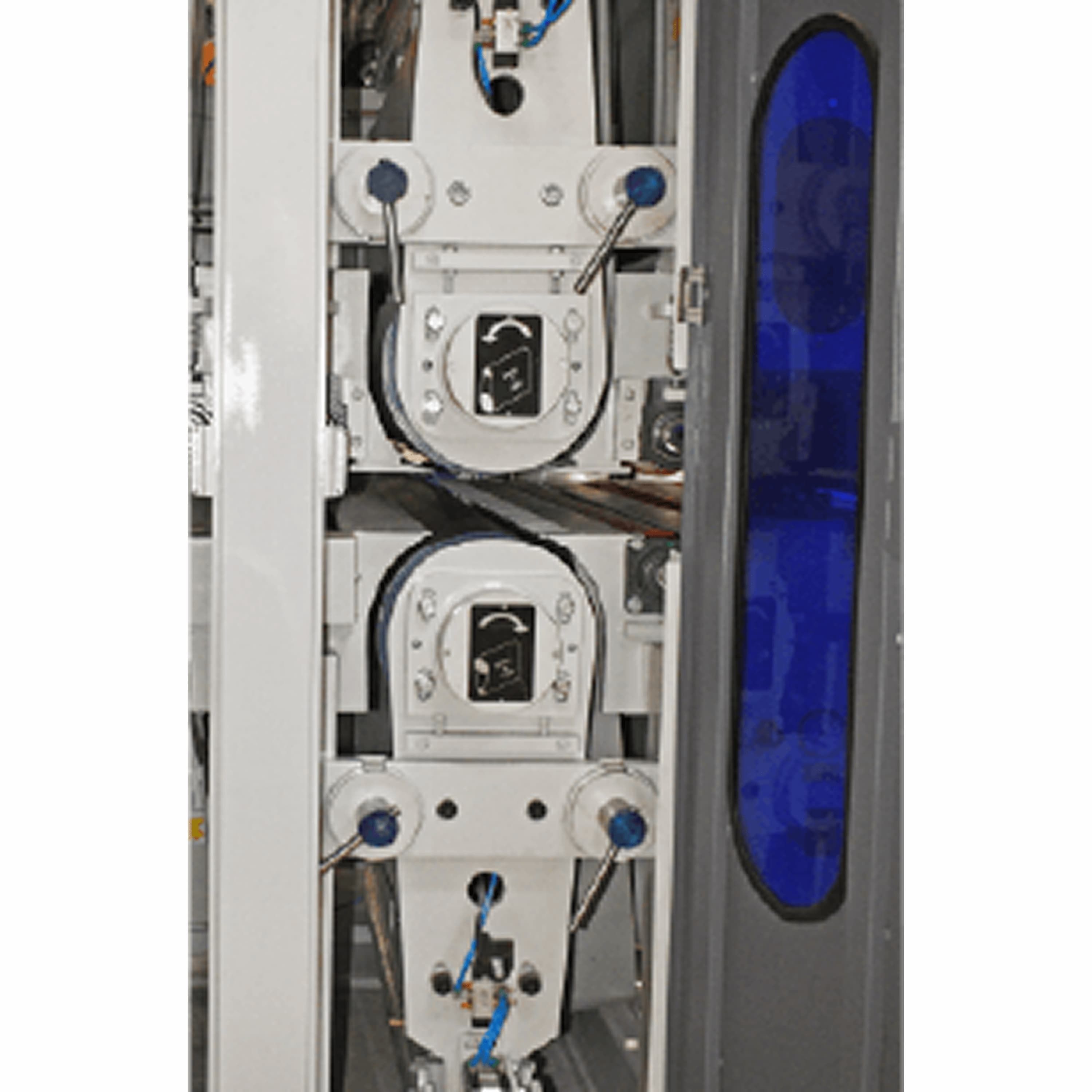

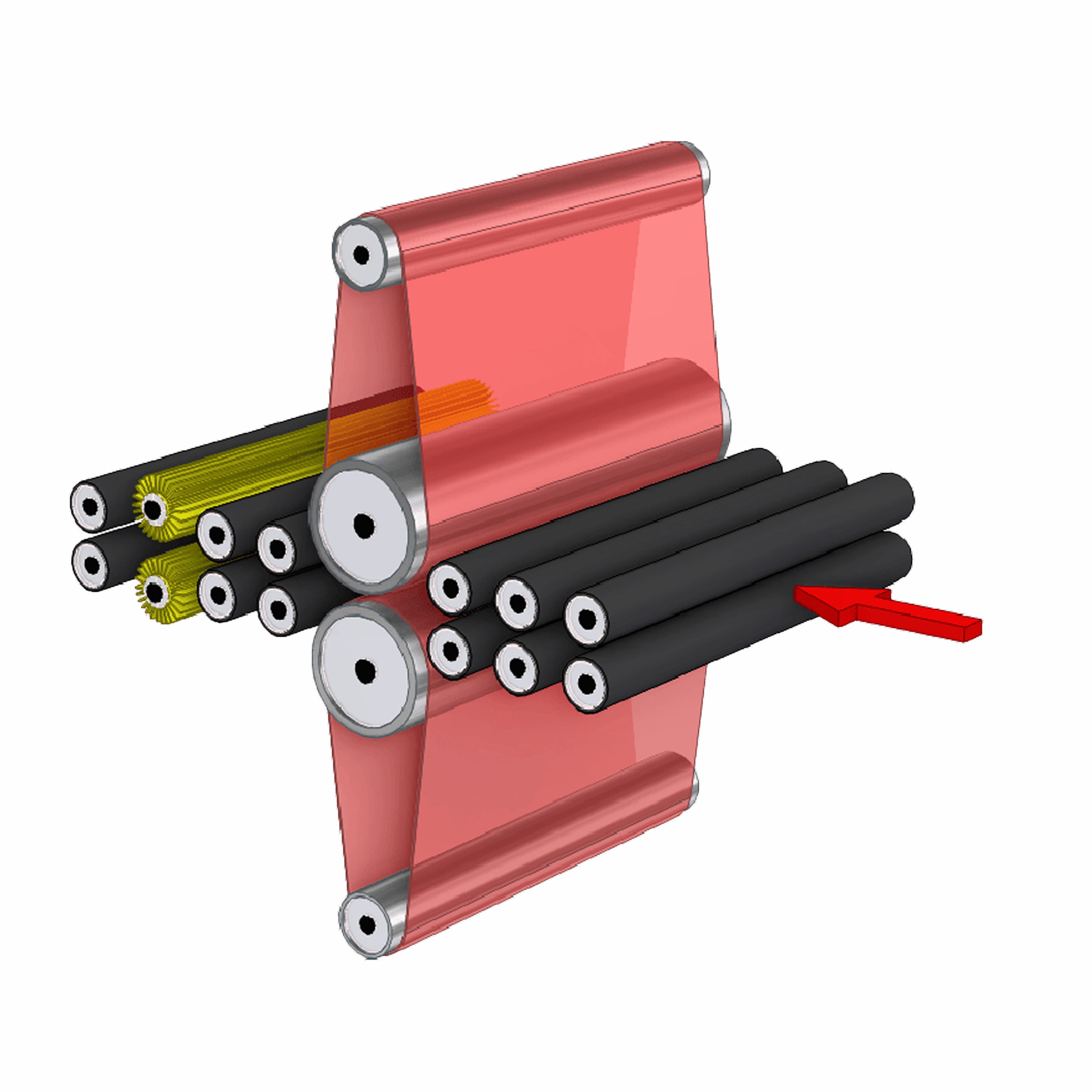

Heavy Duty Both Side Calibrating Machine is built for heavy-duty performance, removing undulations from mat ply using hard chrome rollers precisely balanced through both static and dynamic processes. It features top and bottom calibration with two robust, high-precision rollers, each powered by 45 KW (60 HP) motors, ensuring consistent stock removal even at high linear speeds.
Designed for materials with a typical density of 500 to 700 kg/cbm, it is constructed with a reinforced mild steel frame for maximum stability. With precise center-line workpiece passing, it eliminates unwanted variations, delivering accurately calibrated, high-quality ply.
Specific Features
- Calibrating accuracy upto ±0.05mm
- Smooth performance through belt oscillation system

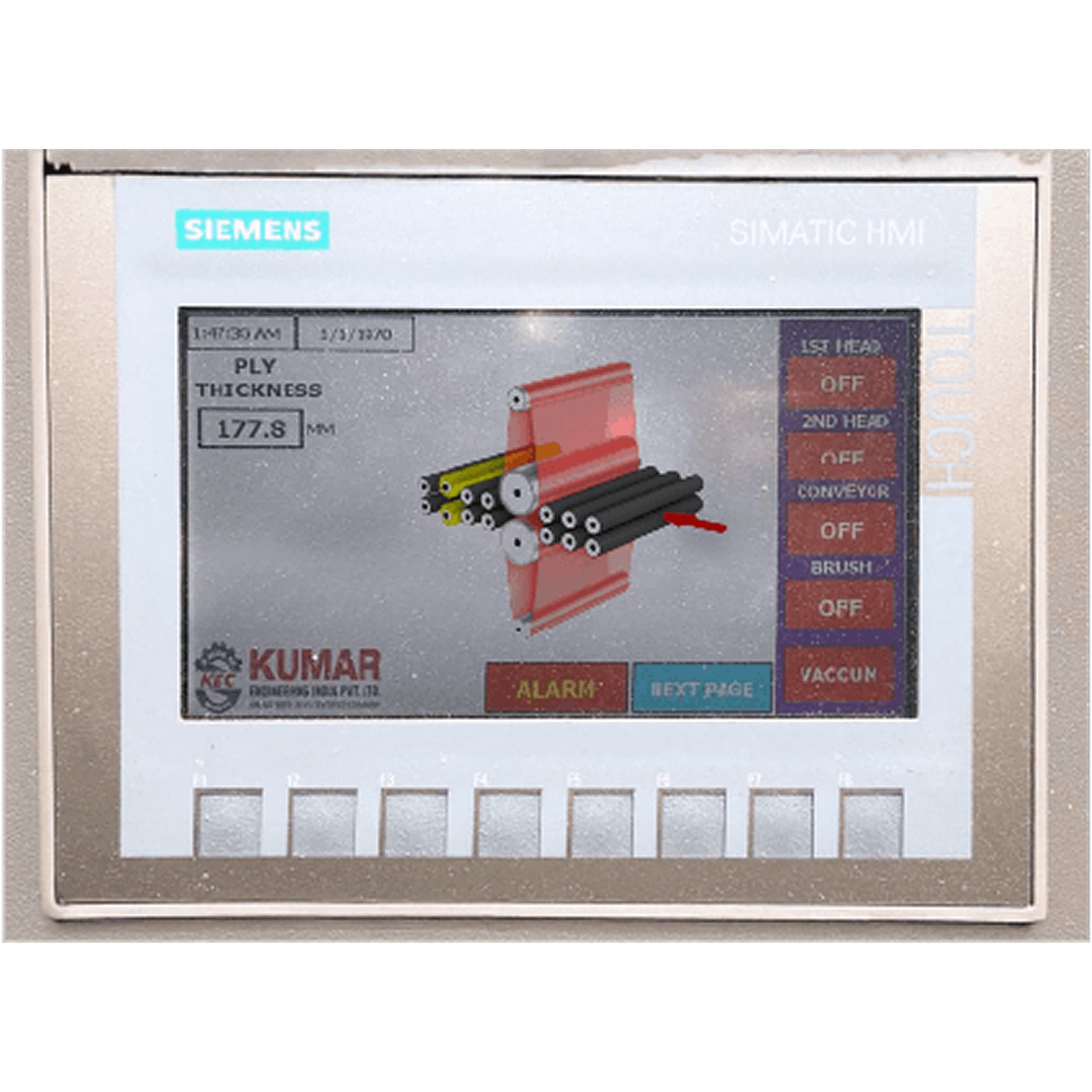

- Advanced control with smart logic systems
- Vibration-free calibration
- Built-in safety for human and machine protection
- Easy to operate
Application
- Ideal for modular kitchen cabinets, wardrobes, furniture and household wood product industries
- Ideal for large scale industries with higher production
Market Expectation
- The demand for perfectly calibrated plywood is growing rapidly due to the rise in modular kitchen cabinets, wardrobes, furniture, and other home wood products
- Top & Bottom calibration with high accuracy
Our Solution
- Calibration accuracy upto ±0.05 mm.
- Our expertly engineered design ensures smooth production with minimal consumables, reducing costs
- With top-tier efficiency, the machine saves substantial energy, maximizing productivity
Technical Specifications
| Working Thickness | 3-100 mm |
| Working Width | 200-1250 mm |
| Number of Heads | Two |
| Heads Configuration | R : R |
| Top and Bottom Head | Calibration with Steel Roller; 45-75 KW ( 60-100 HP) x 2 Nos. |
| Conveyor Speed | 5-25 mpm |
| Conveyor Motor | 7.5 KW (10 HP) |
| Vertical Traverse Motor | 3.7 KW (5 HP) |
| Cleaning Brush Motor | 1.5 KW (2 HP) x 2 Nos. |
| Overall Electrical Power | 104-163 KW (139-219 HP) |
| Overall Weight | 10000 Kg |
| Dimensions (L x W x H) | 2400 X 3200 X 2850 mm |
General Specifications
| Abrasive Belt Size | 2620 X 1350 mm |
| Required Air Compressor Capacity | 20 CFM |
| Required Dust Collector Capacity | 12000 CMH |
| Required Dust Collector Power | 18.64 KW (25 HP) |
