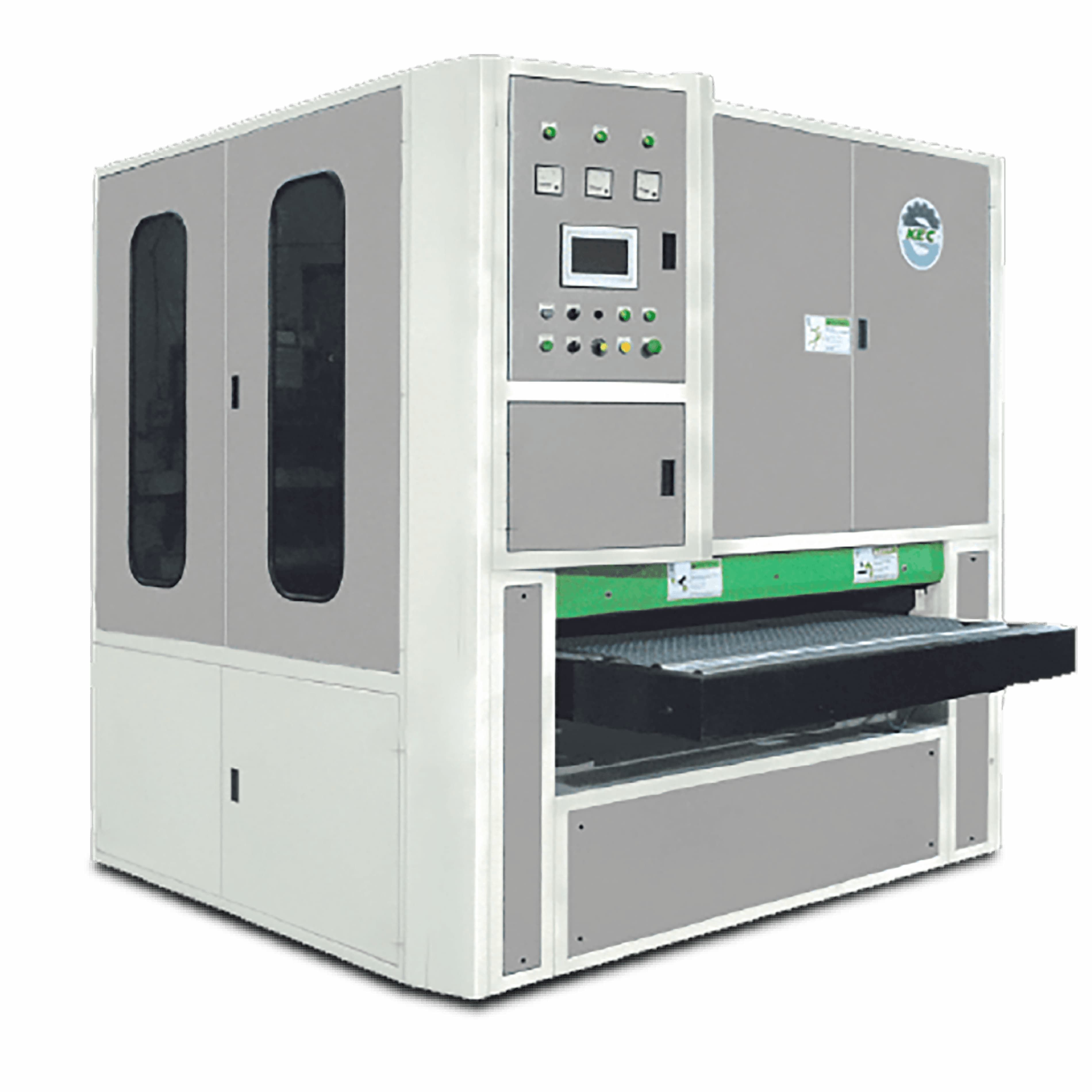

SOLITUDE 3560 T
Triple Head Calibrating & Sanding Machine

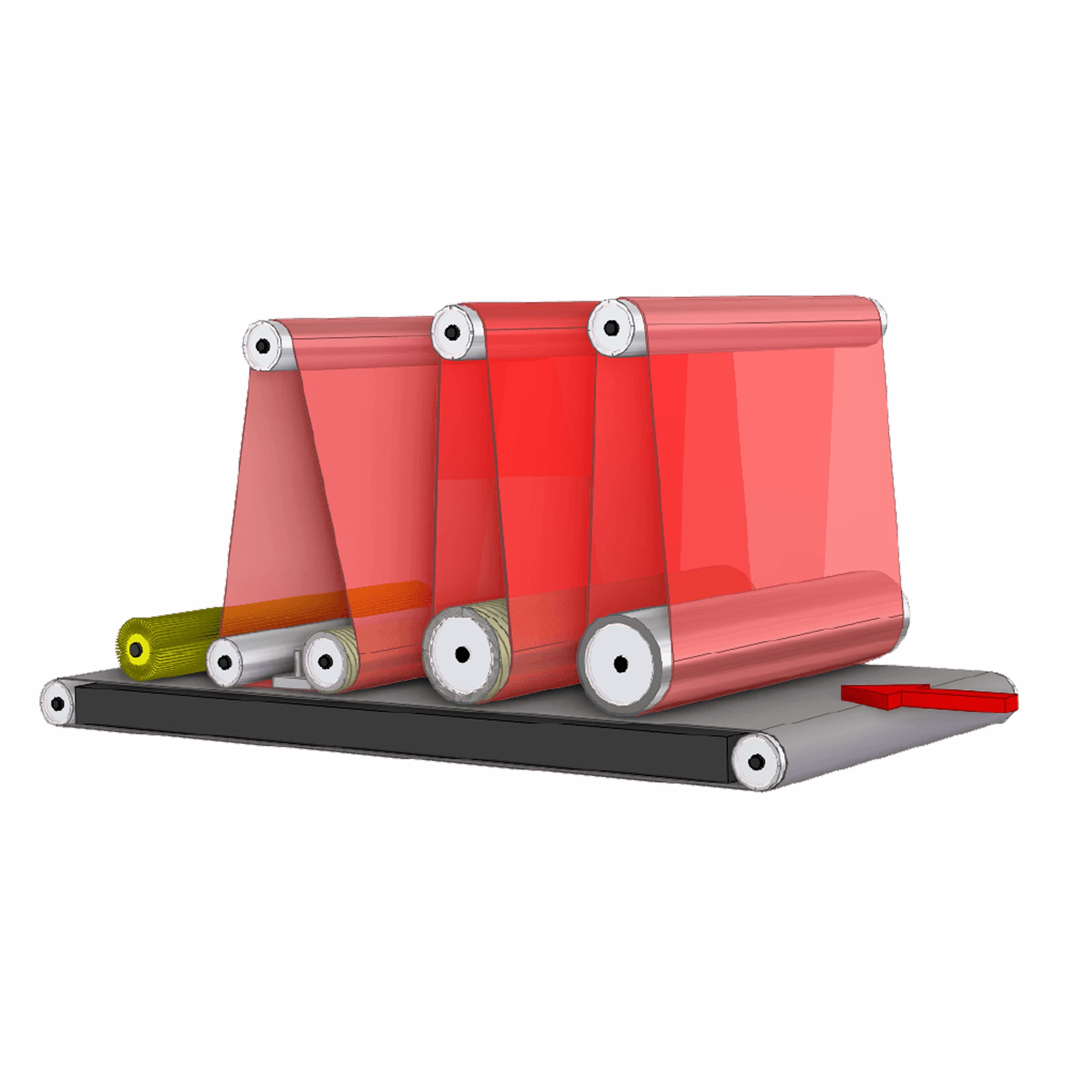

The Triple Head Wide Belt Calibrating & Sanding Machine is designed to meet the needs of industries requiring both precise calibration and fine surface sanding on a single panel side. It features a powerful 40 HP (30 KW) steel roller for calibration, followed by two additional heads—a soft rubber roller and a pneumatic pad—for fine sanding.
This versatile setup allows for efficient, multi-stage processing in a single machine. The first head handles rough calibration, while the second and third heads are used for fine sanding, delivering a perfectly smooth and glossy finish.
Specific Features
- Heavy-duty steel roller for precise calibration
- Soft rubber roller and pneumatic pad for fine sanding
- Multi-stage processing in a single pass
- Cost-effective, space-saving design
Application
Ideal for manufacturers of high-quality plywood, furniture panels, and other wood products requiring precise calibration and fine surface finishing. It is especially suited for medium-sized industries aiming to maintain high standards without heavy capital investment.
Market Expectation
The market demands precise calibration and superior surface finishing for premium panels. The market requires consistent thickness, glossy finish and smooth surface meeting the high standards of the furniture and panel manufacturing industry.
Our Solution
Our machine combines calibration and fine sanding in a single, compact design, reducing capital costs and operational expenses. It is engineered for reliability, minimal maintenance, and energy efficiency, making it a smart investment for manufacturers focused on quality and cost control.
Technical Specifications
| Working Thickness | 2-100 mm |
| Working Width | 200-1250 mm |
| Number of Heads | Three |
| Heads Configuration | R - R - R/P |
| Top - Head 1 | Calibration with Steel Roller; 30 KW (40 HP) |
| Top - Head 2 | Sanding with Rubber Roller; 18.64 KW (25HP) |
| Top - Head 3 | Polishing with Sanding Pad; 15 KW (20 HP) |
| Conveyor Speed | 5-35 mpm (Sanding) & 5-25 mpm (Calibration) |
| Conveyor Motor | 3.7 KW (5 HP) |
| Vertical Traverse Motor | 0.75 KW (1 HP) |
| Cleaning Brush Motor | 0.75 KW (1 HP) |
| Overall Electrical Power | 68.6 KW (92 HP) |
| Overall Weight | 5700 Kg |
| Dimensions (L x W x H) | 3000 X 2240 X 2400 mm |
General Specifications
| Abrasive Belt Size | 2620 X 1350 mm |
| Required Air Compressor Capacity | 20 CFM |
| Required Dust Collector Capacity | 6000 CMH |
| Required Dust Collector Power | 15 KW (20 HP) |
