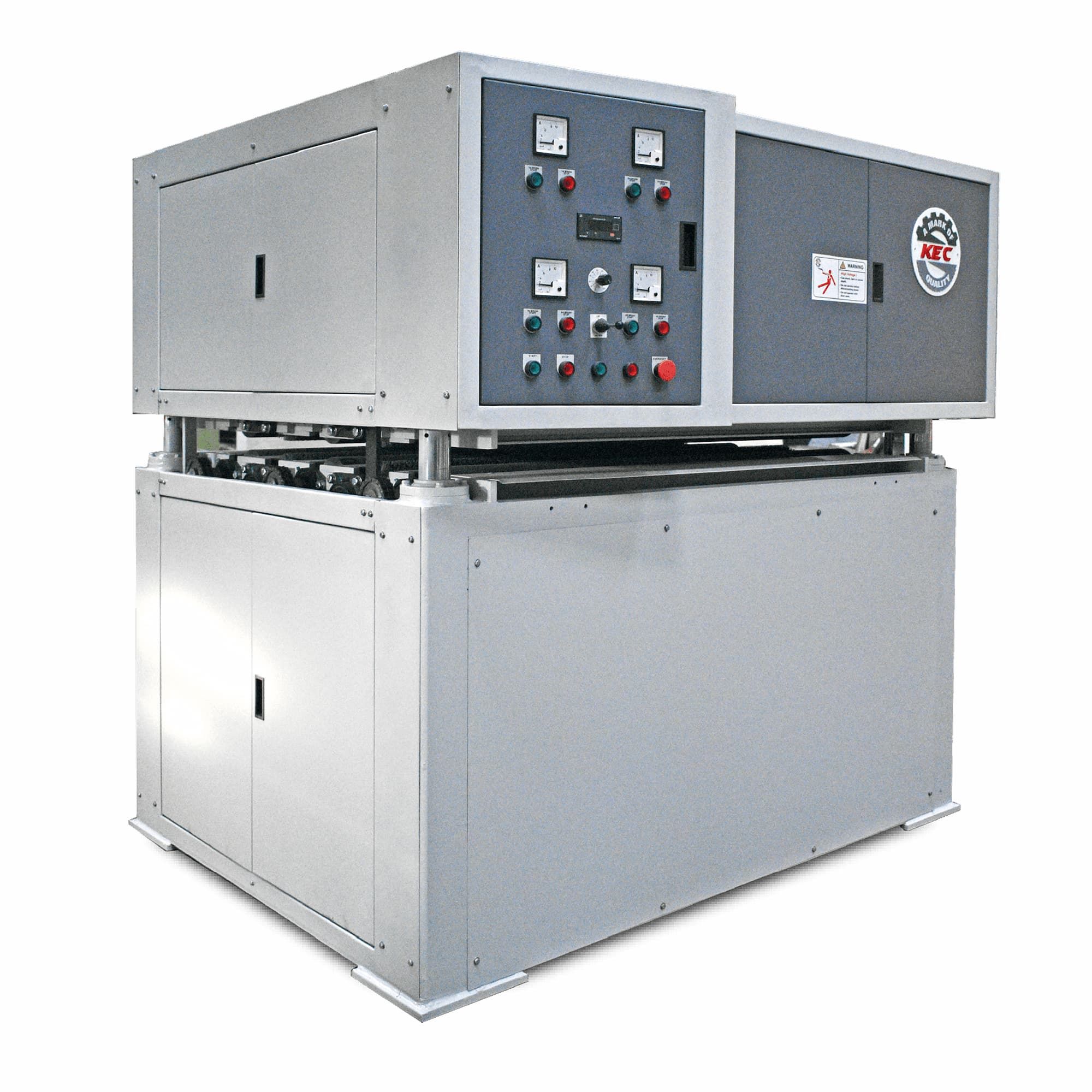

CONIFOROUS-3HB6
Triple Head Both Side Brushing Machine
The Triple Head Brush Sanding Machine is designed specifically for the plywood industry, with a focus on meeting the cost-sensitive requirements of manufacturers in regions like Perumbavoor, Kerala. This machine offers an economical solution for basic surface preparation, effectively removing glue marks and surface roughness at a lower cost than more precision-oriented equipment.

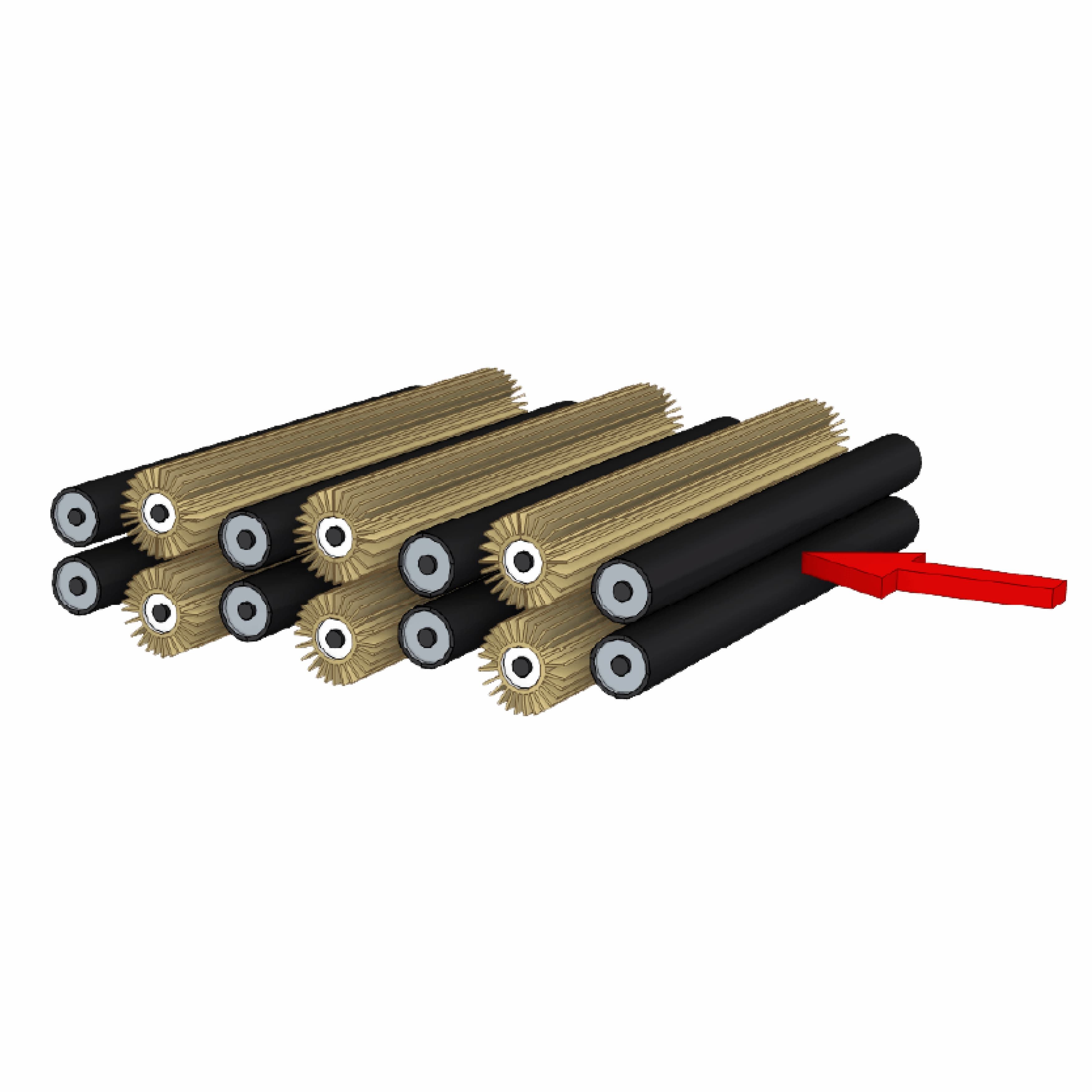

It features six brushes—three on the top and three on the bottom—each powered by a 5 HP motor, providing ample strength for mass production. The conveyor system, driven by a 3 HP motor, ensures smooth and consistent panel movement, making this machine ideal for high-volume, budget-friendly plywood production.
Specific Features
- Double-sided sanding for efficient processing
- Six independent brushes for comprehensive surface cleaning
- Economical power consumption with 5 HP brush motors
- User-friendly PLC touch screen control for easy operation
- Cost-effective design for mass-market production
- Built-in safety for human and machine protection.
Application
This machine is ideal for plywood manufacturers focusing on basic surface preparation, where the primary requirement is to remove glue marks and surface roughness. It is particularly suitable for low-cost plywood production, offering a practical, high-speed solution for mass-market applications.
Market Expectation
Manufacturers in this segment prioritize cost efficiency, high production speed, and reliable operation over precision. They seek machines that can deliver acceptable surface quality with minimal maintenance and operating costs, allowing them to remain competitive in the volume-driven market.
Our Solution
Our Triple Head Brush Sanding Machine is engineered to meet these exact needs, providing an affordable yet effective solution for large-scale plywood production. With its robust construction and energy-efficient design, it ensures high output at minimal cost. The machine’s easy-to-use interface and low maintenance requirements further enhance its appeal, making it a valuable asset for cost-conscious manufacturers.
Technical Specifications
| Working Thickness | 4-100 mm |
| Working Width | 200-1250 mm |
| No. of Heads | Six |
| Top and Bottom - Head 1 | Brushing with Brush Roller; 5 HP (3.7 KW) x 2 no. |
| Top and Bottom - Head 2 | Brushing with Brush Roller; 5 HP (3.7 KW) x 2 no. |
| Top and Bottom - Head 3 | Brushing with Brush Roller; 5 HP (3.7 KW) x 2 no. |
| Feeding Speed | 5-30 mpm |
| Feed Motor | 3 HP (2.2 KW) |
| Vertical Motion Motor | 1 HP (0.75 KW) |
| Total Power | 34 HP (25.5 KW) |
| Weight | 2900 Kg |
| Dimensions | 2100 X 1800 X 1950 mm |
