SOLITUDE-WD-2541

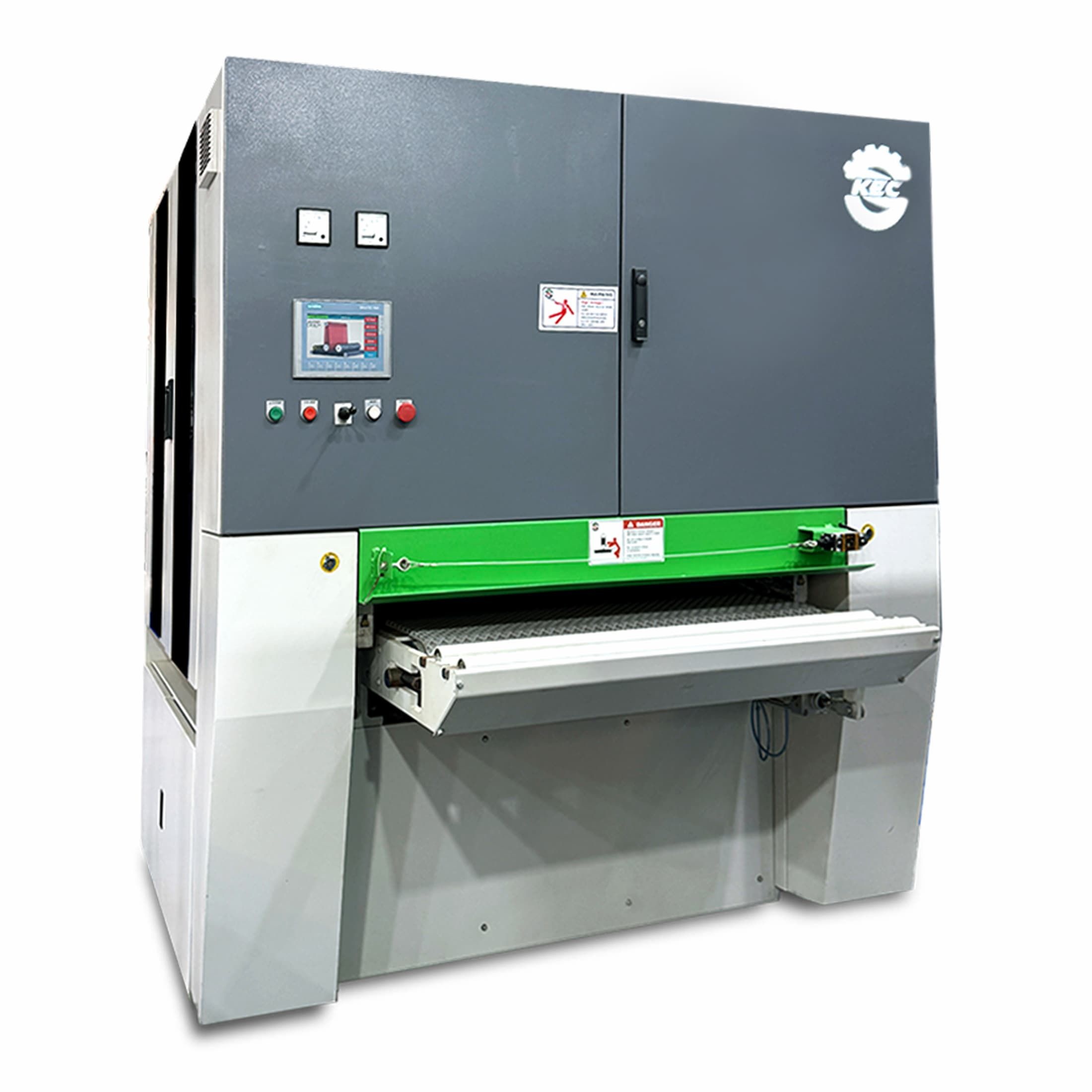

Solid Wood Calibrating & Sanding Machine

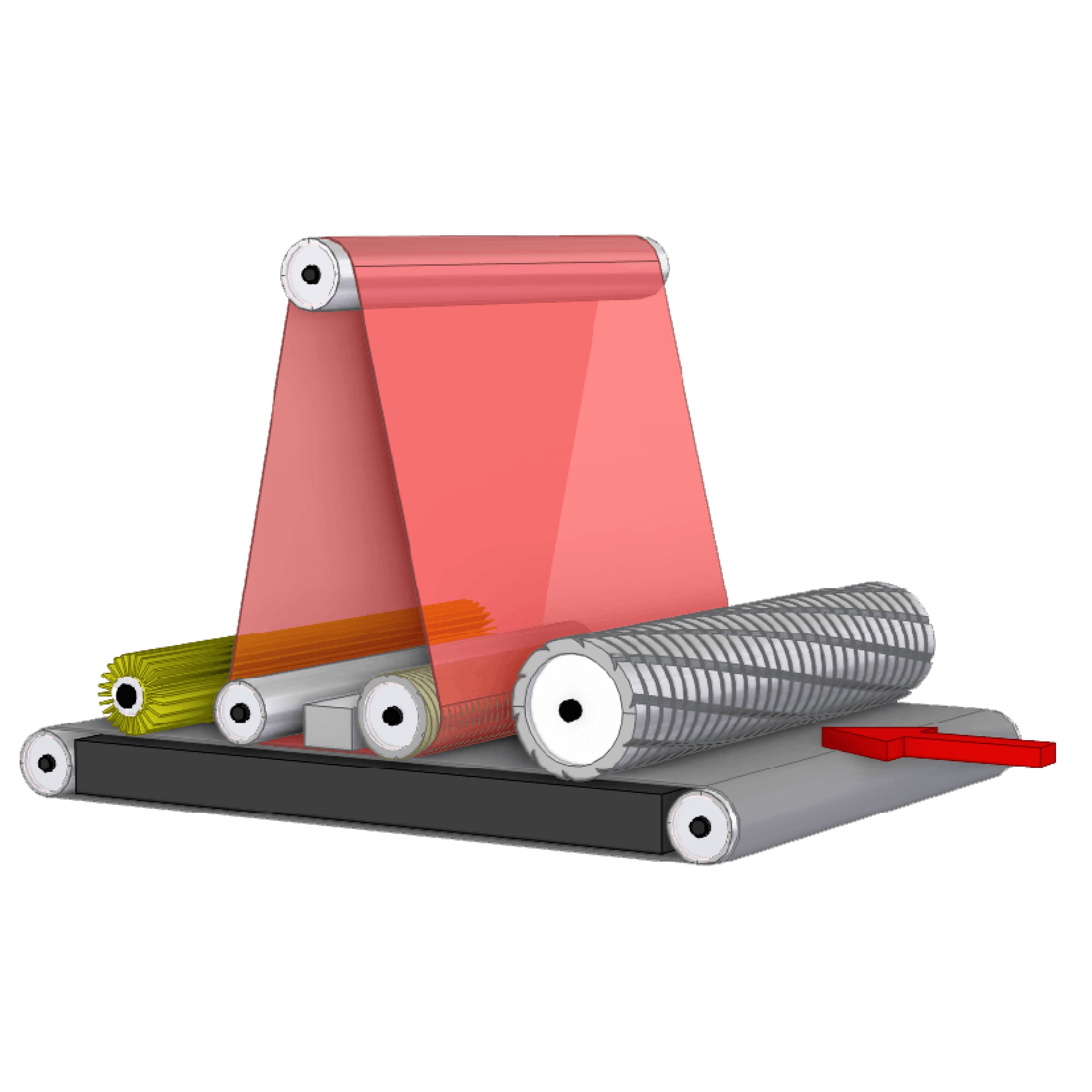

This model is specifically designed for furniture manufacturers to effectively remove thickness variations in solid wood parts using a Spiral Cutter Roller. The roller features a precise diameter and multiple cutting tips that can be used from all four sides. The rough surface created by the cutter is then smoothed by the second head, which includes a contact roller and supporting roller.
This machine ensures that wooden pieces are uniformly sized and have a completely smooth surface. It operates at a standard linear speed of 30 meters per minute, which can be increased up to 40 meters per minute when required.
Specific Features
- Spiral Cutter Roller designed for high RPM, ensuring soundless, vibration-free operation
- Precisely cuts oversized thickness with sharpened square cutting tips
- Tips can be rotated 90 degrees when blunt, offering extended usage
- Economizes operation costs through reusable cutting tips on all sides
Application
- Essential for furniture manufacturing units to enhance quality and speed
- Capable of processing all wood products into precise, uniform, and high-quality surfaces
Market Expectation
- Size variation is unacceptable in the market, achievable only with a perfectly designed machine
- Features adjustable parameters to deliver the required precision and consistency
Our Solution
- Specifically designed cutter for accurate calibration of hardwood
- Incorporated with the latest technology to meet industry challenges
- Adjustable settings for diverse production requirements
Technical Specifications
| Working Thickness | 4-125 mm |
| Working Width | 150-1250 mm |
| Number of Heads | Two |
| Heads Configuration | Cutter - R/P |
| Top - Head 1 | Cutting with Cutter Roller; 11 KW (15 HP) |
| Top - Head 2 | Sanding + Polishing with Sanding Pad; 11 KW (15 HP) |
| Conveyor Speed | 5-25 mpm |
| Conveyor Motor | 3.7 KW (5 HP) |
| Vertical Traverse Motor | 0.37 KW (0.5 HP) |
| Cleaning Brush Motor | 0.75 KW (1 HP) |
| Overall Electrical Power | 27 KW (36.5 HP) |
| Overall Weight | 3400 Kg |
| Dimensions (L x W x H) | 2450 X 2240 X 2400 mm |
General Specifications
| Abrasive Belt Size | 2620 X 1350 mm |
| Required Air Compressor Capacity | 20 CFM |
| Required Dust Collector Capacity | 6000 CMH |
| Required Dust Collector Power | 15 KW (20 HP) |
