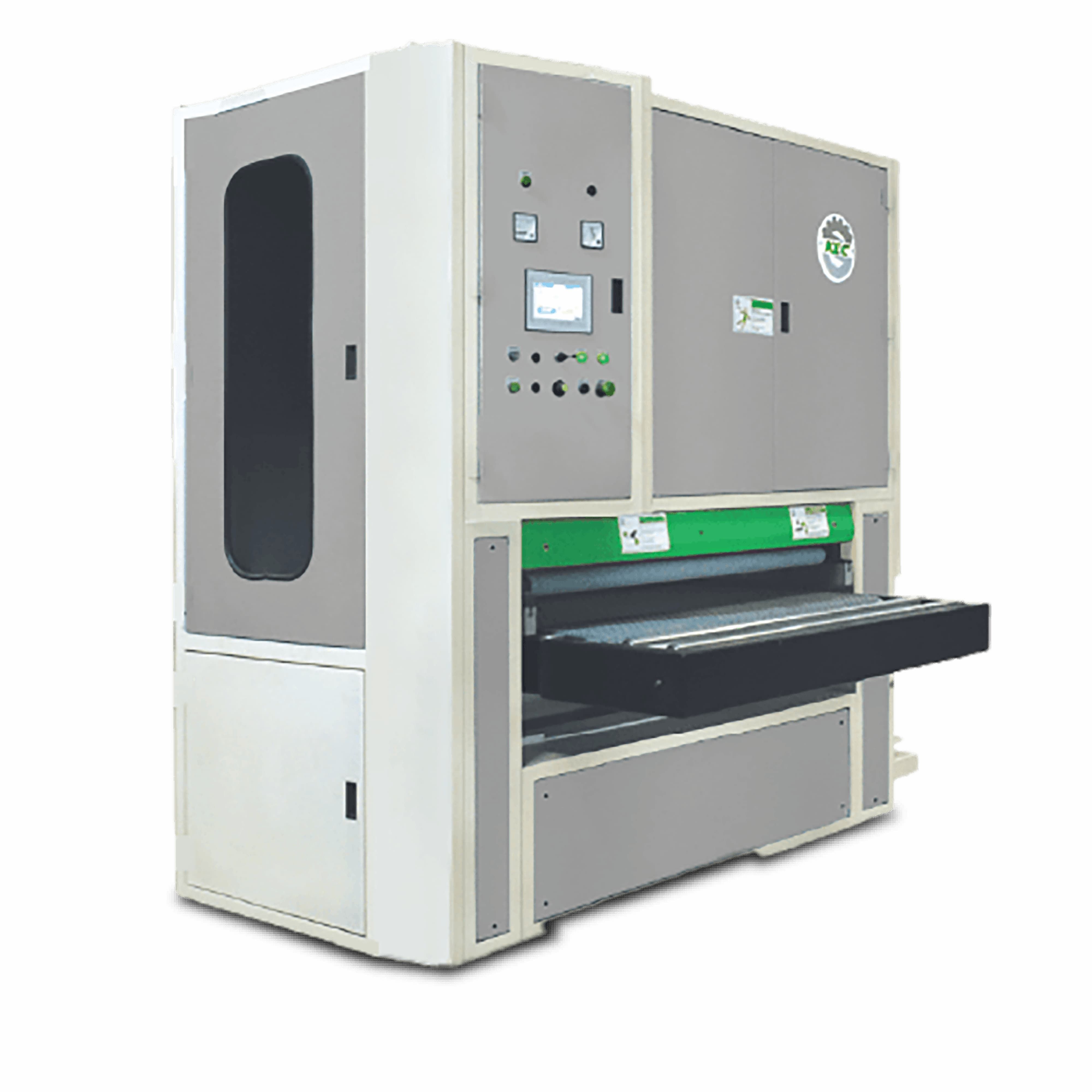

GRACIOUS 1825 A
Single Combi Head Sanding Machine
The Combi Head Sanding Machine is designed for plywood manufacturers with lower production volumes, budget constraints, and tighter production cost challenges. It combines the benefits of both roller and pad sanding in a single head, driven by a single motor, making it a versatile and cost-effective choice.

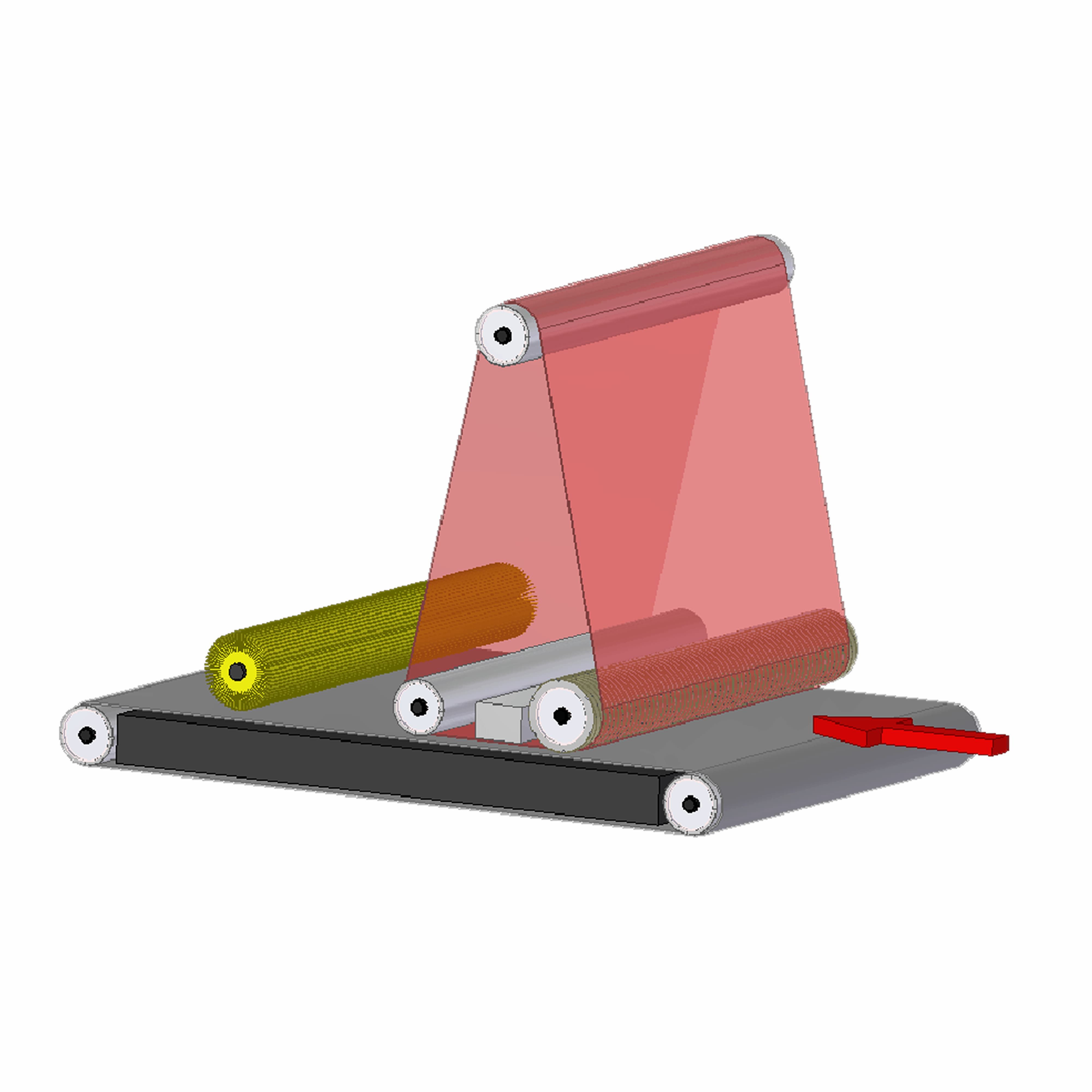

The sanding belt is supported by three specially designed rollers, allowing for precise roller contact, followed by a pneumatically operated pad with an air tube for a fine and even finish. This combination ensures consistent sanding results with a compact, efficient design, making it ideal for smaller operations seeking professional-quality output.
Specific Features
- The principle of best sanding results by roller sanding with pad touching is achieved by this machine with certain limitations of shinning and volume

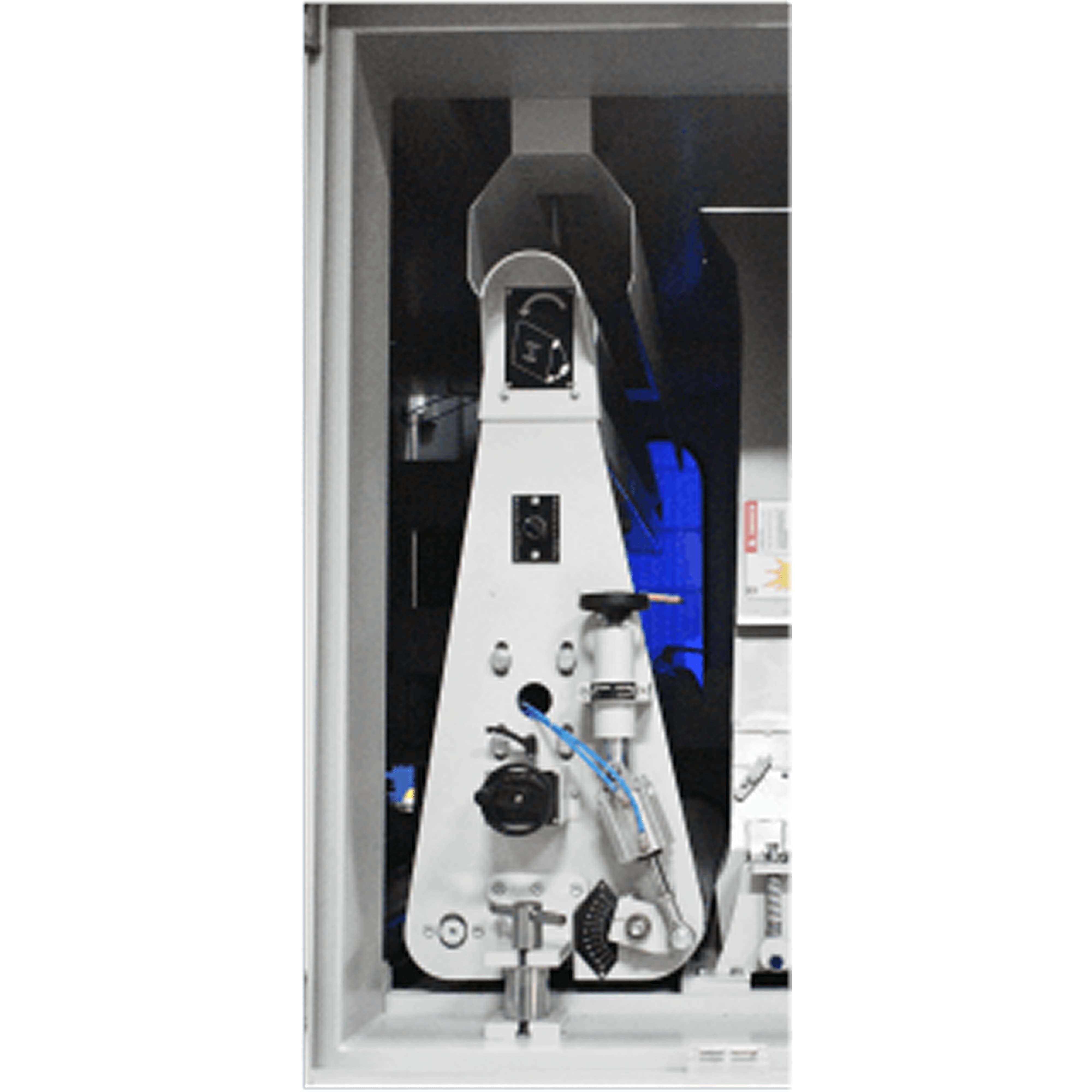

- Roller and pad mounted in a combined fixture mechanism is driven by single motor controlled with VFD and all running functions be controlled with advanced designed logic system
- Integrated safety systems to protect both human and the machine
- Easy to operate
Application
- Commercial sanding with low production volume and moderately accepted sanding results
- Best for small scale industries
Market Expectation
Good sanding results with low cost of ply manufacturing without any "sanding off" rejection
Our Solution
- A perfect fusion of innovation and affordability
- This model is a best solution to bridge the gap between high value machine and small producing industries
Technical Specifications
| Working Thickness | 2-100 mm |
| Working Width | 200-1250 mm |
| Number of Heads | One |
| Heads Configuration | R/P |
| Top Head | Sanding + Polishing with Sanding Pad; 18.64 KW (25 HP) |
| Conveyor Speed | 5-35 mpm |
| Conveyor Motor | 2.2 KW (3 HP) |
| Vertical Traverse Motor | 0.37 KW (0.5 HP) |
| Cleaning Brush Motor | 0.75 KW (1 HP) |
| Overall Electrical Power | 22 KW (29.5 HP) |
| Overall Weight | 2800 Kg |
| Dimensions (L x W x H) | 2050 X 2240 X 2400 mm |
General Specifications
| Abrasive Belt Size | 2620 X 1350 mm |
| Required Air Compressor Capacity | 20 CFM |
| Required Dust Collector Capacity | 6000 CMH |
| Required Dust Collector Power | 7.5 KW (10 HP) |
