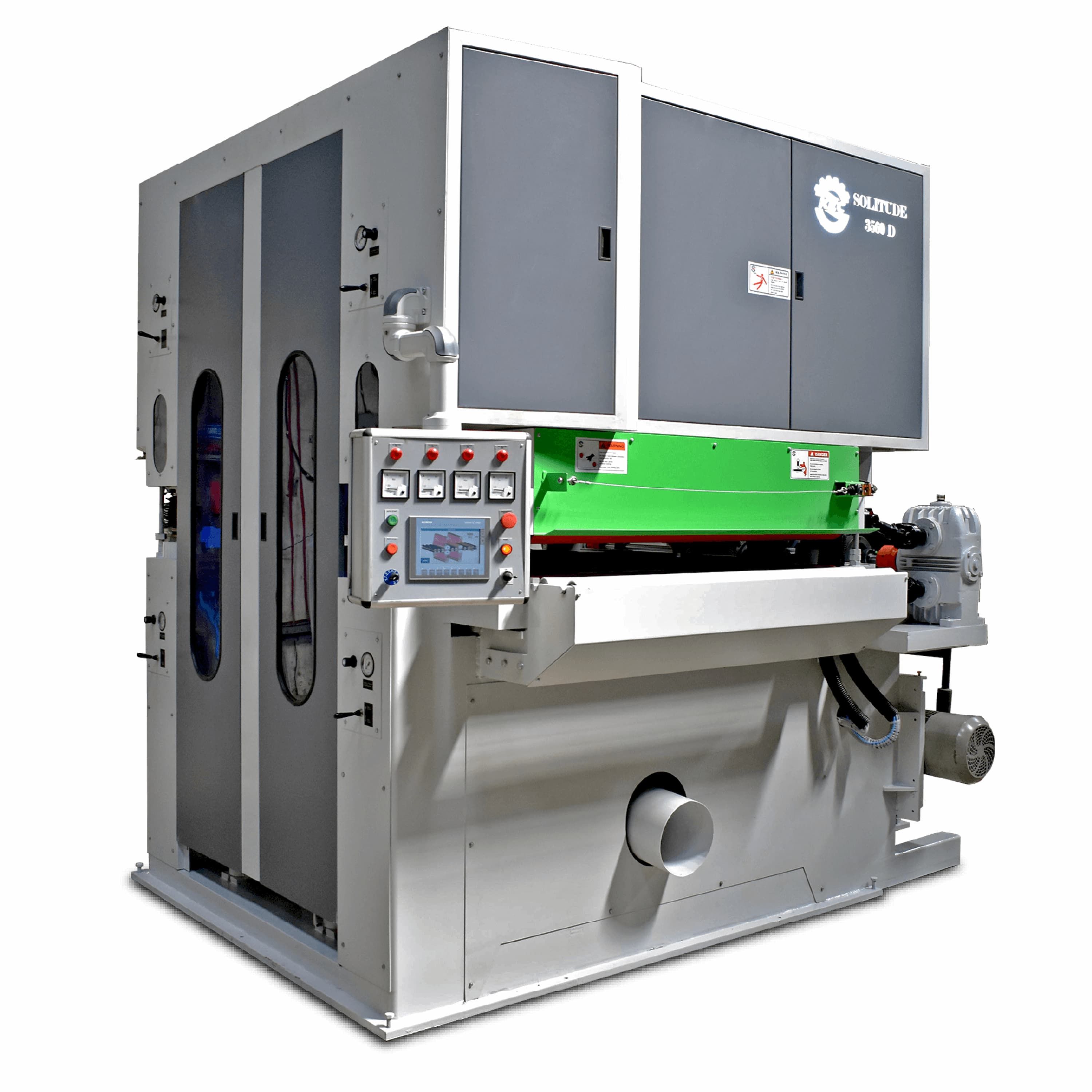

SOLITUDE 3560 D
Heavy Duty Both Side Calibrating and Sanding Machine
This machine was developed to address the need for both precise calibration and surface smoothening. It is engineered for premium plywood production, where the rough finish from calibration needs to be corrected for high-quality results.

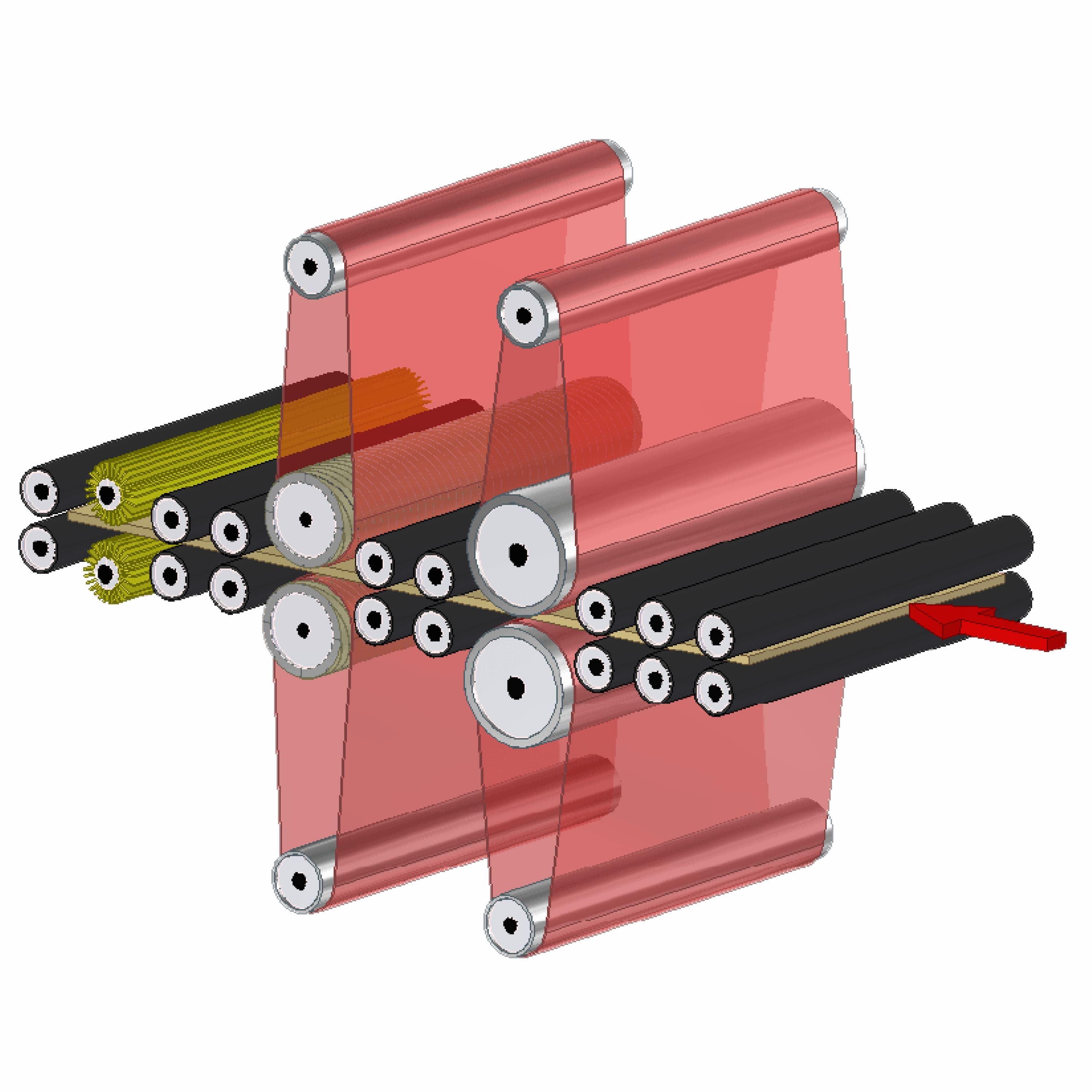

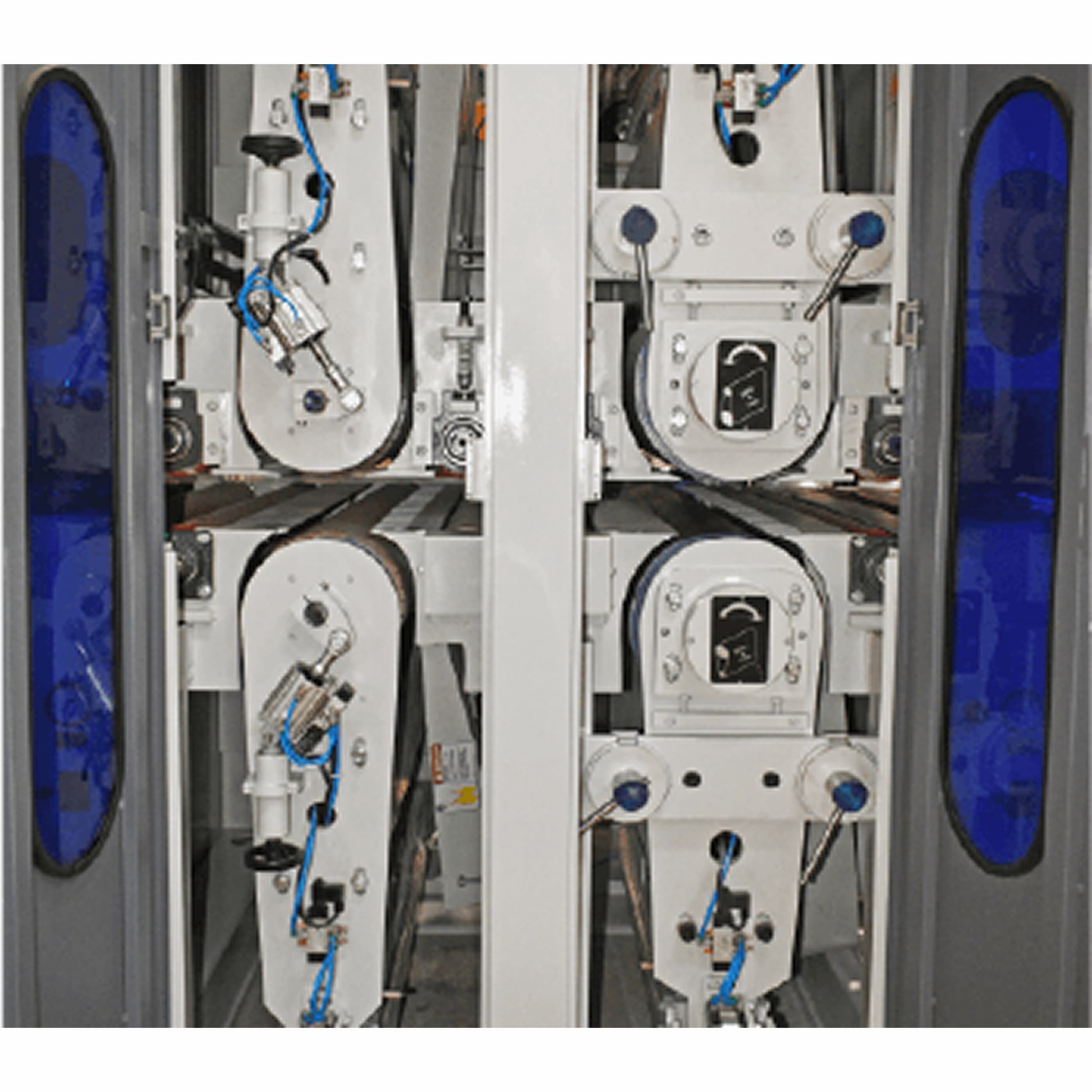

Equipped with dual steel rollers on the top and bottom, it provides exceptional calibration accuracy up to ±0.05mm. This is complemented by soft rubber rollers that effectively smooth the rough surfaces left by thicker calibration belts. This machine ensures superior performance and surface finish, making it ideal for high-end, precision-driven production.
Specific Features
- Precision-calibrated steel rollers for perfect thickness control
- Soft rubber rollers for enhanced surface finishing
- Calibrating accuracy upto ±0.05mm
- High accuracy with better results
- Vibration-free calibration
- Built-in safety for human and machine protection
- Easy to operate
Application
Ideal for premium modular furniture, cabinetry, and other high-end wood products, this machine ensures precise calibration and exceptional surface quality, meeting the highest standards of functionality and finishing.
Market Expectation
- The market demands products with precise thickness control and flawless surface finishes, especially in premium modular kitchens, wardrobes, and cabinetry
- Market expects perfectly calibrated and smoothened panels, eliminating variations
Our Solution
- Our machine is designed for cost-effective, energy-efficient production with minimal consumables, reducing operational costs and downtime
- Its user-friendly design simplifies operations, ensuring consistent, high-quality output for demanding manufacturing environments
Technical Specifications
| Working Thickness | 3-100 mm |
| Working Width | 200-1250 mm |
| Number of Heads | Four |
| Heads Configuration | R:R / R:R |
| Top & Bottom - Head 1 | Calibation with Steel Roller; 45-75 KW (60-100 HP) X 2 Nos. |
| Top & Bottom - Head 2 | Sanding with Rubber Roller; 18.64 KW (25 HP) X 2 Nos. |
| Conveyor Speed | 5-25 mpm |
| Conveyor Motor | 7.5 KW (10 HP) |
| Vertical Traverse Motor | 3.7 KW (5 HP) |
| Cleaning Brush Motor | 1.5 KW (2 HP) X 2 Nos. |
| Overall Electrical Power | 141-200 KW (189-269 HP) |
| Overall Weight | 14000 Kg |
| Dimensions (L x W x H) | 2800 X 3200 X 2850 mm |
General Specifications
| Abrasive Belt Size | 2620 X 1350 mm |
| Required Air Compressor Capacity | 20 CFM |
| Required Dust Collector Capacity | 15000 CMH |
| Required Dust Collector Power | 18.64 KW (25 HP) |
