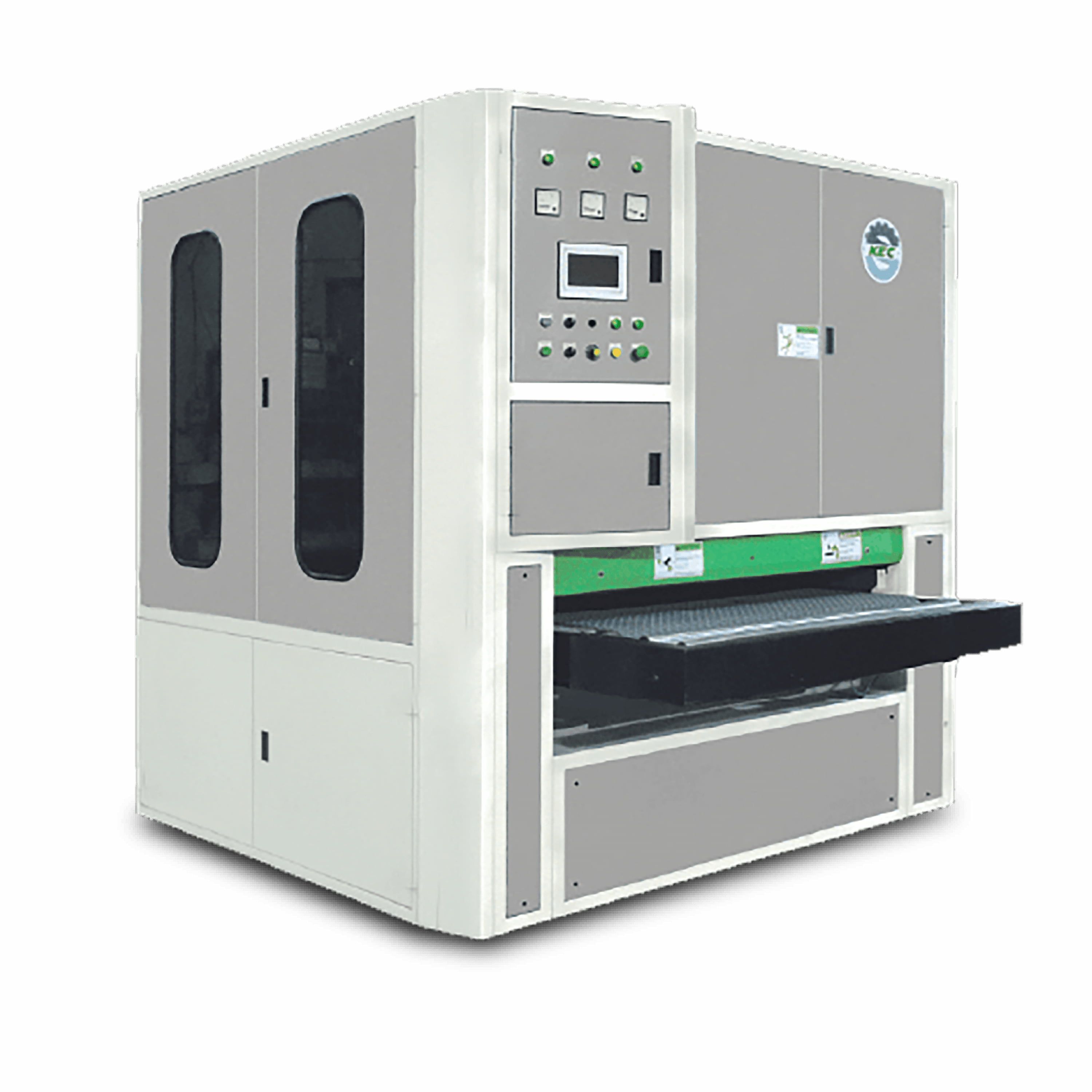

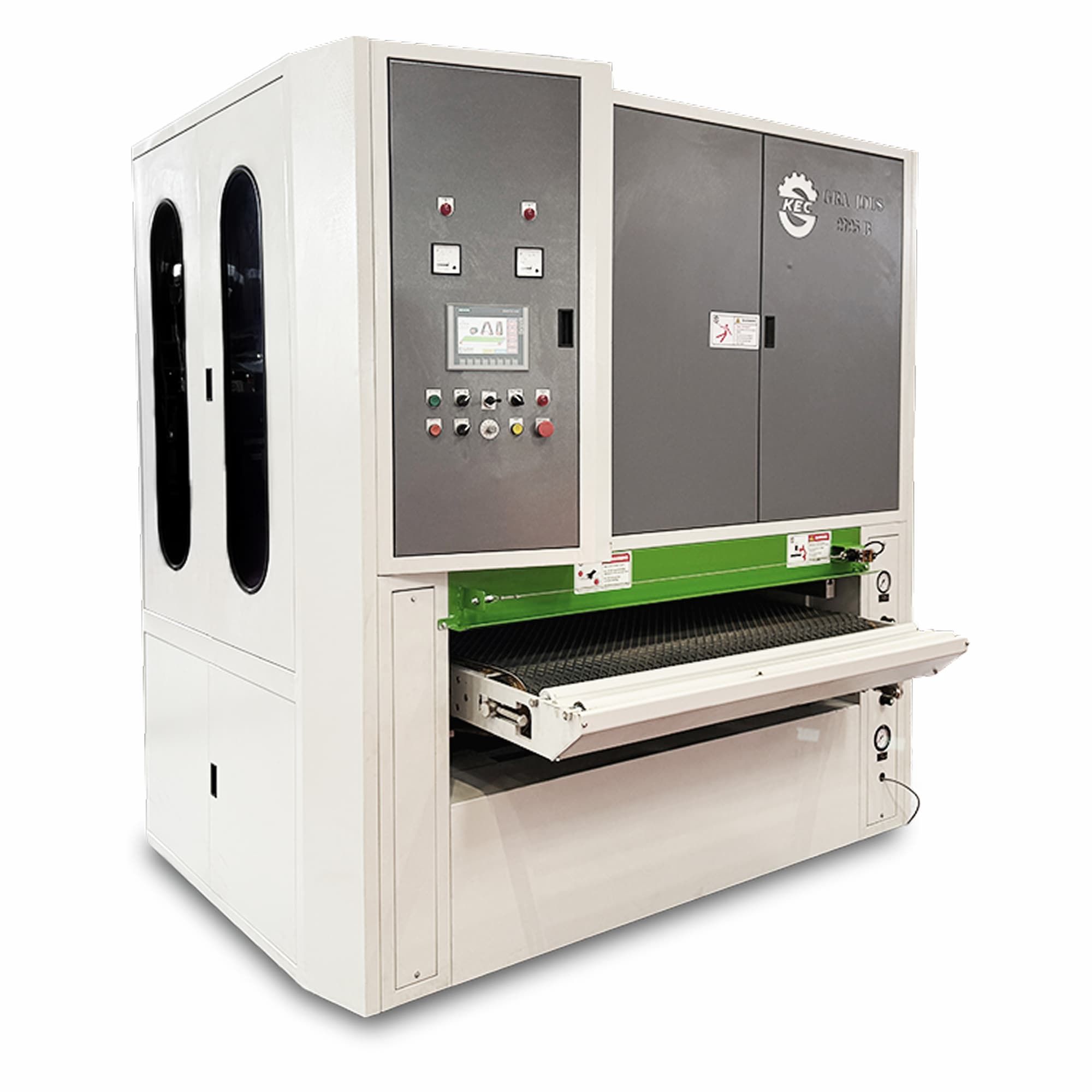

GRACIOUS 2725 B
Double Head Wide Belt Sanding Machine - Top
The Double Head Wide Belt Sanding Machine - Top is designed for commercial and decorative plywood. It features Servo-Controlled Floating Roller Technology on the first head, smartly protecting face veneer even with thickness variations.

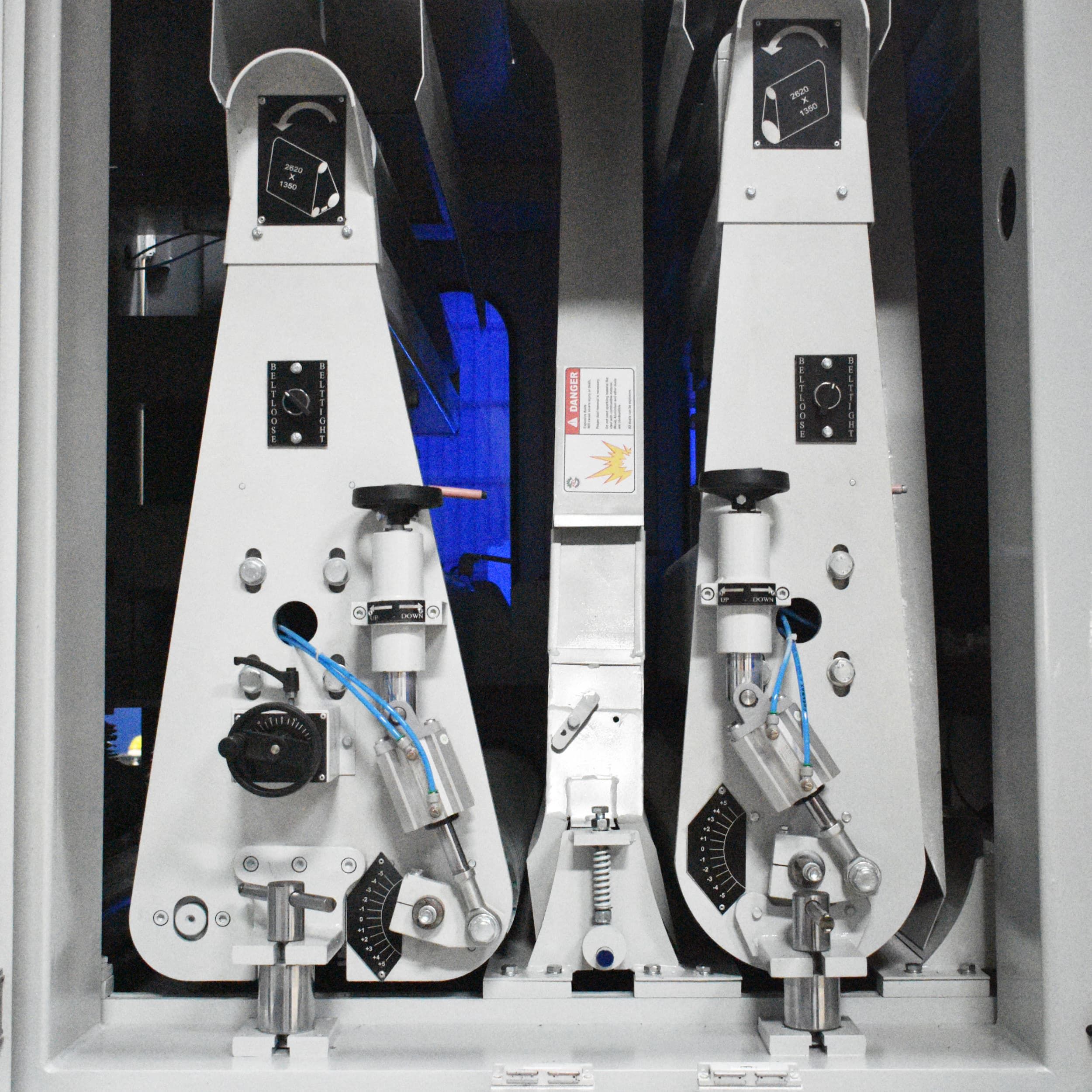

The first head uses high-tech rollers with variable speed for super glossy sanding, while the second head includes a soft roller that can act as a support or sanding roller as needed. With specialized rubber softness, precise diameter and advanced grooving, it ensures a flawless, glossy finish, fully protected against power failures.
Specific Features
- Perfect sanding on uneven thickness
- Highly glossy sanding results
- Fast production rate
- Changeable results by easy configuration setting
- Built-in safety feature for both operator and machine
Application
- Manufacturing unit producing plywood of all grades - commercial & decorative - in all thicknesses & sizes
- Production speed upto 6000 sheets in a day
Market Expectation
- Even sanding from all the corners without any sanding off
- Economical solution for high finishing and glossy touch on the surface of plywood and at the same time being user friendly
Our Solution
- Servo-Controlled Floating Roller Technology smartly protecting face veneer even with thickness variations
- Sanding unit with a combi head unit works in a way which gives a glazing effect on the surface of plywood
- Our well engineered design provides all facilities for smooth production with lowest consumables
- Highest working efficiency, saving considerable energy
Technical Specifications
| Working Thickness | 2-100 mm |
| Working Width | 200-1250 mm |
| Number of Heads | Two |

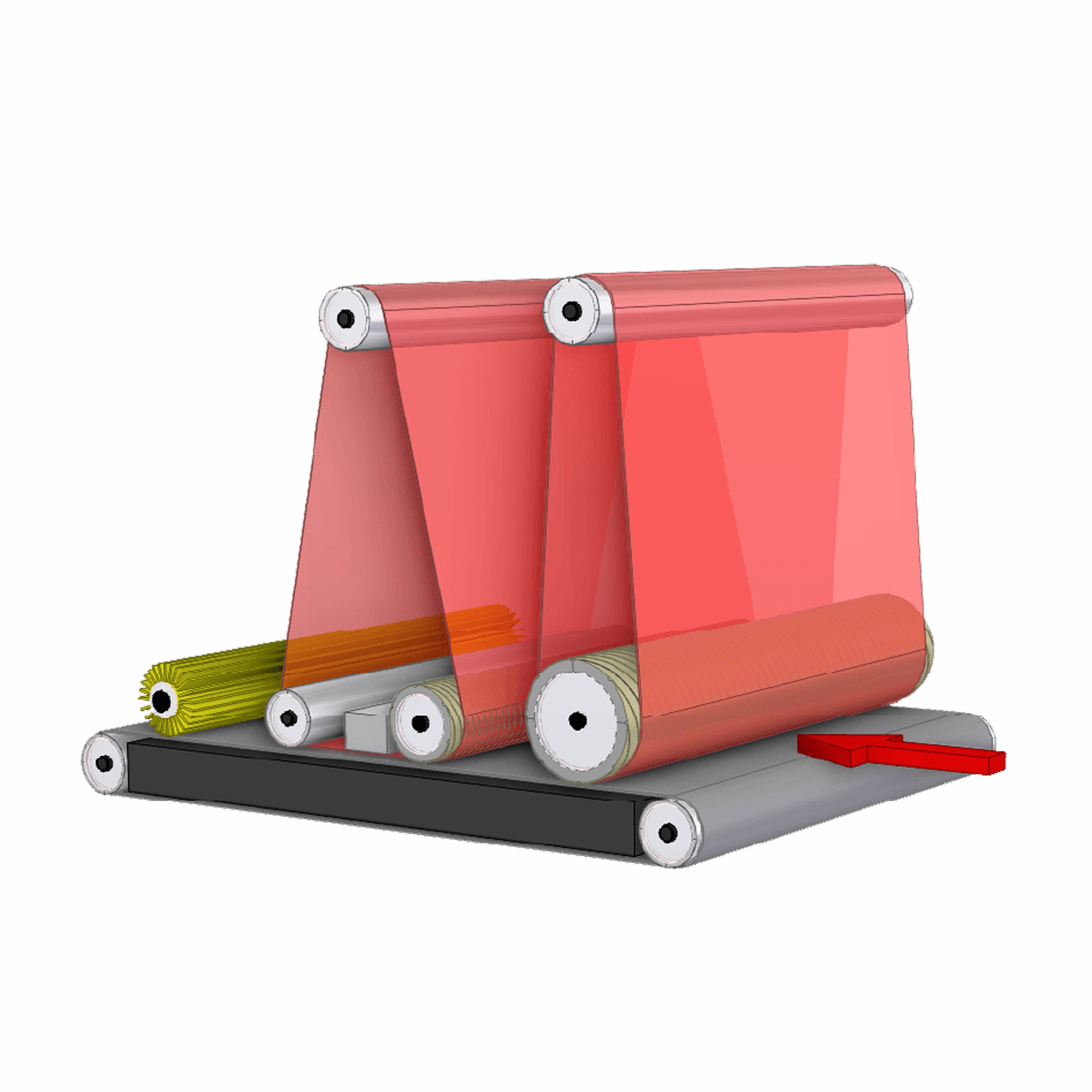

| Heads Configuration | R-R/P |
| Top - Head 1 | Sanding with Rubber Roller; 18.64 KW (25 HP) |
| Top - Head 2 | Polishing with Sanding Pad; 15 KW (20 HP) |
| Conveyor Speed | 5-35 mpm |
| Conveyor Motor | 3.7 KW (5 HP) |
| Vertical Traverse Motor | 0.37 KW (0.5 HP) |
| Cleaning Brush Motor | 0.75 KW (1 HP) |
| Overall Electrical Power | 38.4 KW (51.5 HP) |
| Overall Weight | 3950 Kg |
| Dimensions (L x W x H) | 2450 X 2240 X 2400 mm |
General Specifications
| Abrasive Belt Size | 2620 X 1350 mm |
| Required Air Compressor Capacity | 20 CFM |
| Required Dust Collector Capacity | 6000 CMH |
| Required Dust Collector Power | 7.5 KW (10 HP) |
