CONIFOROUS-2SW4
Double Head Both Side Brushing Machine

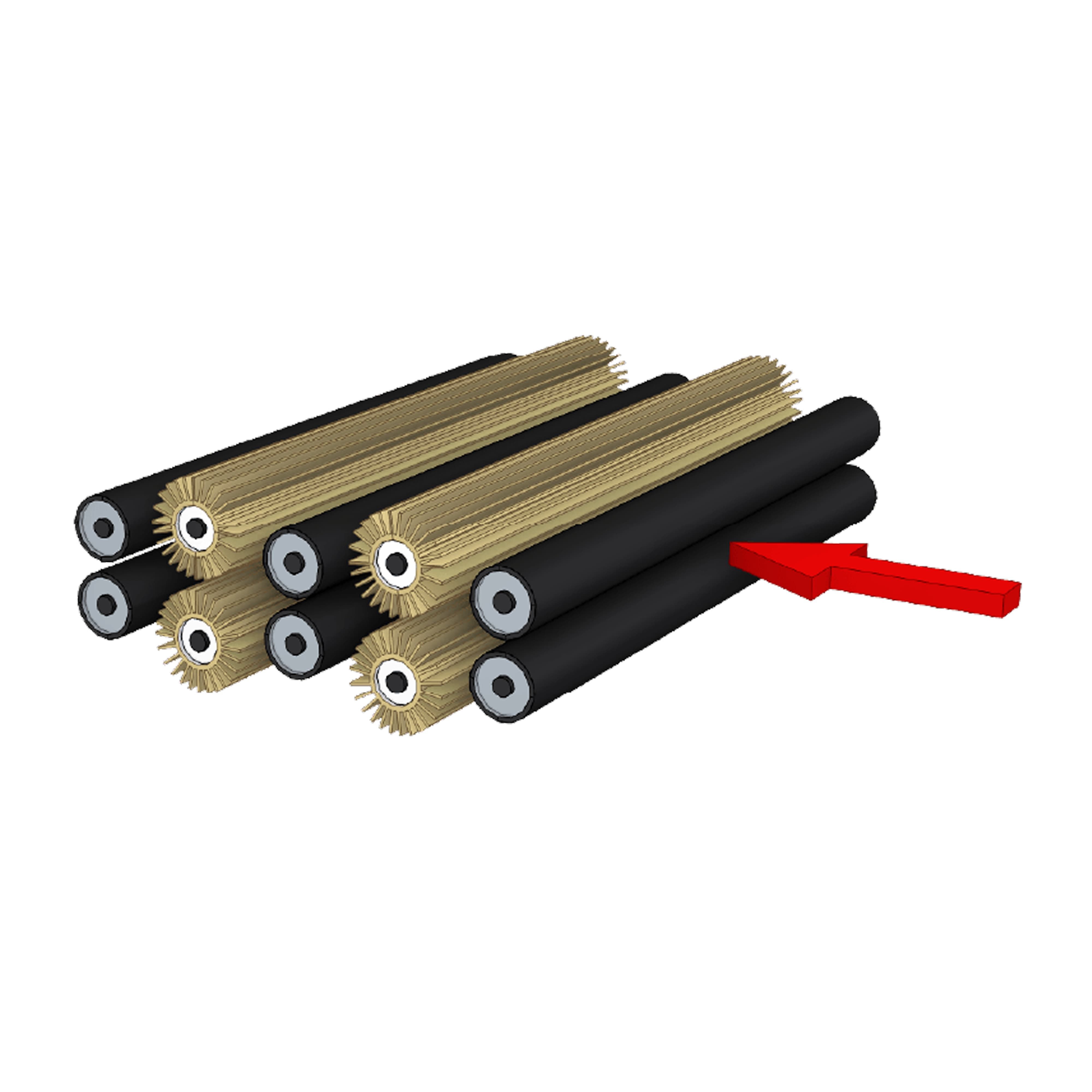

The Double Head Brushing Machine is designed for light sanding after the plywood dipping process. After the piece is initially sanded by a white belt sanding machine, it is dipped in a protective chemical coating. Once the chemical dries, a mild sanding is required to remove any residue and ensure a smooth finish. Traditionally, this step was done manually using steel wool, but the Double Head Brushing Machine automates this task with two top and two bottom brushes.
These brushes effectively clear dried chemical residue and color, resulting in a clean, fine surface. The machine is powered by 5 HP motors for each brush head and a 3 HP conveyor motor, totaling 23 HP. It is fully automated with a PLC and HMI system, providing efficient, one-touch operation for consistent, high-quality results.
Specific Features
- High-speed production capability for efficient throughput
- User-friendly PLC and HMI control system for easy operation
- Built-in safety for human and machine protection.
- Low running costs and minimal maintenance requirements
- Robust construction for long-term reliability and consistent performance
Application
This machine is ideal for plywood manufacturers looking to enhance the quality of their final products after chemical dipping. It effectively removes dried chemical residue, dust, and minor imperfections, resulting in a smooth, polished surface that is ready for further processing or immediate use. It is particularly suitable for high-volume production lines where speed, consistency, and surface quality are critical. In addition to plywood, this machine can be used for other wood-based panels, MDF, and particle boards, making it a versatile addition to any woodworking facility.
Market Expectation
The market demands machines that can produce high-quality finishes while maintaining low operational costs. In addition to removing chemical residue, manufacturers expect machines to deliver uniform, defect-free surfaces that enhance the aesthetic appeal and durability of the final product.
Our Solution
We provide a fully automated brushing machine that addresses all these market needs. Our solution is designed to ensure maximum uptime, minimal operational costs, and superior finishing quality. With a user-friendly PLC and HMI system, our machine is easy to operate and maintain, reducing the need for skilled labor. Additionally, we offer comprehensive after-sales support, including maintenance and troubleshooting services, to keep the machine in optimal working condition, ensuring long-term reliability and customer satisfaction.
Technical Specifications
| Working Thickness | 4-100 mm |
| Working Width | 200-1250 mm |
| No. of Heads | Four |
| Top and Bottom - Head 1 | Brushing with Brush Roller; 5 HP (3.7 KW) x 2 no. |
| Top and Bottom - Head 2 | Brushing with Brush Roller; 5 HP (3.7 KW) x 2 no. |
| Feeding Speed | 5-30 mpm |
| Feed Motor | 2 HP (1.5 KW) |
| Vertical Motion Motor | 1 HP (0.75 KW) |
| Total Power | 23 HP (17.15 KW) |
| Weight | 2200 Kg |
| Dimensions | 1700 X 1800 X 1950 mm |
