ELIXIR P15

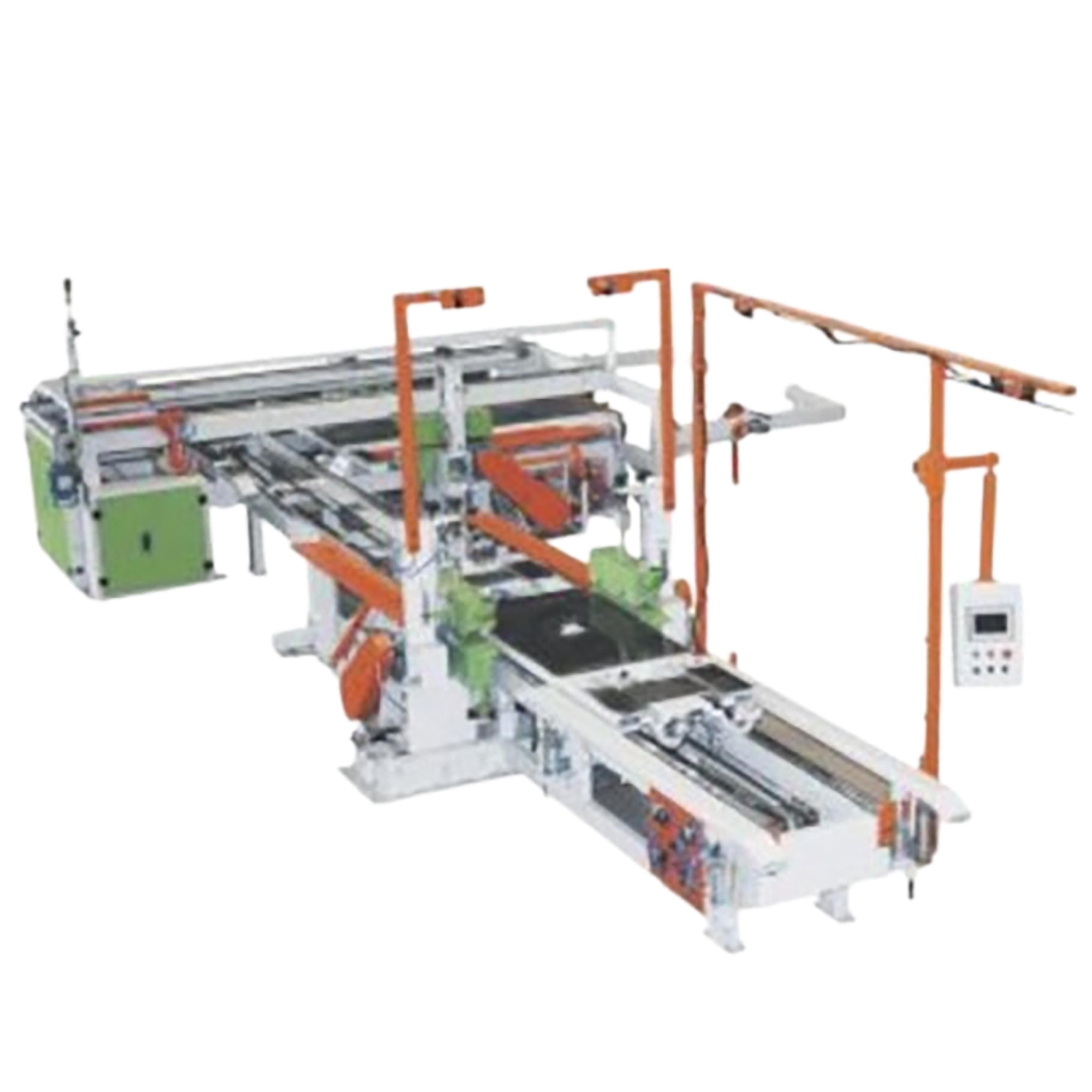

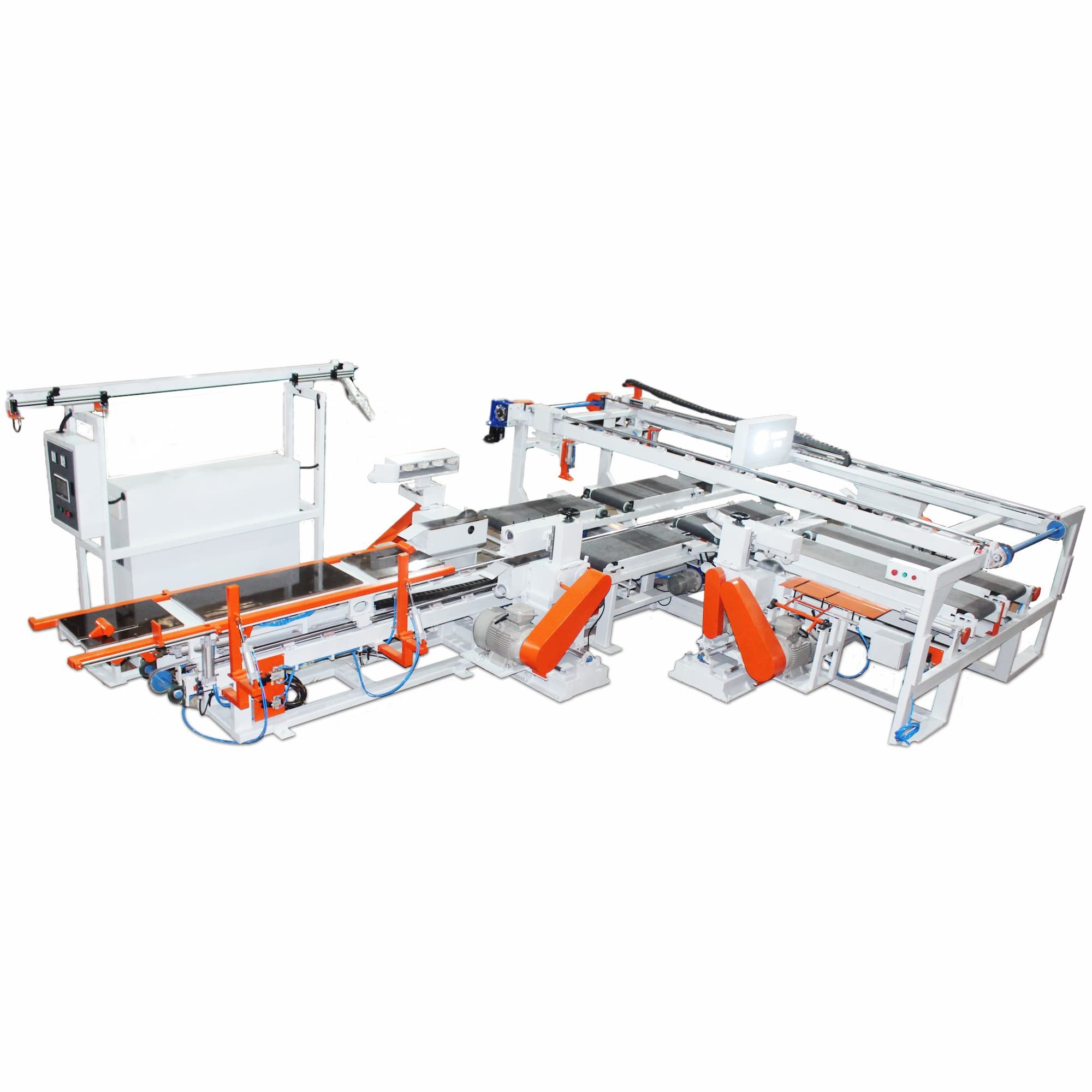

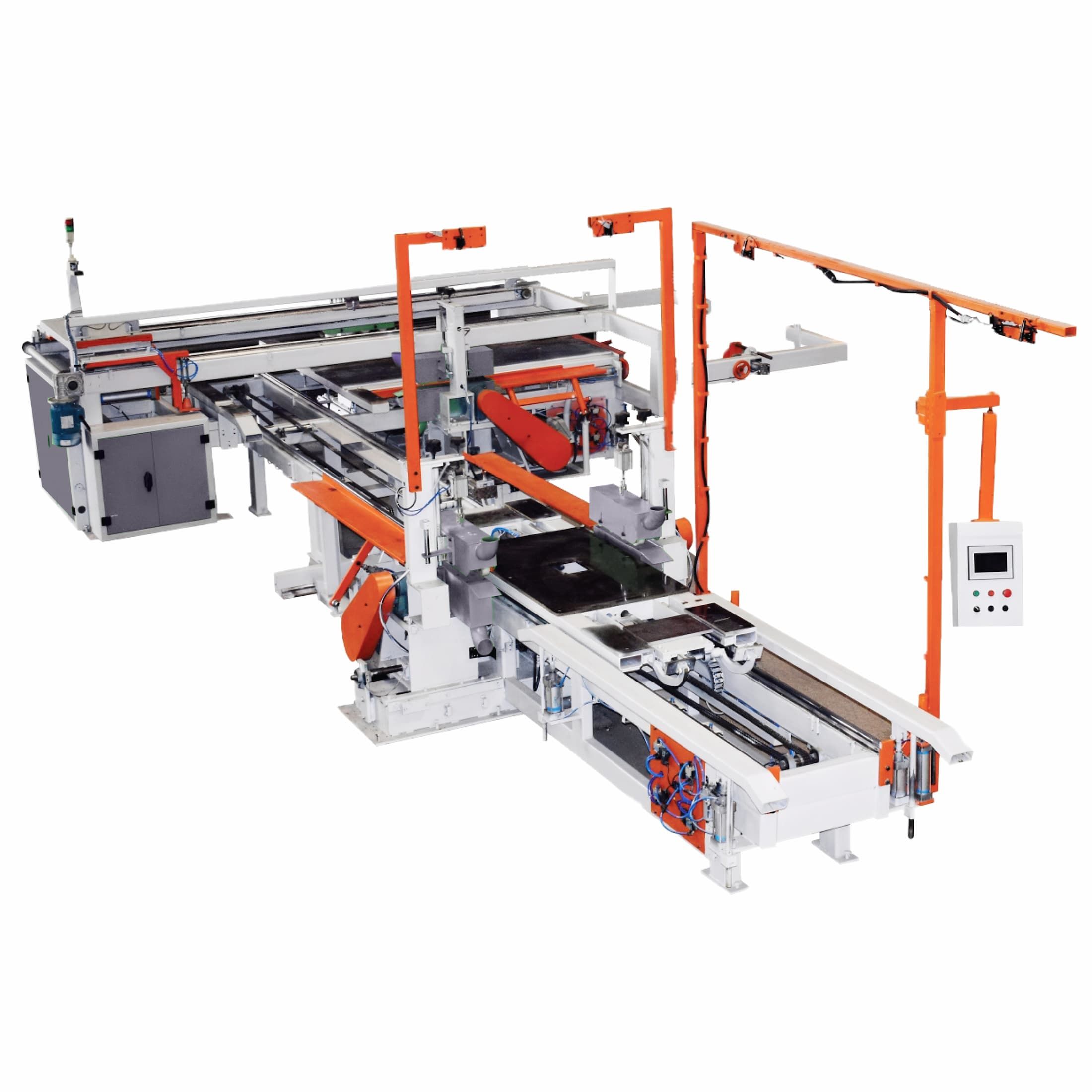

Automatic Edge Cutting Machine (With Motion Controller)
The Automatic Double Dimensional Saw is a high-precision machine engineered for fully automated trimming of panels on all four sides. It begins by trimming the panel along its longer side using high-speed blades rotating at 6000 RPM. Once the length-side trimming is complete, the panel is automatically rotated 90 degrees, allowing the head and tail ends to be precisely cut by two additional cutters.
The entire process—from panel loading to final trimming—is fully automated, eliminating the need for manual intervention. After trimming, the panel is transferred to a scissor lift via pneumatic pushers, where all edges are aligned for consistency.
The machine can handle panel thicknesses of up to 60 mm and supports multi-piece processing, allowing 10 pieces at 6 mm, 5 pieces at 12 mm, or 3 pieces at 19 mm to be trimmed simultaneously. Each cycle takes approximately 30 seconds, enabling two complete trimming cycles per minute, ensuring high productivity and precise panel sizing.
Specific Features
- High-speed cutting blades with 6000 RPM for precise trimming
- Automated 90-degree panel rotation for complete four-side trimming
- Pneumatic pushers for precise panel alignment on scissor lift
- Multi-piece processing for efficient, high-volume production
- Low power consumption through intelligent blade activation system
Application
This machine is essential for trimming panels after the hot pressing stage, ensuring precise sizing for further processing. It is widely used in the furniture, cabinetry, and modular panel manufacturing industries, where accurate panel dimensions are critical for high-quality final products.
Market Expectation
Manufacturers require machines that can deliver precise, right-angled cuts without compromising speed or efficiency. The demand is for equipment that reduces trimming costs while maintaining high output, minimal waste, and consistent quality.
Our Solution
We provide this machine as a comprehensive trimming solution, focused on delivering high production efficiency, precise cutting, and user-friendly operation. Our commitment to reliability is reinforced by 24/7 service support, ensuring smooth, uninterrupted operation. This combination of performance and support makes our machine a dependable choice for high-volume manufacturing.
Technical Specifications
| Longitudinal Saw Motor | 15 HP (11 KW) x 2 No. |
| Short Saw Motor | 15 HP (11 KW) x 2 No. |
| Propulsion Power | 3 HP (2.2 KW) x 2 No. Servo Motors |
| Scoring Cutting Power | 1 HP (0.75 KW) X 2No. |
| Cutter Speed | 6000 RPM |
| Working Size Range (Width wise) | 600 to 1300 mm |
| Working Size Range (Length wise) | 1500 to 2500 mm |
| Size Setting Power | 1.3 HP (1 KW) X 2No. Servo Motors |
| No. of Size Setting Laser | 4, with 400W Servo Motors |
| Range of Stroke | 1500 mm |
| Hydraulic Capacity | 4 Tonne |
| Lifting Table Power | 5 HP (3.7 KW) |
| Stack Frame at Exit | Pneumatic |
| Total Power | 75 HP (56 KW) |
| Installation Size | 6000 X 5000 X 1500 mm |
