Cross Belt Sanding Machine Explained: Features, Benefits, and FAQs

In modern modular furniture manufacturing, resin coatings have become essential to achieve a premium and luxurious finish. Coatings such as Polyurethane (PU) or Lacquer provide furniture surfaces with a smooth, glossy appearance while enhancing the natural grain or decorative pattern of the material.

However, even after coating and polishing, the surface may still contain minor undulations, dust particles, or irregularities. To achieve a perfectly smooth and refined finish, the surface is lightly sanded using fine-grit abrasive belts.

To address this requirement, we have developed the Cross Belt Sanding Machine for Furniture, designed specifically for precision sanding of coated surfaces.

In this article, we answer some of the most important and frequently asked questions about Cross Belt Sanding Machines and their role in modern furniture finishing.

---

What is the role of the cross-belt arrangement (third head) in this sanding machine, when conventional plywood sanding usually requires only two heads?

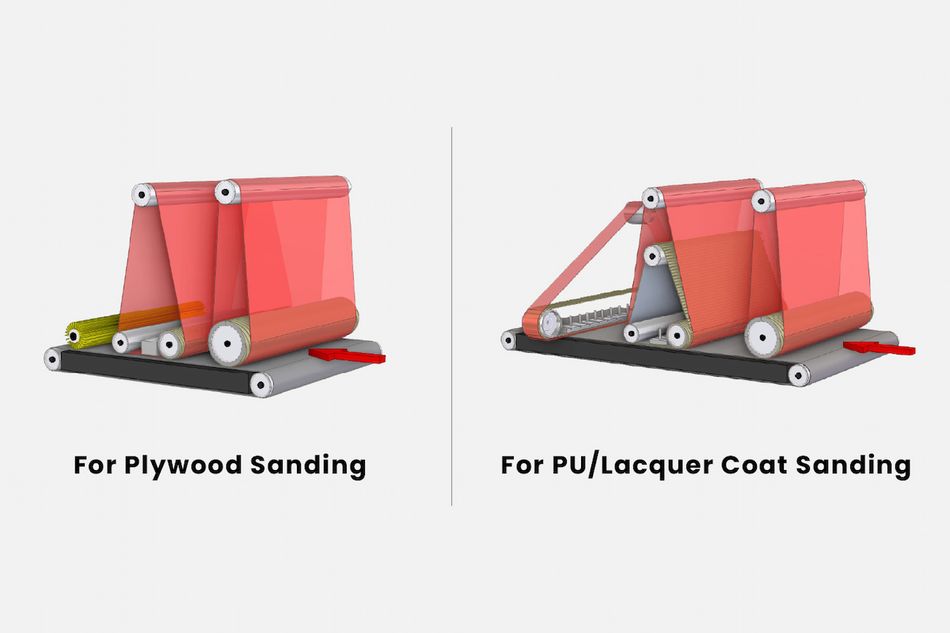

Refer to the diagram below. The left side shows the roller configuration used for plywood sanding, while the right side illustrates the configuration used for sanding the coated surfaces.

The third head, arranged in a cross-belt configuration, is essential because when the coated panel passes through the first two sanding heads, minor sanding marks may appear along the direction of conveyor movement. To eliminate these marks and achieve a uniform surface finish, sanding is performed in a direction perpendicular to the conveyor movement. The cross-belt arrangement ensures effective removal of these linear marks, resulting in a smoother and more refined surface.

---

In this machine, segmented pads are used. What are they and what is the benefit of it?

The second and third heads in the Cross Belt Sanding Machine are designed to perform light sanding on the coated surface of the panel. For this purpose, a pressure pad is used to apply controlled pressure on the sanding belt, which helps achieve a smooth and polished surface finish.

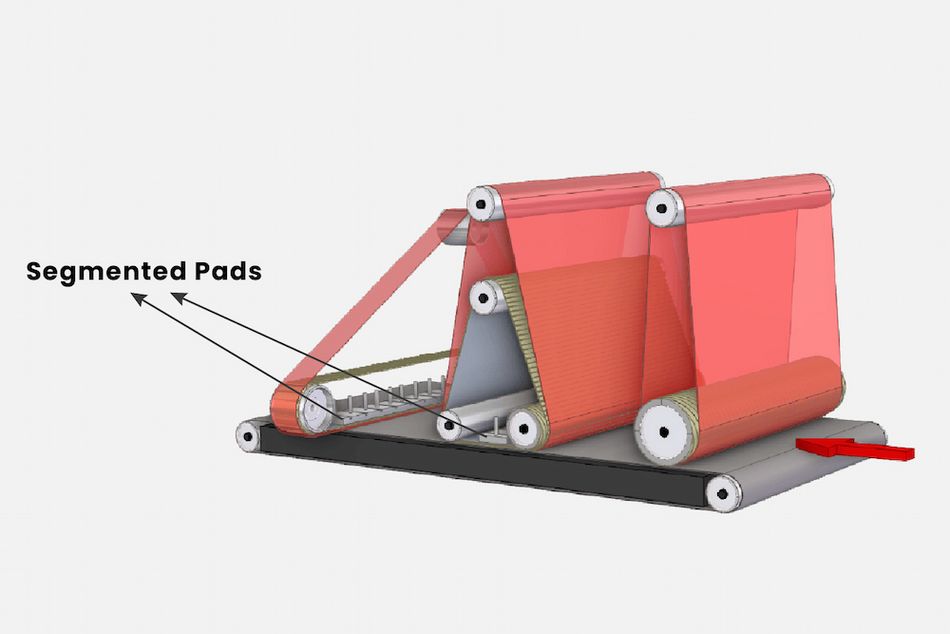

This pressure pad is not a single continuous unit. Instead, it is designed as a segmented pad, meaning that it is composed of multiple smaller pad sections rather than one large pad.

Panels fed into the machine may vary in width, with the maximum width typically reaching up to 4 feet. Because the incoming panels can have different widths, it is essential that the sanding pressure is applied only within the panel area and not beyond it. If pressure is applied outside the panel region, the panel edges may experience excessive sanding or edge cutting, which can damage the look and feel of the panel.

To prevent this issue, segmented pads are used. The machine’s automation system detects the width of the incoming panel and activates only those pad segments that correspond to the panel width. As a result, pressure is applied precisely where required, ensuring uniform sanding while protecting the panel edges from unnecessary cutting.

---

What types and grit sizes of abrasive belts are used on sanding head of this machine?

For Cross Belt, abrasive belts with a paper backing are used. Since the objective is to sand a coated surface, finer abrasive belts with higher grit values are required to achieve a smooth and refined finish.

Typically, in a Cross Belt Sanding Machine, abrasive belts with grit sizes ranging from 600 to 2000 are used. These finer grits help remove minor surface imperfections while maintaining the integrity of the coating and enhancing the overall surface quality.

---

What is chevron belt and what is the role of that in this machine?

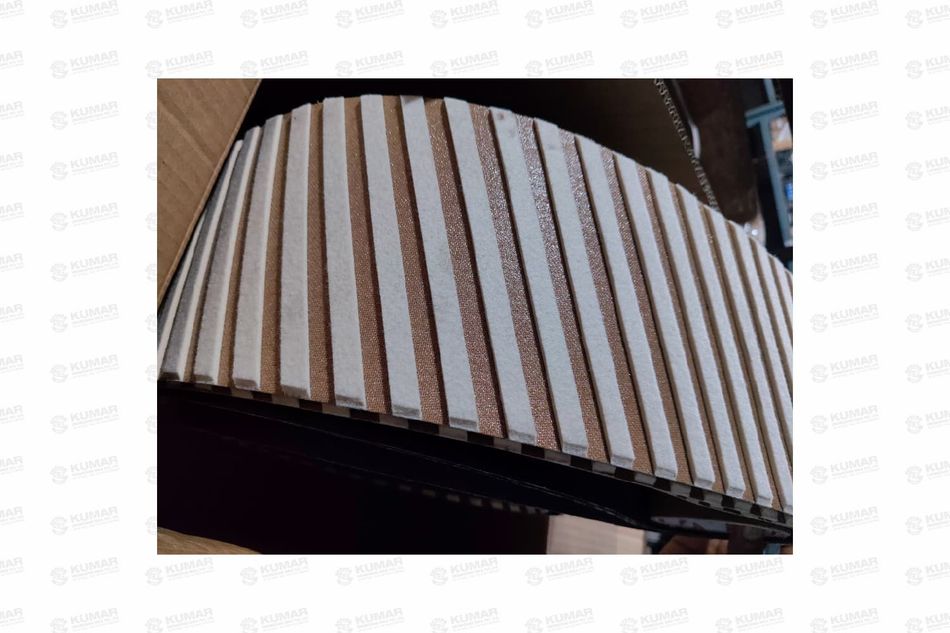

The Cross Belt Sanding Machine uses abrasive belts with a paper backing, which can be susceptible to tearing if operated at high speeds. To protect these belts and ensure smooth operation, an additional belt known as a Chevron belt is used.

The Chevron belt acts as a supporting and driving belt, allowing the abrasive belt to run safely at higher speeds while maintaining stability. This arrangement helps prevent belt breakage and ensures consistent sanding performance on coated surfaces.

---

What panel size range can be accommodated by the cross belt sanding machine?

The Cross Belt Sanding Machine is capable of processing panels with thickness ranging from 2 to 100 mm and widths between 100 and 1250 mm.

---

How much power is consumed by this machine?

For detailed information on the power distribution and overall power consumed by the machine (and for information on accessories such as dust collector or air-compressor), please refer to the tech specs on its product page.
