Plywood, in simple terms, is manufactured by bonding multiple thin cross-grain veneer sheets
coated with adhesive and pressing them together using cold-press and hot-press machines. This
construction provides the board with strength, rigidity, and dimensional stability.
However, for practical and commercial applications, the value of plywood is not determined by
bonding alone. Surface finish and thickness consistency play a decisive role in defining the
quality of the final product. Even a well-pressed board may fall short of expectations if it
is uneven, rough, or inconsistent in thickness.

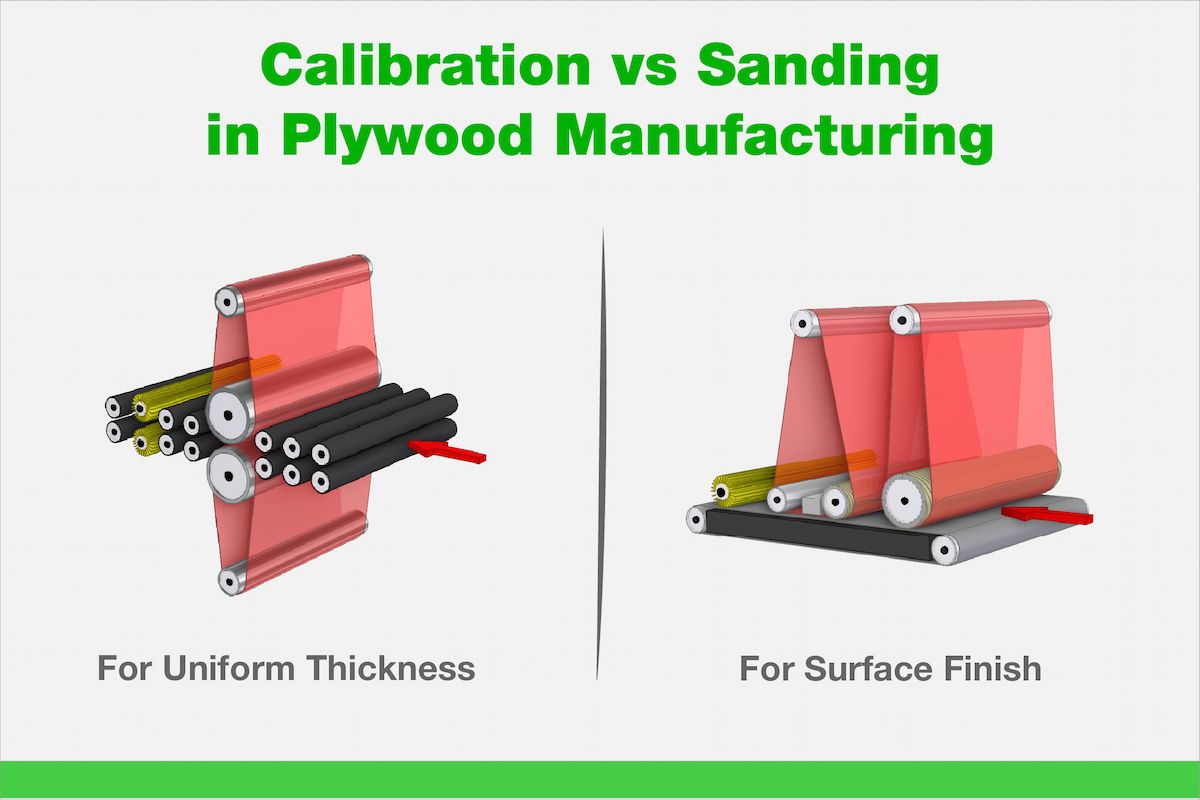

This is where Calibration and Sanding become critical stages in the production process.
Although these two processes are often mentioned together, they serve distinct and essential
functions within the manufacturing line.
Note :For complete information on how plywood is made, please refer the following article
series -
How is Plywood made : The Full Process Explained | Part-1
What is Plywood Calibration?
Calibration is the process of bringing plywood boards to a uniform and precise thickness
across their entire surface.
After the pressing stage, panels (commonly referred to as mat ply) may exhibit slight thickness
variations. These deviations can result from uneven glue spread, natural veneer density differences, moisture variation,
or press parameters. Although these variations may appear minor, they can lead to significant issues in downstream applications
such as lamination, edge-banding, CNC routing, and furniture assembly.
Calibration eliminates these irregularities, ensuring dimensional accuracy, structural consistency,
and a reliable base for further finishing operations.
The machine for the calibration process utilizes heavy-duty contact rollers—typically made of
steel or hard chrome—along with coarse abrasive belts to remove excess material and
level the board uniformly.
Note :The primary objective of Calibration is not surface finishing, but precise
thickness control and dimensional accuracy.
Note :Typically, a calibration machine is capable of removing up to 1 mm of material
in a single pass.
What is Sanding?
Once the mat ply is calibrated to achieve uniform thickness, the face veneer is applied,
and the assembled panel is subjected to cold pressing followed by hot pressing to ensure
proper bonding.
The face veneer is typically very thin (approximately 0.2 mm to 1.0 mm), delicate, and
relatively expensive. It is applied primarily to provide the plywood with its final
decorative appearance and aesthetic value.
To enhance the surface quality and bring out the natural texture and gloss of the face veneer,
a sanding process is carried out. Unlike calibration, sanding focuses on improving surface
finish rather than controlling thickness . It removes minor surface imperfections, press marks,
and irregularities, resulting in a smooth, refined, and ready-to-finish surface.
Earlier, drum sanding machines were commonly used for surface finishing. However, nowadays,
wide belt sanding machines are preferred due to their superior consistency,
higher productivity, and better surface quality.
In this process, sanding is carried out using rubber-coated rollers in combination with
finer abrasive belts. The elastic nature of the rubber rollers ensures uniform pressure
distribution across the panel surface, while the finer grit belts help achieve a smooth,
refined finish without damaging the delicate face veneer.
A typical configuration may include:
- First head: Medium grit for leveling
- Second head: Fine grit for smoothing using combi systems system
The result is a clean, uniform surface with consistent scratch patterns—ideal for
decorative laminates, veneers, or coatings.
Note :As sanding focuses on surface refinement rather than thickness control, it can
be applied directly to a calibrated mat ply even without a face veneer. The
process will improve smoothness and remove minor surface irregularities on mat
ply, though it will not enhance decorative appearance.
Why Both Are Necessary?
Using only sanding without proper calibration can lead to:
- Thickness variation
- Poor lamination quality
- Uneven furniture joints
- Increased rejection rates
On the other hand, calibration without proper sanding leaves the board dimensionally
correct but visually and tactually incomplete.
A modern plywood line integrates both processes:
- Calibration ensures dimensional accuracy
- Sanding delivers surface perfection
Together, they transform raw pressed boards into premium, production-ready panels.
The Industrial Advantage
With the growing demand from modular furniture and door industries, manufacturers can no
longer rely on manual or basic finishing methods. Automated calibrating and sanding systems provide:
- Higher throughput
- Reduced material wastage
- Consistent quality across batches
- Better lamination and finishing results
- Lower dependency on manual skill
In today’s competitive market, surface quality is not a luxury—it is a standard. Calibration and Sanding are no
longer optional stages; they are the foundation of reliable, high-grade plywood production. A well-engineered
sanding and calibrating line ensures that every panel leaving the factory meets the expectations of
modern manufacturing—flat, accurate, and ready for perfection.
